Figure 5

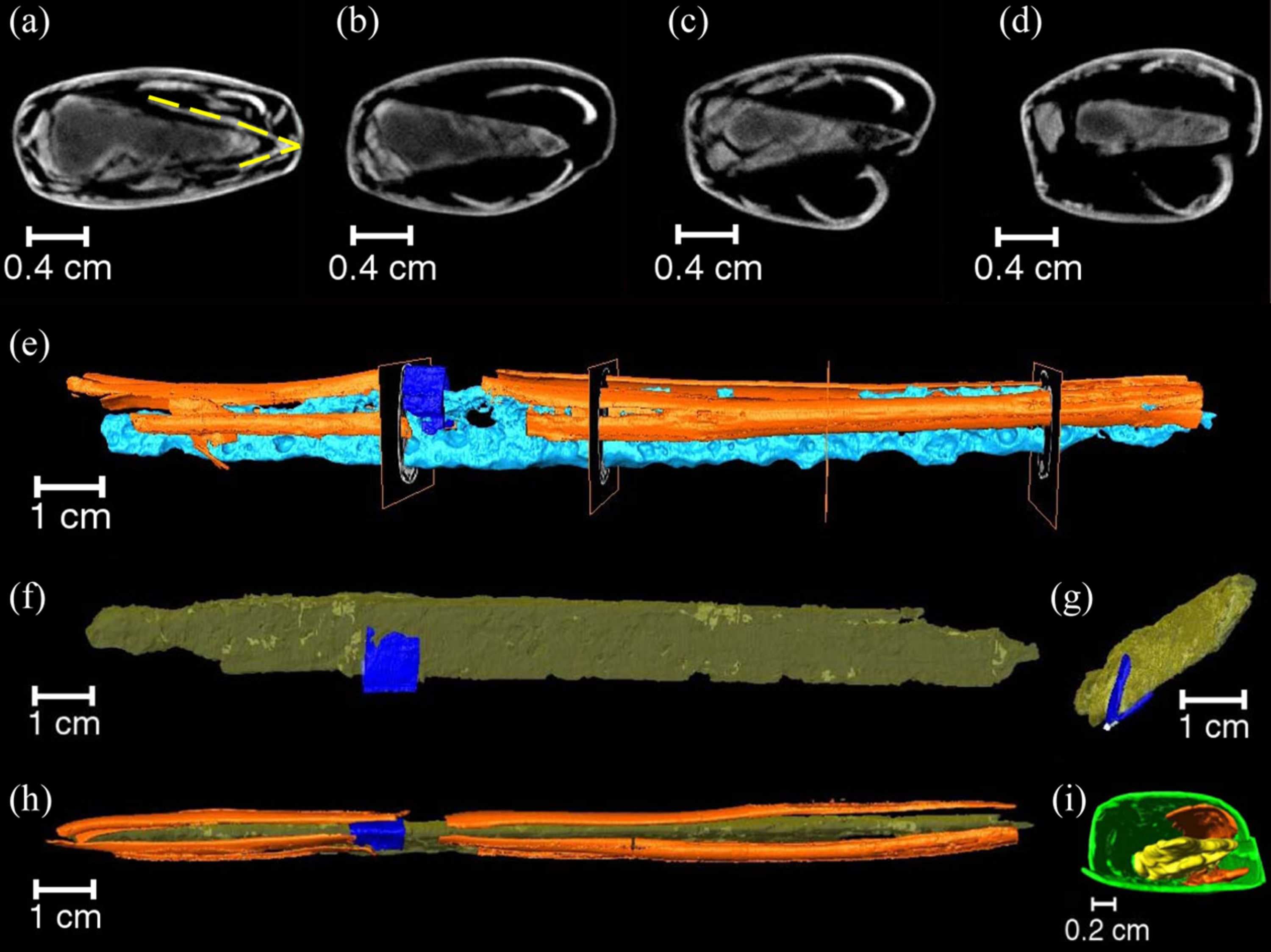

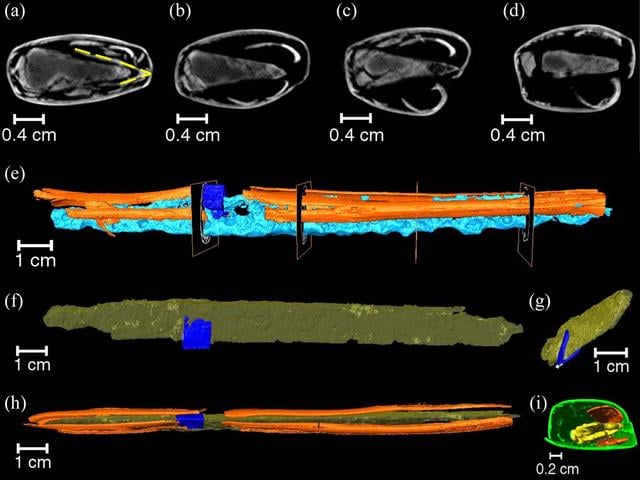

(a)–(d) Four neutron slices of the knife at different positions. (e) Three-dimensional rendering of the V-shaped slot, C-shaped structures and uncorroded knife, and the relative positions of the slices through the knife. (f) Three-dimensional rendering of the V-shaped slot and the knife (transparent); the V-shaped slot is located on the cutting-edge side for fixing the knife. (g) Another view similar to (f), observed from the knife tip. (h) Three-dimensional rendering of the V-shaped slot, the C-shaped structure and the knife (transparent), viewed from the cutting-edge direction. (i) Relative positions of the detached C-shaped structure, scabbard and knife, observed from the knife tip.
