![[Figure 2]](chn5001fig2mag.jpg)
|
|

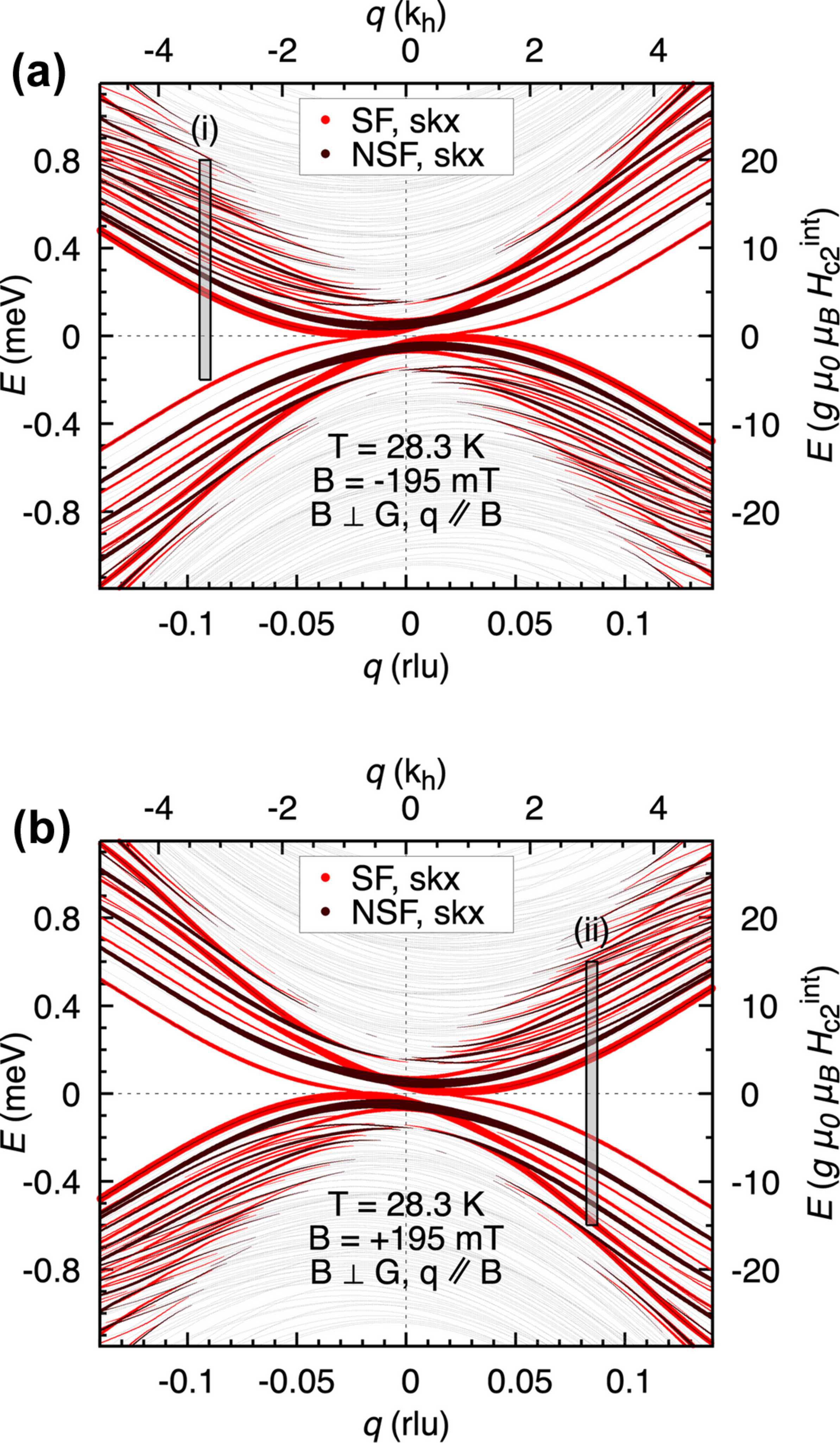

Figure 2
Calculations using our previously developed linear spin-wave model (Garst et al., 2017  ; Waizner, 2016; Weber et al., 2022) for the skyrmion order at 28.3 K. The plots show the magnon modes propagating along  . Spin-flip (SF) and non-spin-flip (NSF) components of the scattering cross sections are depicted as red and black curves, respectively. The experiment itself was unpolarized, summing the NSF and SF channels. The thickness of the lines symbolizes the spectral weights of the modes. The grey bars labelled (i) and (ii) mark the positions of the scans in Fig. 3. Panels (a) and (b) depict the dispersion for  and  , respectively. |
![[Figure 2]](chn5001fig2.jpg)
