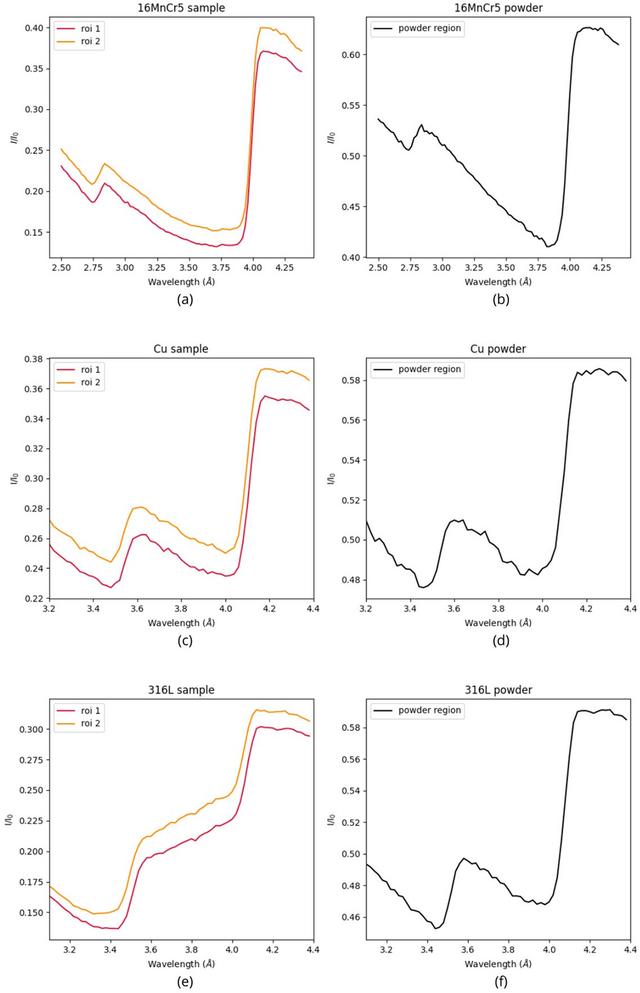

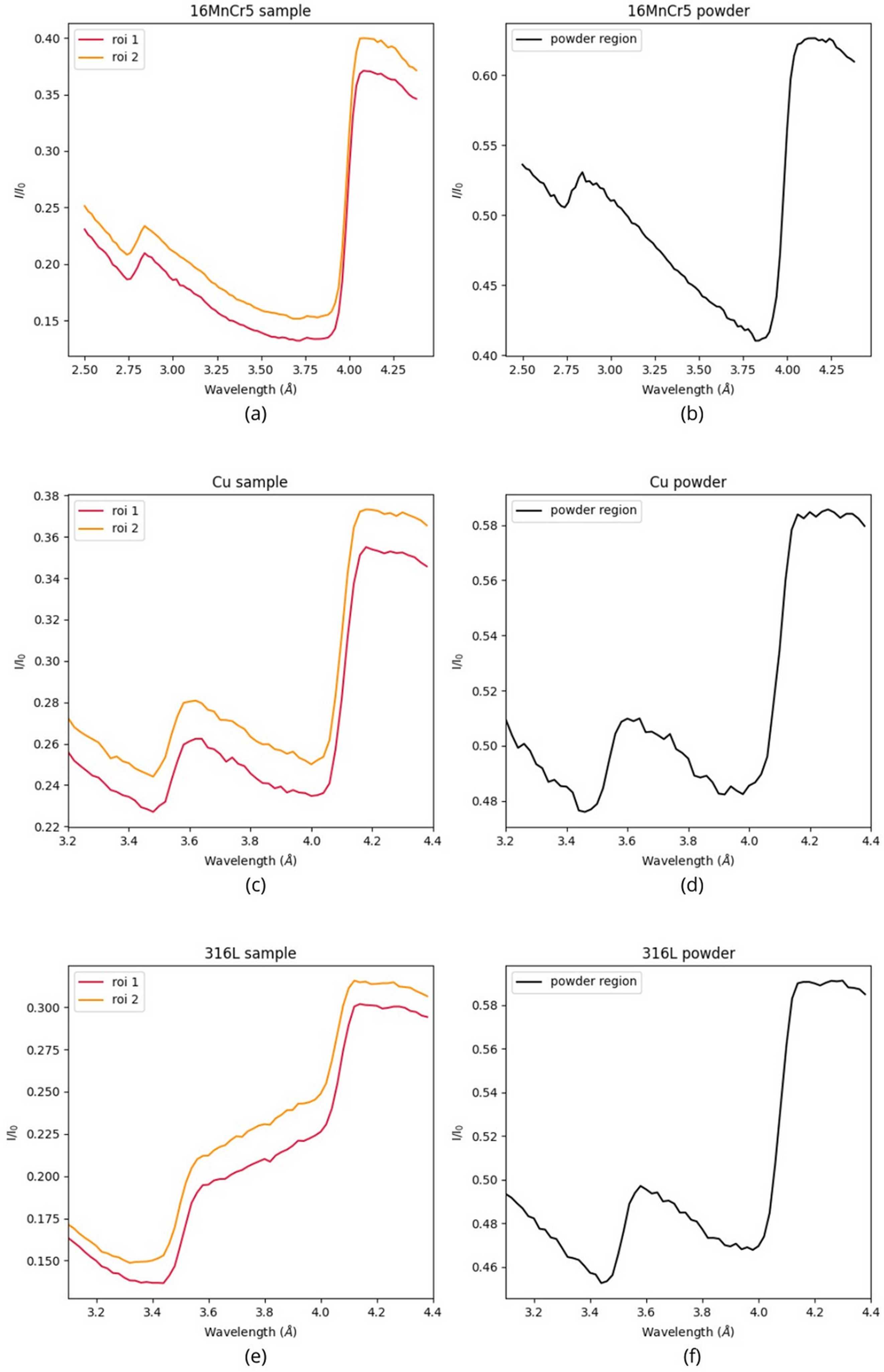

Figure 17
Sample (a), (c), (e) and powder (b), (d), (f) transmission spectra for the three materials. For improved presentation, the orange spectrum has been shifted vertically by 0.02. Due to the different thicknesses of the sample and powder, for clarity the transmission reported on the y axis has a different scale in the two cases. The regions between two different Bragg edges have a different slope in the sample and in the powder. This effect is very pronounced in the case of the austenitic steel 316L (e), (f).
