Neutron reflectometry instrumentation at the ISIS source: current state

Campana, M.; Caruana, A.; Clifton, L.; Hall, S.; Hughes, A.; Kinane, C.; Skoda, M.; Tomchuk, O.; Webster, J.

doi:10.1107/S1600576726000397

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

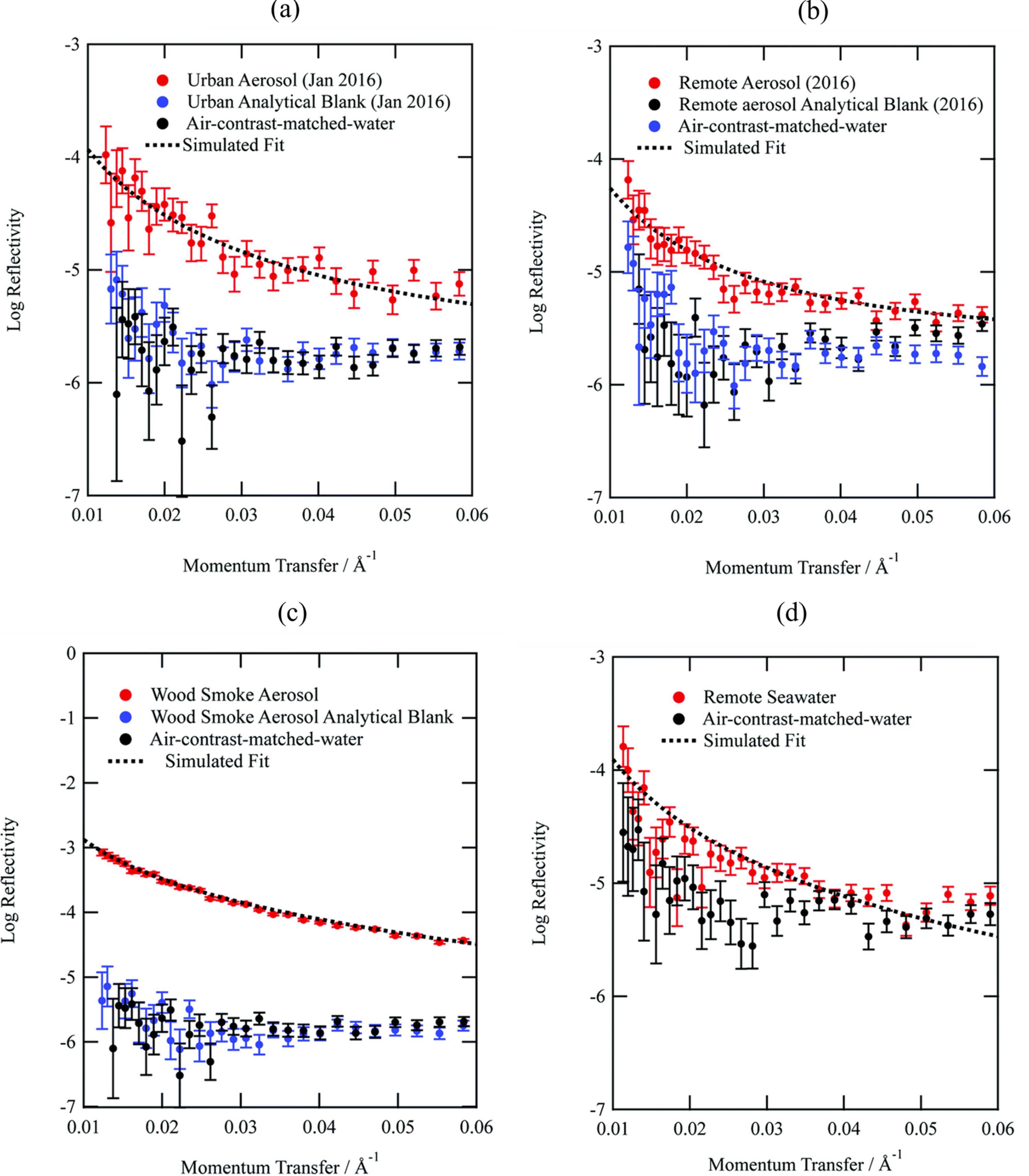

Figure 8
Neutron reflectivity profiles for organic films extracted from (a) urban, (b) remote, (c) wood smoke and (d) remote seawater on an air–water interface (red). Also included are the neutron reflectivity profiles for a bare interface (black) and the analytical filter blanks (blue). The figure demonstrates that the analytical blanks are indistinguishable from the bare air–water interface and the samples extracted from the aerosol filter are clearly distinguishable from the bare interface and analytical blanks. The remote seawater sample and bare surface (d) were recorded separately from the aerosol samples and their corresponding bare surfaces (a–c). Reproduced from Shepherd et al. (2022
