![[Figure 2]](in5112fig2mag.jpg)
|
|
Figure 2

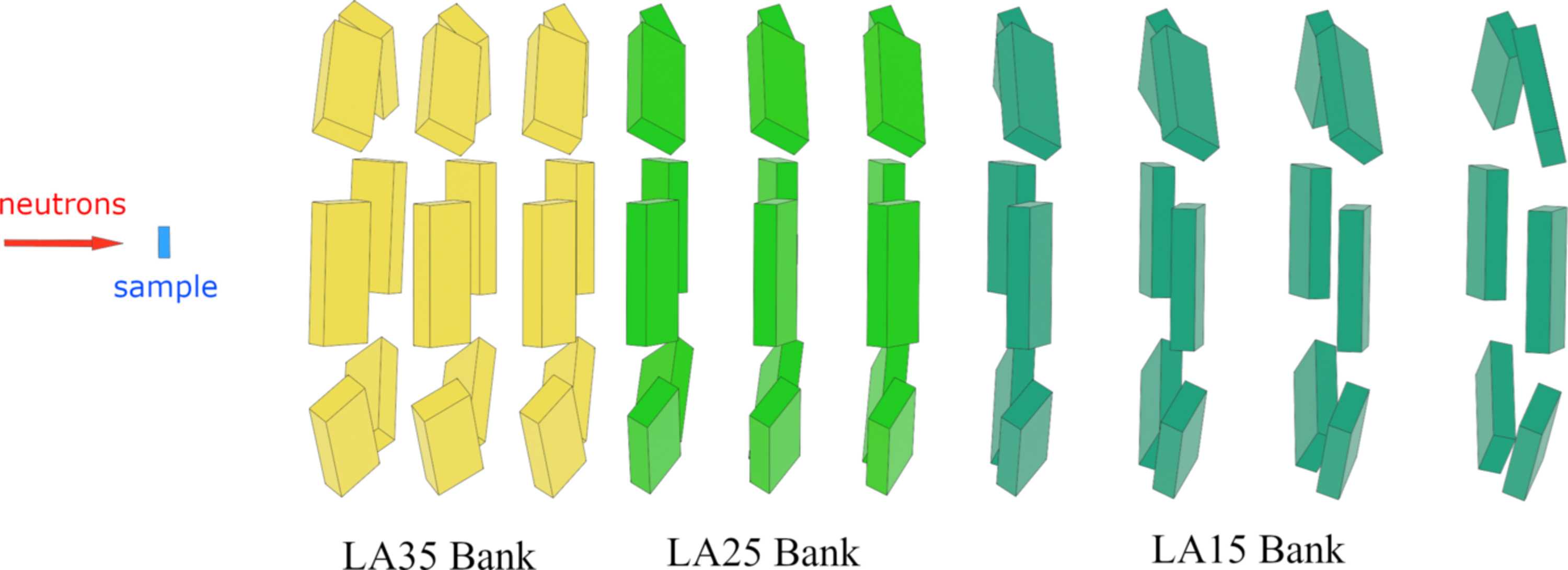

A sketch of the low-angle bank of the TOF diffractometer, iMATERIA. The left side of the figure is the upstream side from which neutrons come after being scattered from the sample. Each rectangular box represents a detector unit. The detectors are mounted on a surface upstream of the detector unit and are positioned so that they do not shadow each other relative to the sample. The figure is divided vertically into ten columns, and the detector units within each column are positioned such that the scattering angle from the sample is equal. The first three columns from the upstream side are grouped as the LA35 bank, the next three columns as the LA25 bank and the remaining four columns as the LA15 bank. The data are summed using time-focusing techniques at each bank. |
