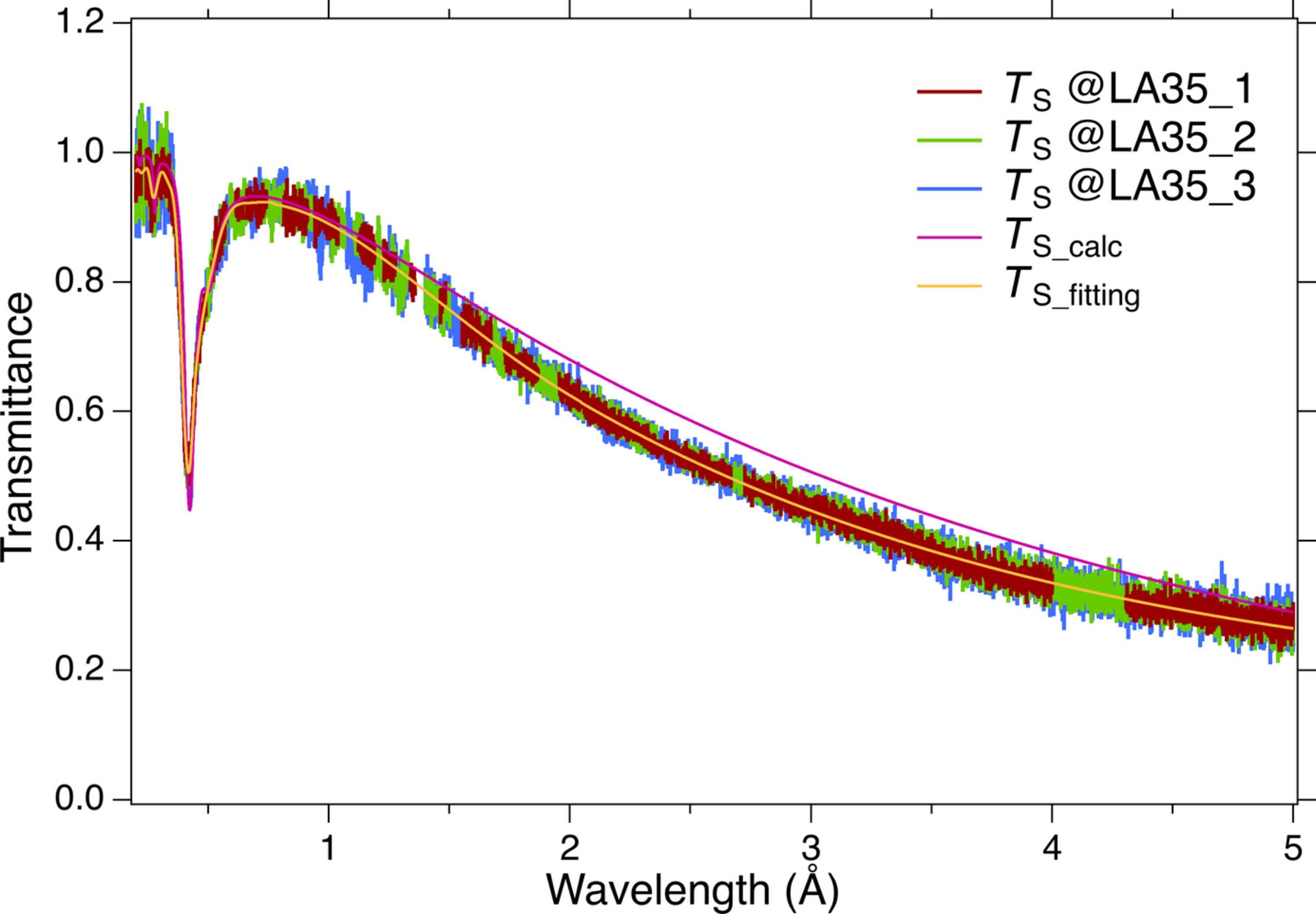

Figure 6
Wavelength dependence of the sample transmittance. Noise due to Bragg peaks has been removed. The TS_calc(λ) curve is the calculated transmittance from the absorption cross section of Fig. 1[link], assuming the sample thickness is 0.045 cm. The TS_fitting(λ) curve is a curve fitted to reproduce the measured data, TS(λ), at each detector unit of the LA35 bank. Here, LA35_1, LA35_2 and LA35_3 correspond to the first, second and third columns from the upstream side of the six detector units in the LA35 bank of Fig. 2[link], respectively.
