Figure 7

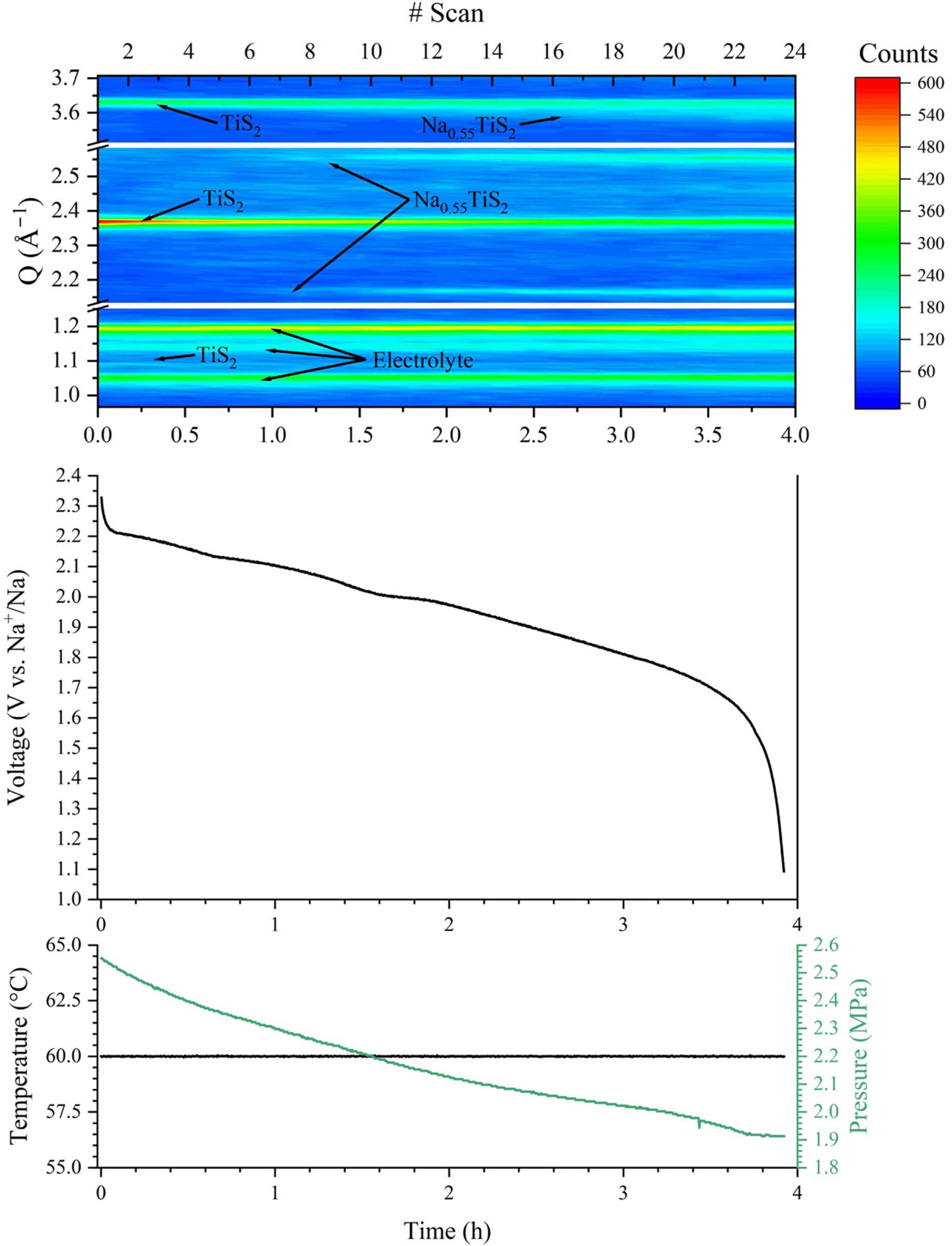

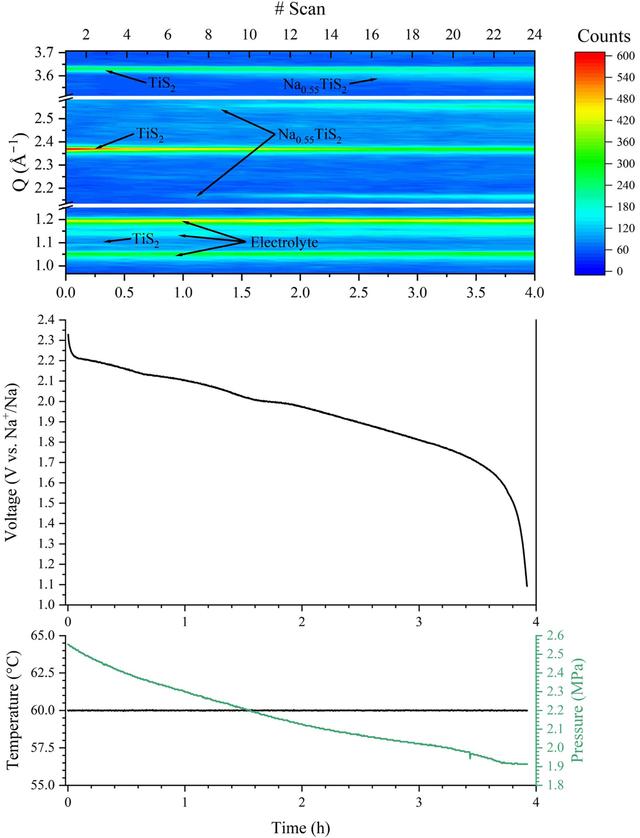

Contour plot of the collected in-house PXRD data of a Na|Na(CB8H9)0.04(CB9H10)0.96|TiS2 cell and the corresponding galvanostatic discharge data collected between 2.3 and 1.1 V. The cell was run with a C-rate of C/15. The bottom plot shows the temperature of the cell along with the measured pressure. An APTOX-Pmon cell was used.
