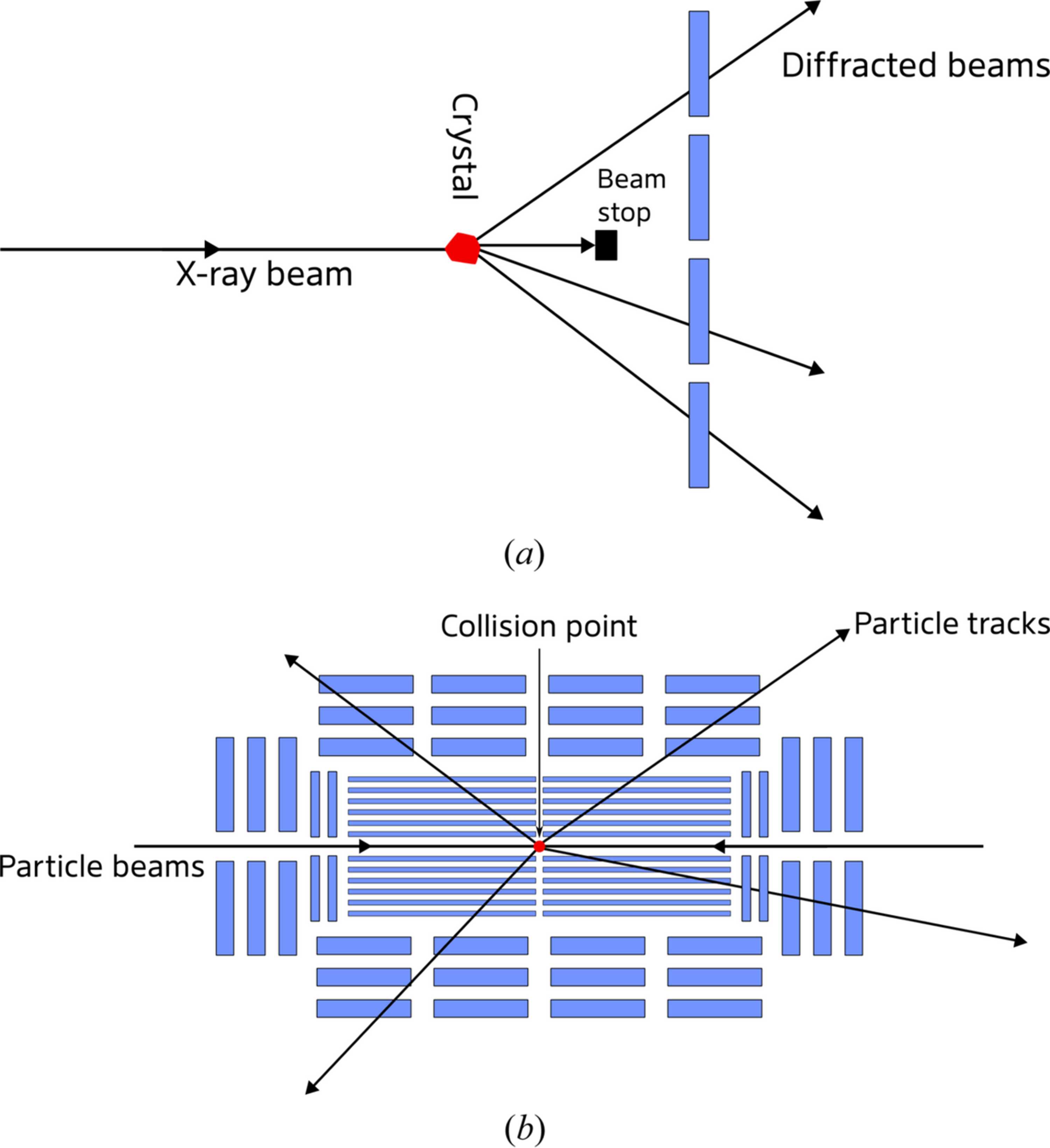

Figure 1
Schematic diagram comparison of (a) diffracted beams in a crystallography experiment with (b) particle tracks in a HEP experiment. Blue rectangles represent two-dimensional pixel detector panels oriented perpendicular to the plane of the diagram. In the case of the particle detector, the panels are arranged in a cylindrical pattern around the direction of the colliding particle beams.
