Figure 4

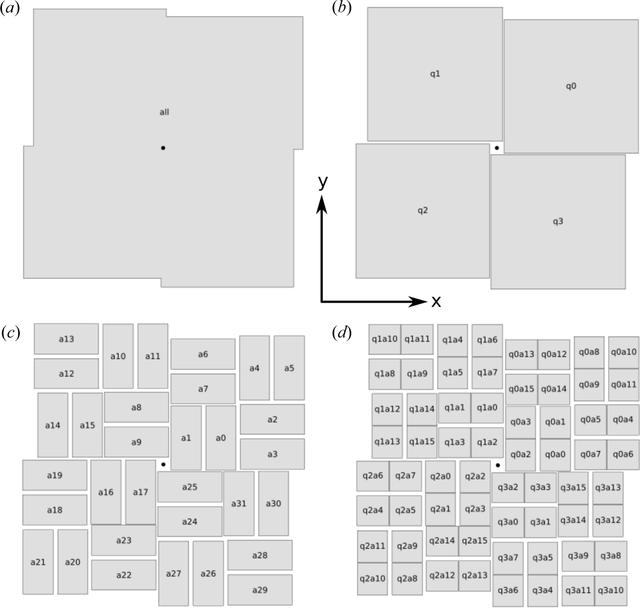

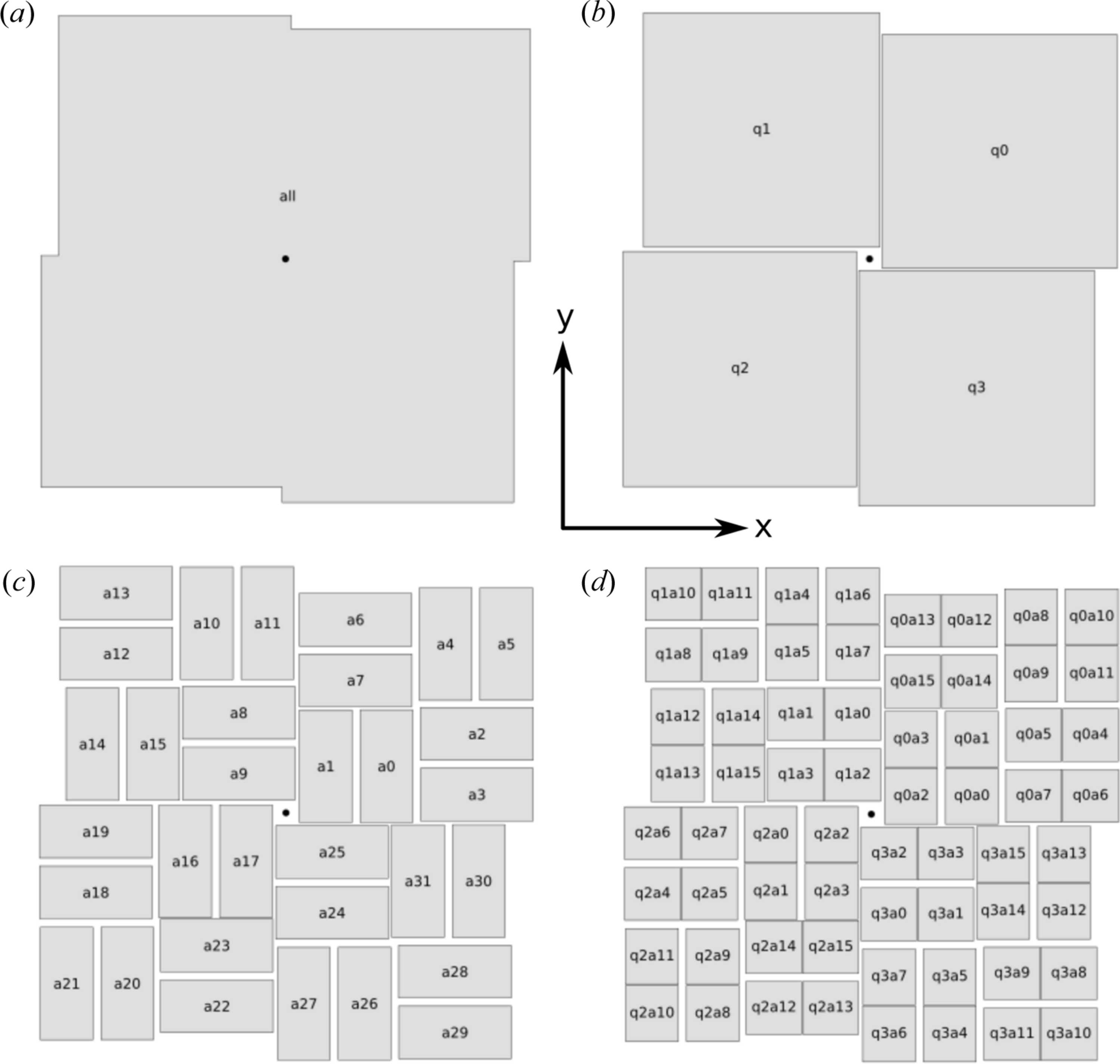

Schematic diagram of CSPAD represented at different levels of hierarchy: (a) level zero, as a single rigid unit; (b) level one, as four quadrants that can move independently of one another; (c) level two, as 32 silicon sensor chips; and (d) level three, as 64 readout chips. The coordinate system is shown at the center of the diagram, with the positive z axis, which is the beam direction, completing a right-handed coordinate system out of the plane. The approximate beam position is indicated by the black dot at the middle of each diagram.
