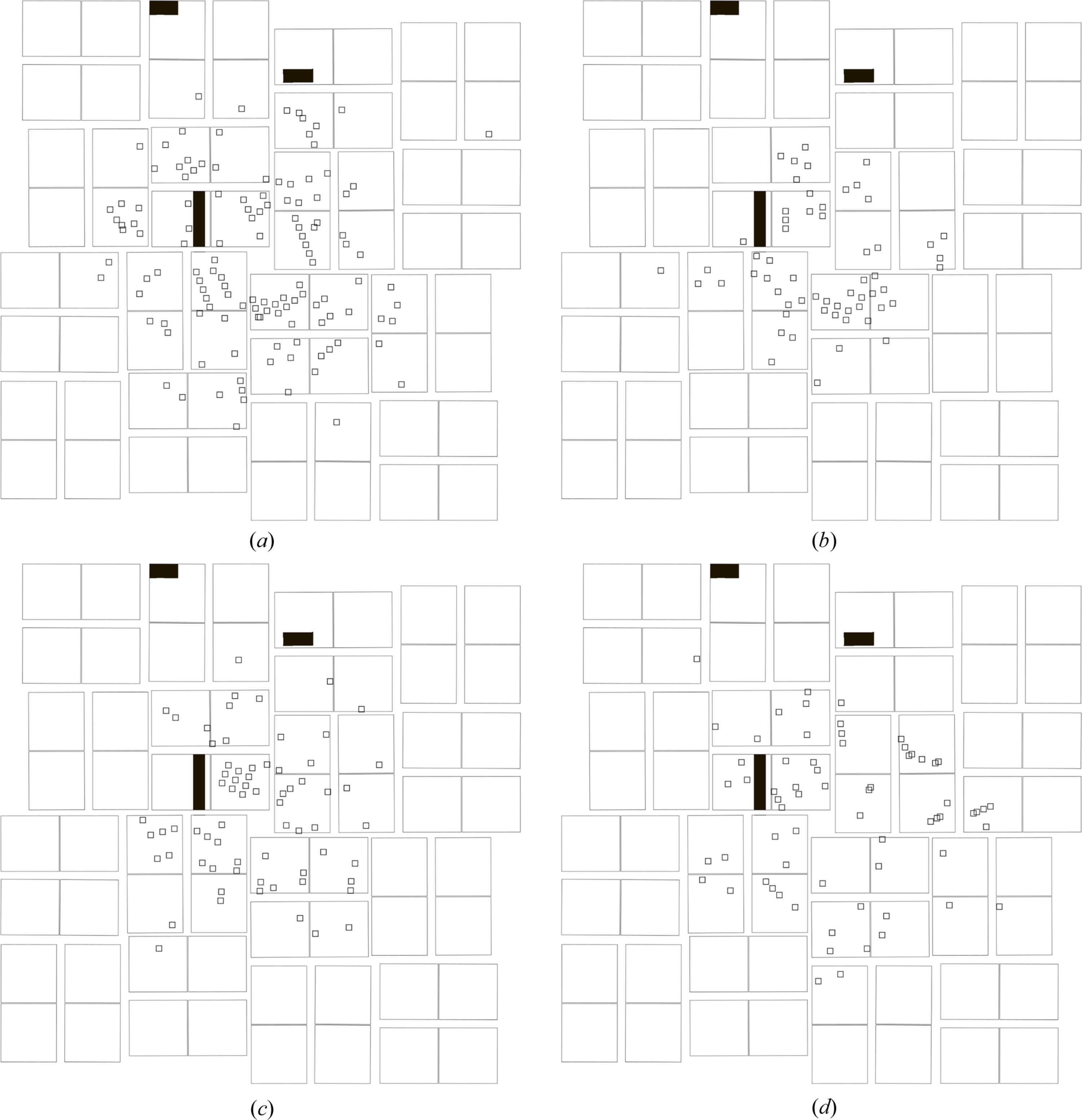

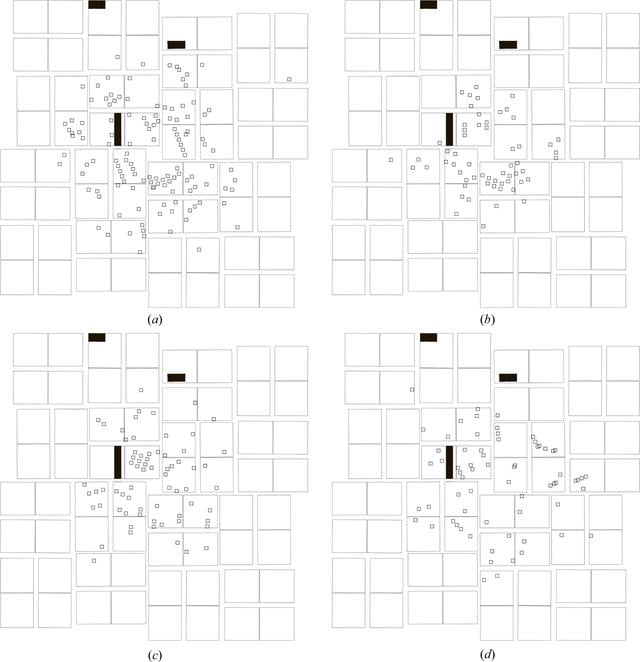

Figure 5
Geometrical views of representative diffraction patterns from human serotonin receptor 5-HT2B, in complex with ergotamine. The panel edges are shown corresponding to Fig. 4[link], and peak locations from the peak search are marked with small squares. Filled black regions were marked as untrusted due to defective pixels.
