Figure 1

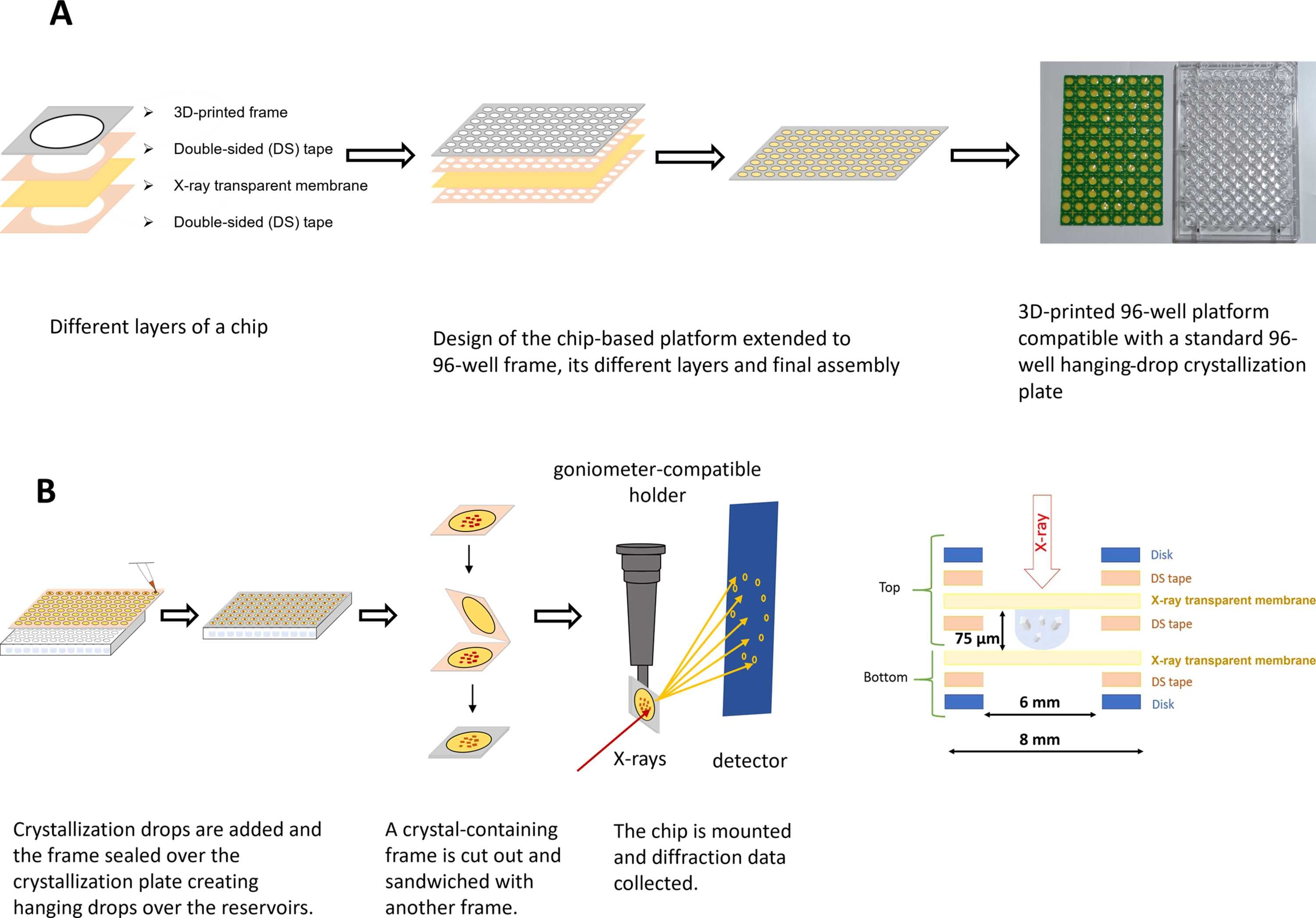

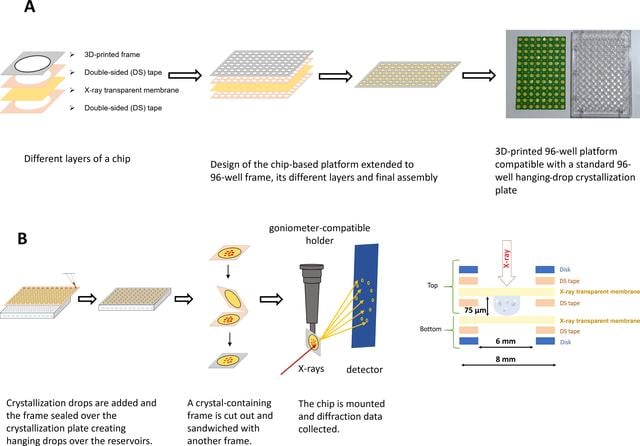

Design and use of the fixed-target device. (A) Design, development and fabrication of the platform consisting of a 3D-printed frame (with disk), which is assembled with double-sided tape, and an X-ray-transparent membrane. (B) Illustration showing the use of the platform for high-throughput hanging-drop crystallization, assembly of a crystal-containing chip and sample delivery in front of the X-ray beam using a goniometer-compatible holder for diffraction data collection. The design results in a path length of 75 µm for the X-ray beam through the crystals in the enclosed chip.

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 59| Part 2| April 2026| Pages 303-315
https://doi.org/10.1107/S1600576725011513
