Figure 2

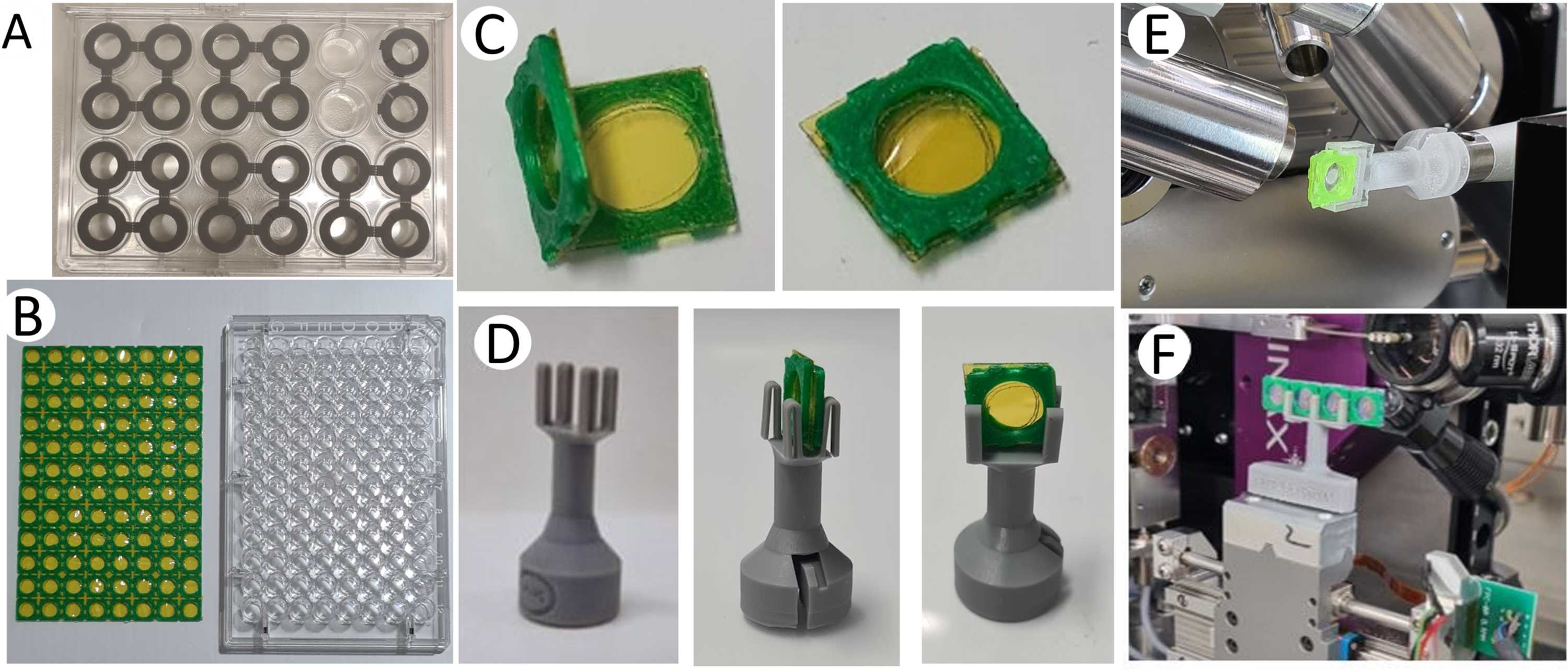

Design and assembly of the chip. (A) The 24-well design of the chip. (B) The 96-well design with a top frame next to a crystallization plate. (C) Chip assembly. (D) The chip holder with and without the chip inserted. (E) The chip mounted on the goniometer. (F) Multiple chips mounted on the goniometer. |
