Figure 5

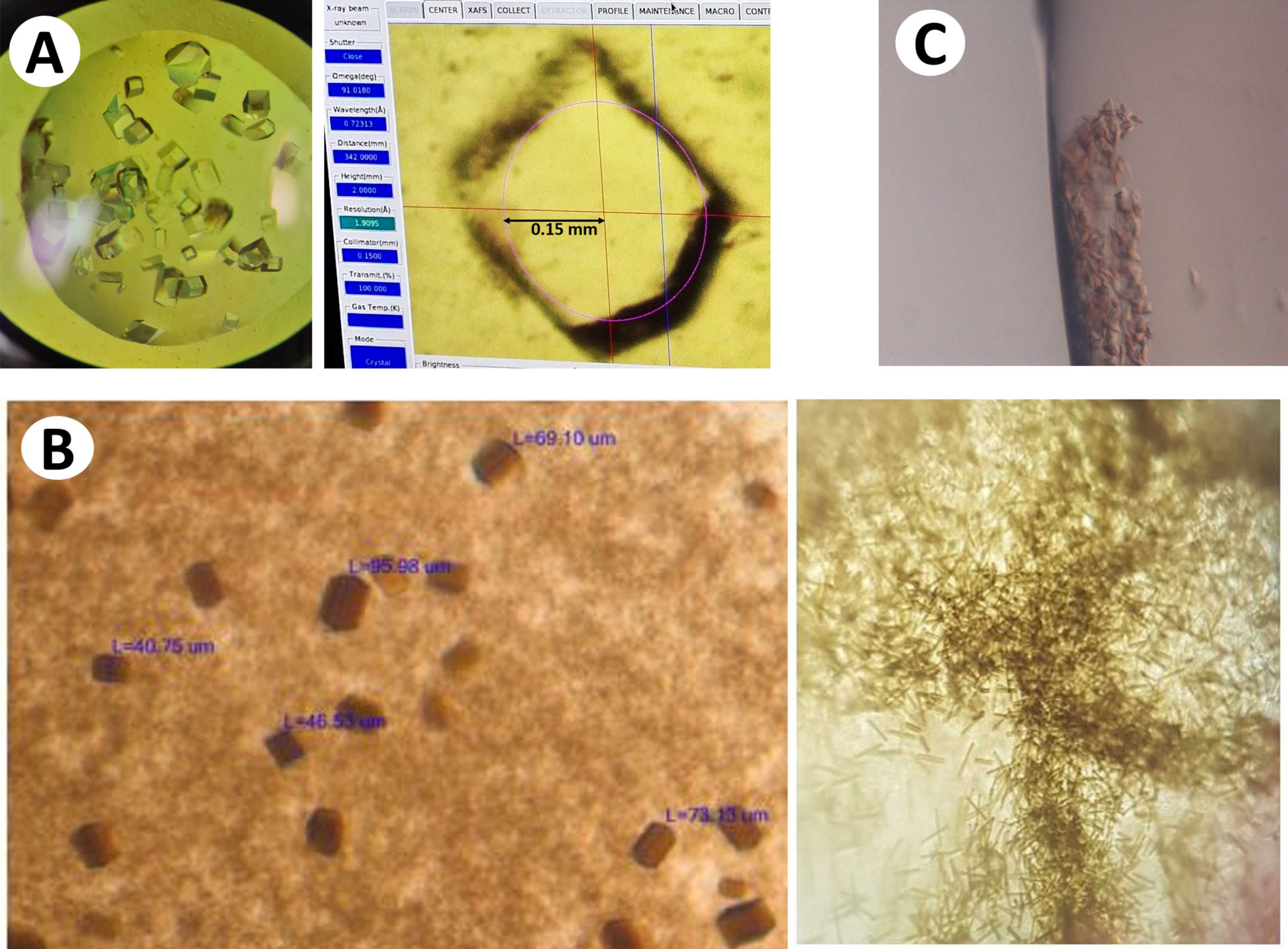

Crystals used for data collection. (A) Crystals of lysozyme of ∼150 × 200 × 200 µm3 in size (estimate based on the size of the X-ray beam) in a hanging drop visualized on a 96-well chip (left). A single crystal is selected for data collection at the PF AR-NW12A beamline, Japan (right). (B) Crystals of RCvir approximately 20 × 40 × 80 µm3 in size obtained from on-chip crystallization by the hanging-drop technique on a 24-well chip (left). Crystals of the same protein obtained in a sitting-drop plate with a size of ∼20 × 20 × 100 µm3 (right). (C) LCP crystals of Tt CcO visualized on the chip.
