Figure 7

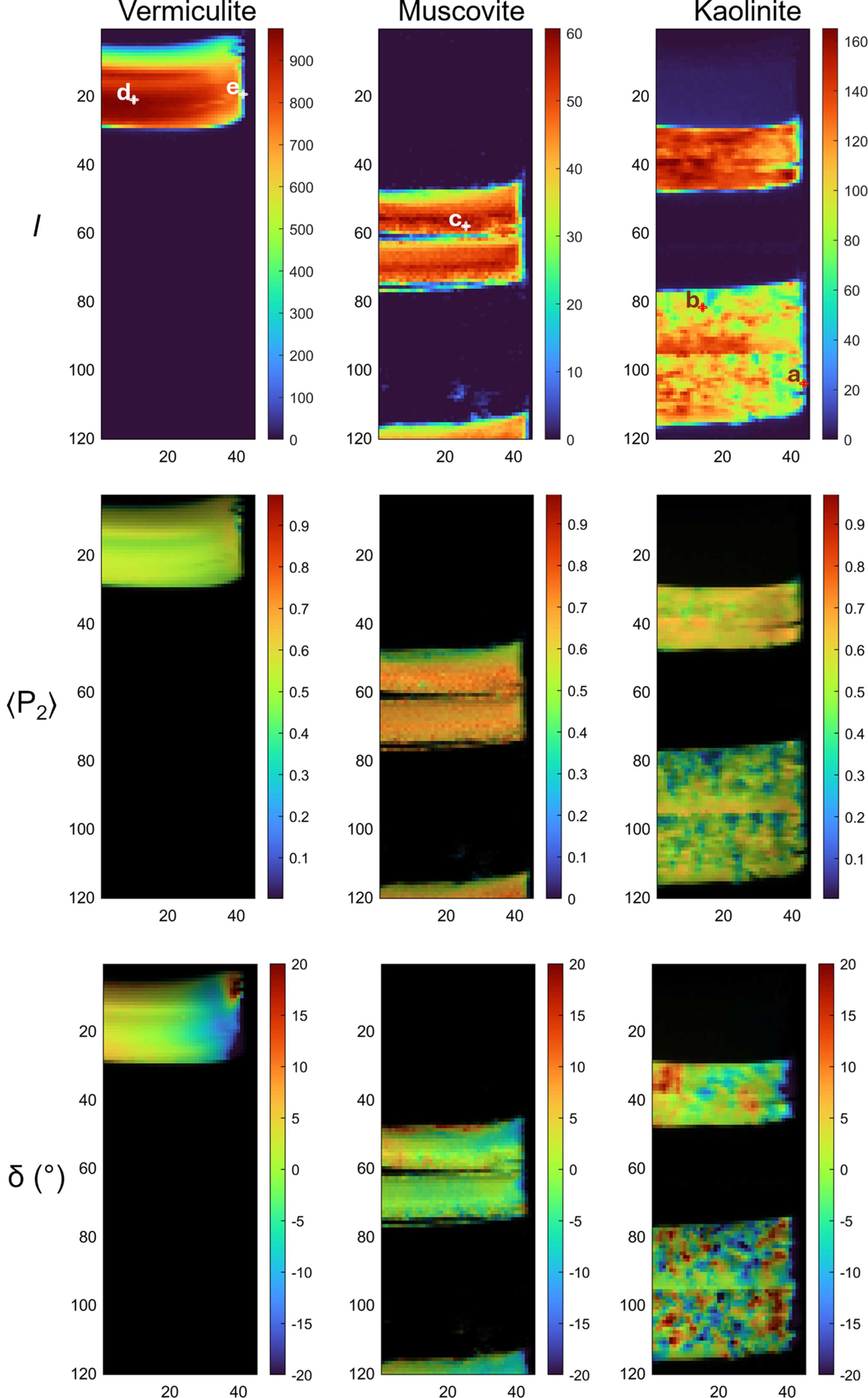

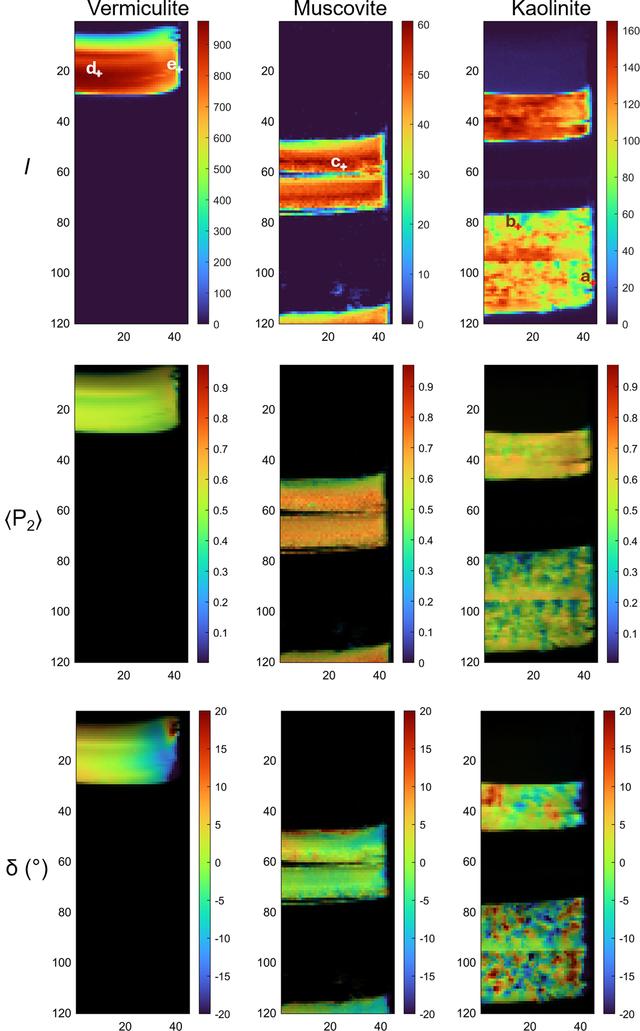

Screenshots of reconstructed maps using the Indiv. file To Matrix and Matrix Plot tools for the intensity (I), 〈P2〉 and δ parameters computed from the ODF fit. The minerals vermiculite, muscovite and kaolinite are selected on the basis of the three predefined zones shown in the average plot (Fig. 5[link]) and applied in batch for every 2D-XRD file with the strategy illustrated in Fig. 2[link]. The intensity of each mineral was used as a mask to represent 〈P2〉 and δ, thus preventing the appearance of abnormal values. For the pixels highlighted in the intensity plot and labeled a, b, c, d and e, the fitting strategy and results are detailed in Figs. SI.6–SI.10, respectively.
