Figure 1

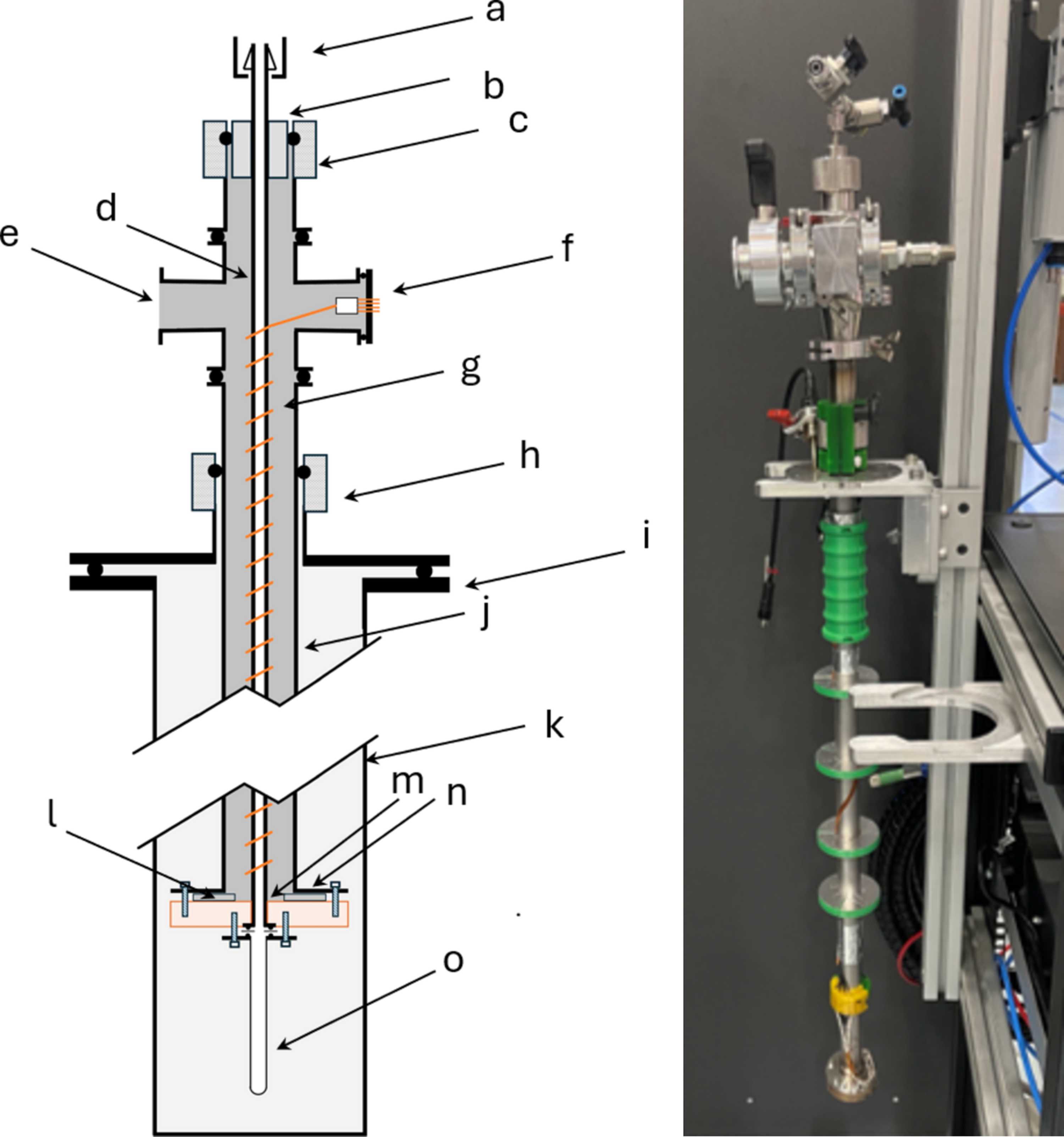

Schematic drawing of the new sticks (left). The letters correspond to (a) 1/4′′ swaged tube fitting, (b) 3/4′′ collar, (c) 3/4′′ o-ring compression vacuum fitting, (d) 1/4′′ delivery line, (e) KF16 vacuum port, (f) electrical vacuum feedthrough and vacuum side connector, (g) resistive heater wire, (h) flanged cryofurnace adapter, (i) cryofurnace flange, (j) vacuum jacket, (k) cryofurnace sample space, (l) PTFE gasket, (m) copper puck, (n) vacuum-jacket flange, and (o) vanadium sample can with welded VCR flange. Image of the stick without the vanadium sample can attached (right). The mountable cartridge heater for the bottom of the sample can is not shown in either image.
