Figure 2

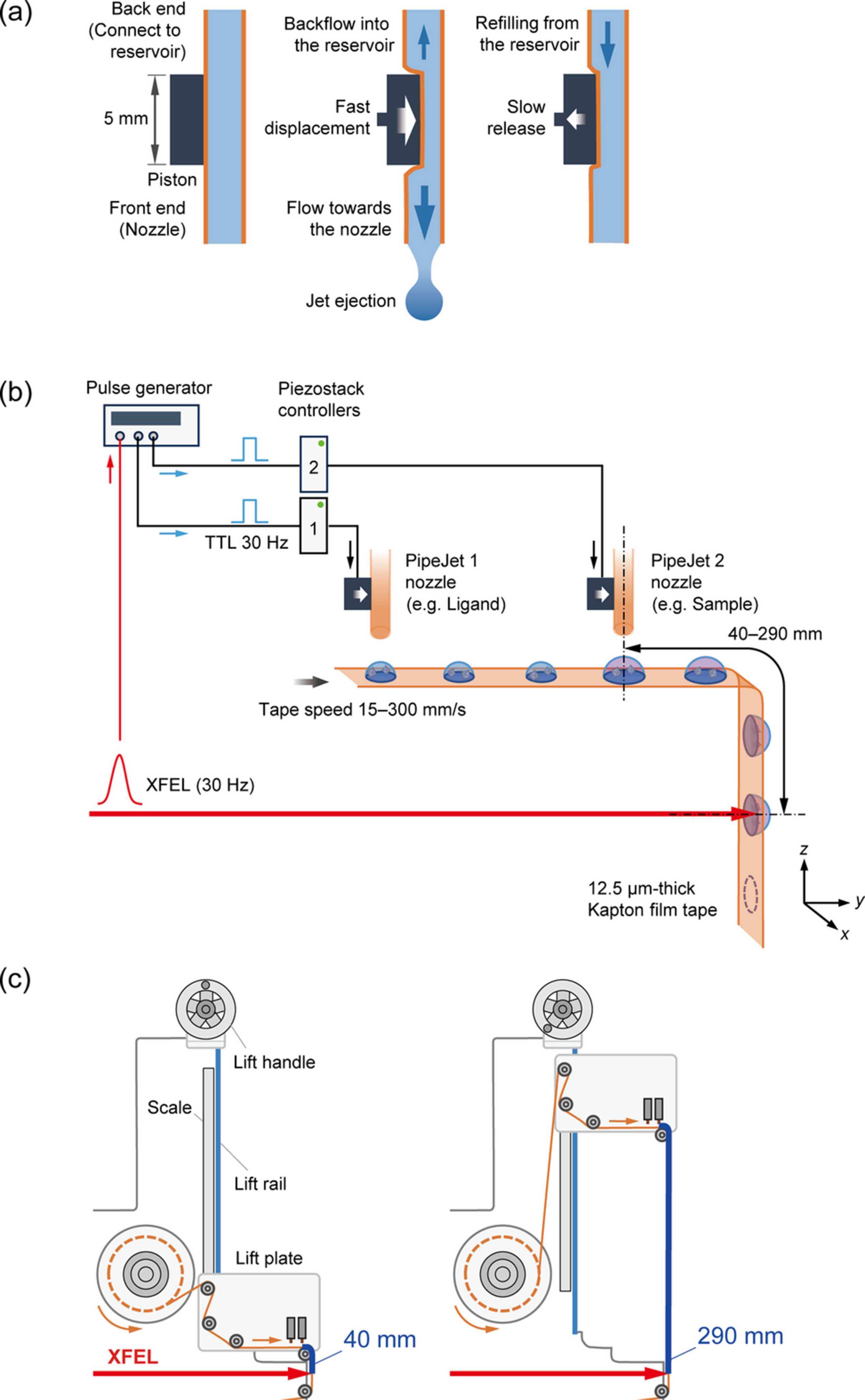

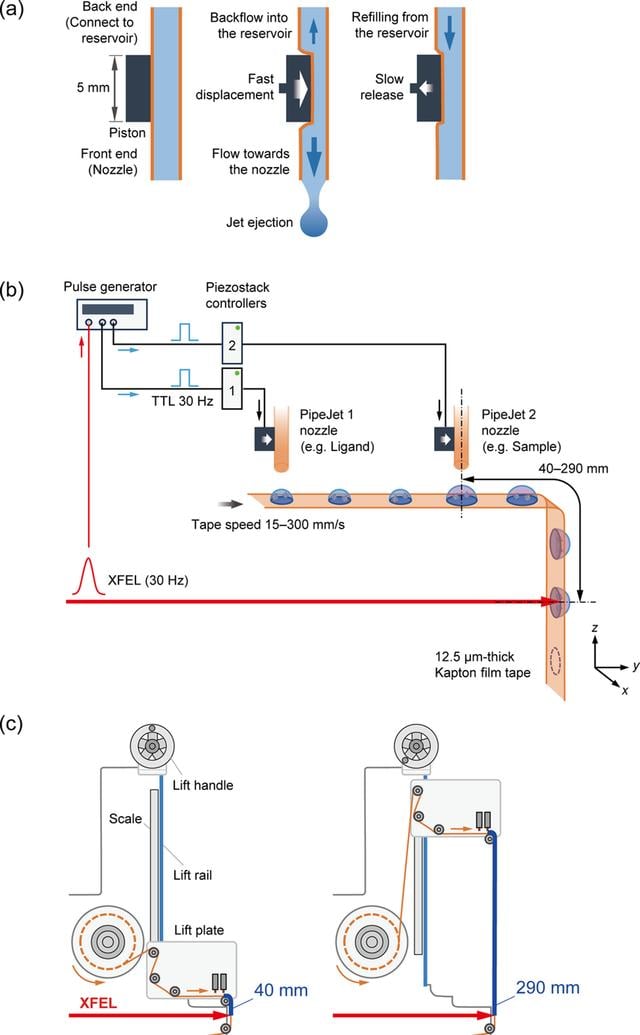

Schematic diagrams of (a) the droplet ejection mechanism, (b) sample delivery synchronized with XFEL irradiation, and (c) control of the distance between the droplet ejection area and XFEL intersecting area. |
|
|
|
Figure 2
Schematic diagrams of (a) the droplet ejection mechanism, (b) sample delivery synchronized with XFEL irradiation, and (c) control of the distance between the droplet ejection area and XFEL intersecting area. |
