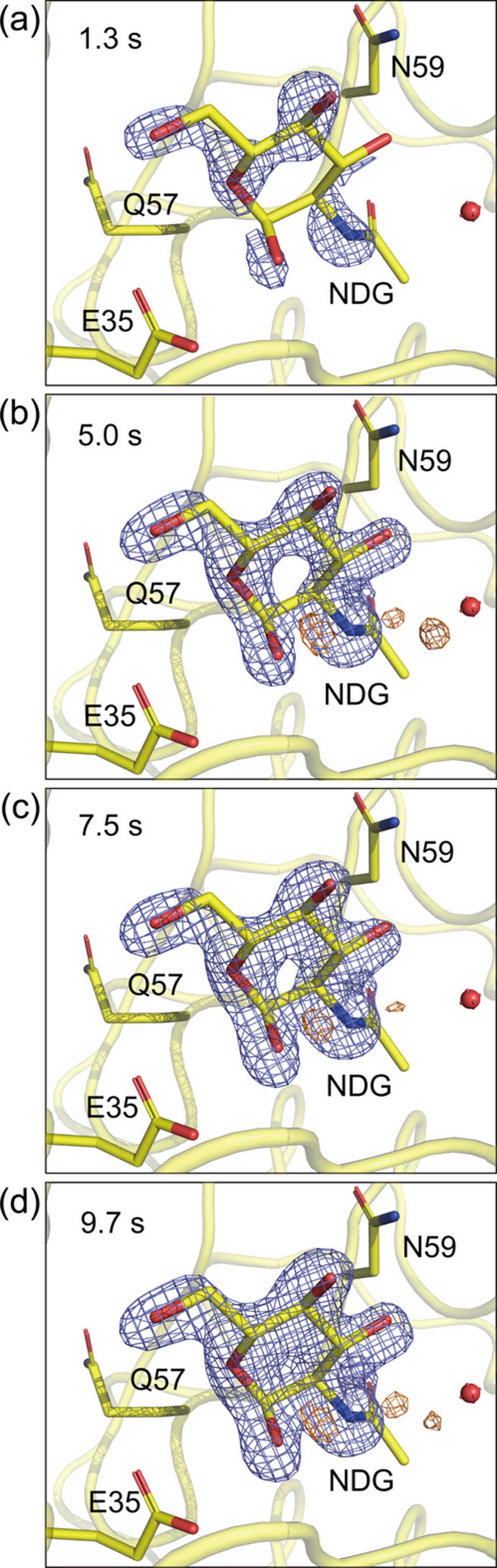

Fo (bound) − Fo (resting) difference electron-density maps obtained by mixing 1 µm HEWL crystals with 226 mM GlcNAc at mixing times of (a) 1.3 s, (b) 5.0 s, (c) 7.5 s and (d) 9.7 s. The maps are contoured at 6.00σ. The GlcNAc-bound HEWL structure is shown with yellow carbon atoms. The positive and negative electron-density peaks are depicted in slate blue and orange, respectively. |
