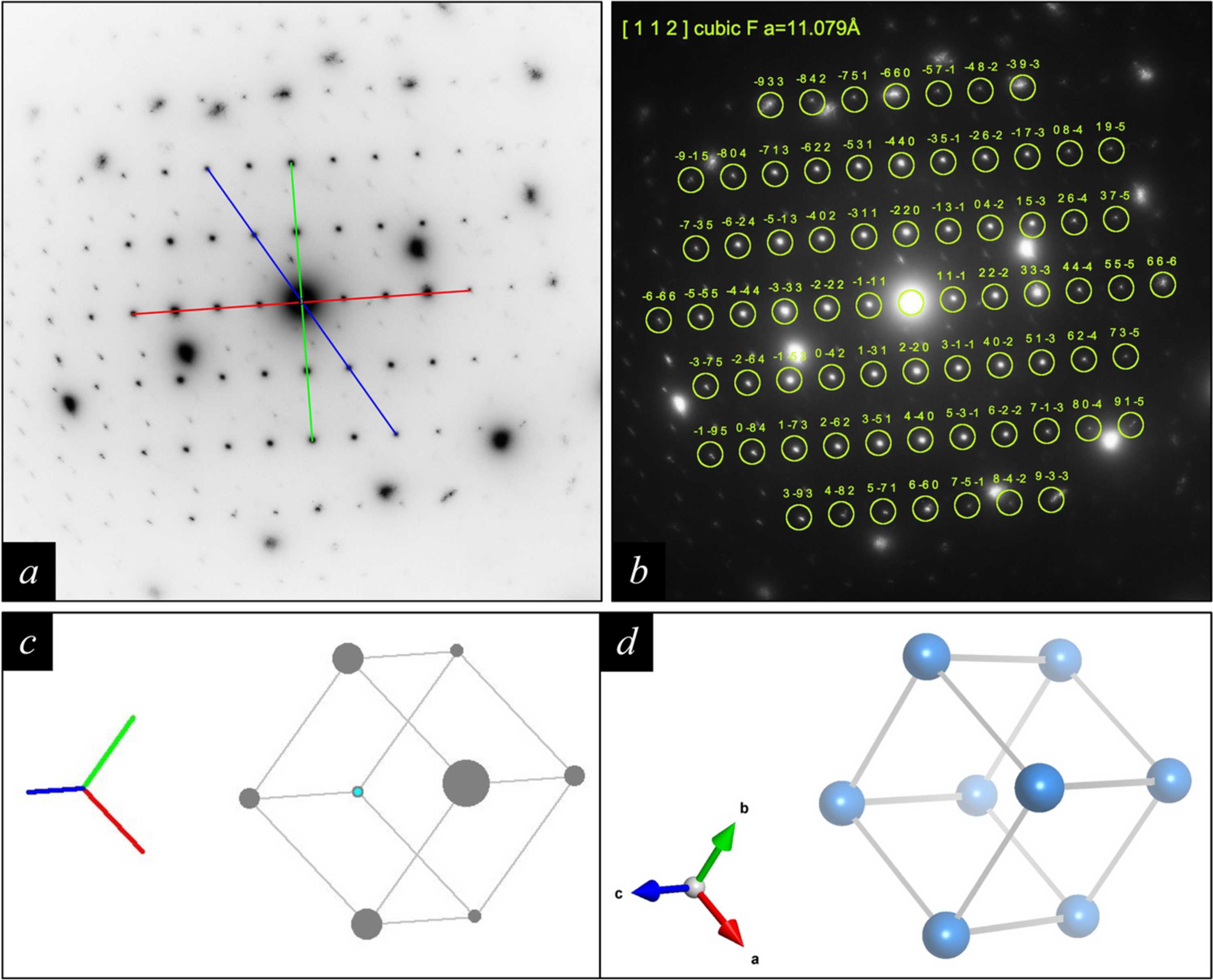

These series of images were obtained using the results from processing the partial pattern of an oriented incoherent precipitate with a D84(M23C6) structure in (a) with RAPID. The pattern with overlay in (b) was obtained by choosing the inverted-pattern display mode in RAPIDviewer and using hkl Laue indices for the diffraction spots. Moreover, the spot markers were enlarged and the `filled spots' checkbox was unselected. The orientation of the primitive unit cell in crystal space, corresponding to the identified [112] zone axis, is presented in (c). The 3D view of the unit-cell orientation shown in (d) is obtained when the output file generated by RAPIDviewer is opened in the program VESTA (Momma & Izumi, 2011View full citation).
