Figure 5

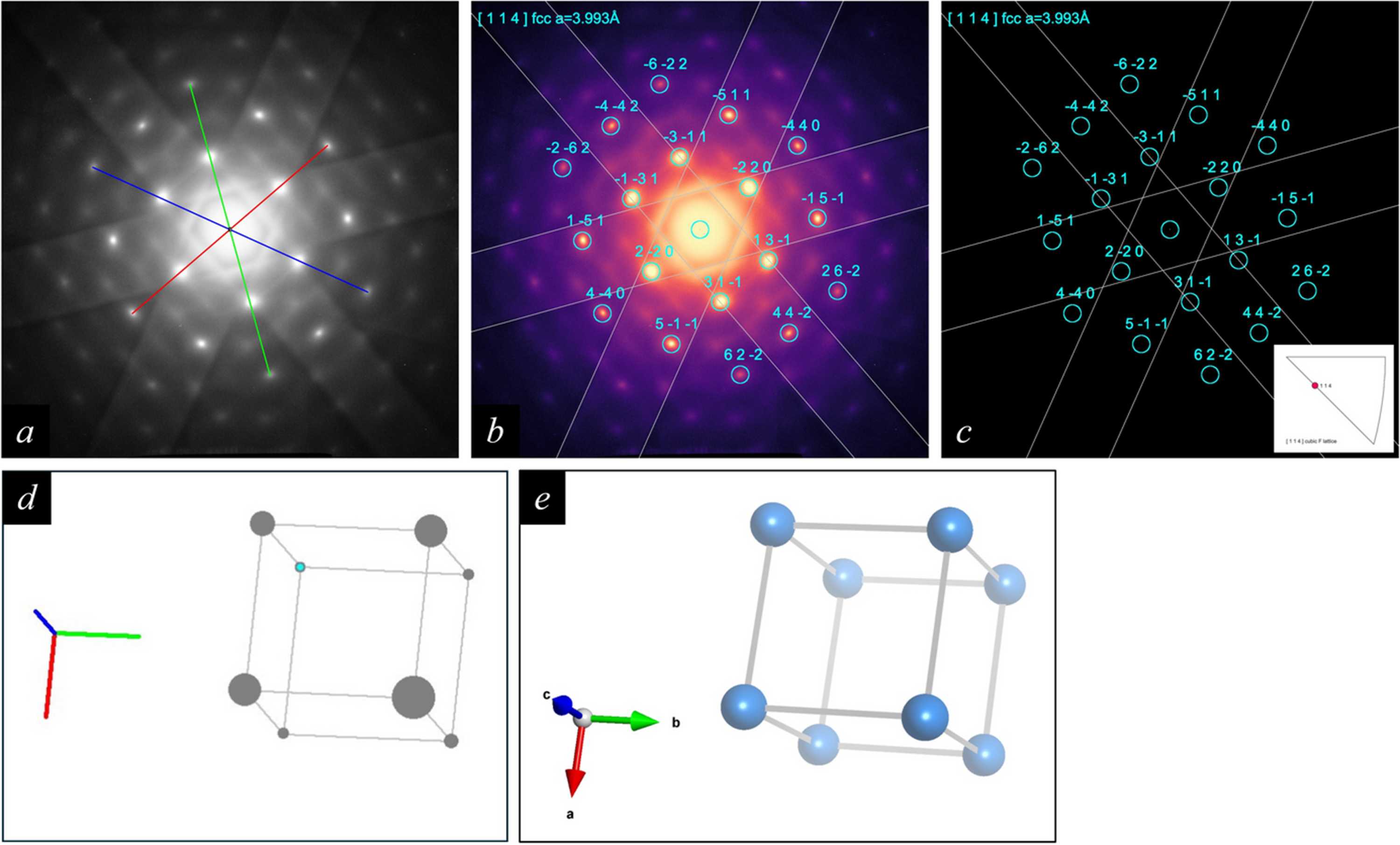

For the SAED pattern from aluminium alloy AlZn5Mg in (a), the colour scheme was changed to `mpl-magma' and hkl Laue indices were chosen for labelling the diffraction spots in (b). Moreover, the option to add Kikuchi lines was selected and the diffraction spot markers were enlarged and drawn as unfilled circles. The same overlay, but without the experimental pattern and with a black background, is shown in (c). The corresponding unit-cell orientation along the [114] direction in crystal space is shown in (d). The 3D view obtained with the program VESTA (Momma & Izumi, 2011View full citation) when using the RAPIDviewer-generated input file for the same orientation is shown in (e).
