Figure 2

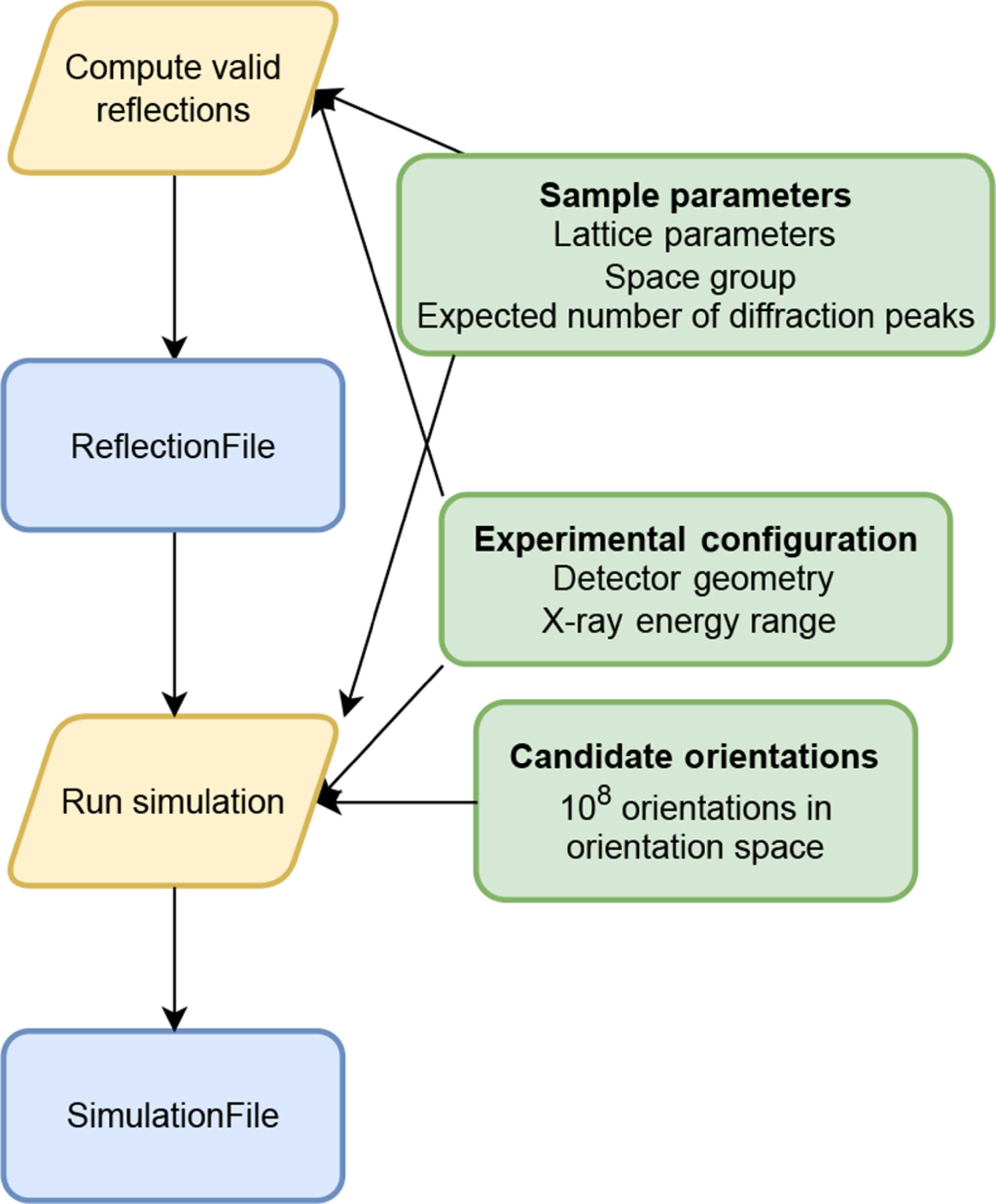

Schematic diagram of workflow to generate the SimulationFile in LaueMatching. Blue boxes indicate file I/O to the system, green boxes indicate user inputs and yellow boxes indicate computation. |
|
|
|
Figure 2
Schematic diagram of workflow to generate the SimulationFile in LaueMatching. Blue boxes indicate file I/O to the system, green boxes indicate user inputs and yellow boxes indicate computation. |
