Figure 5

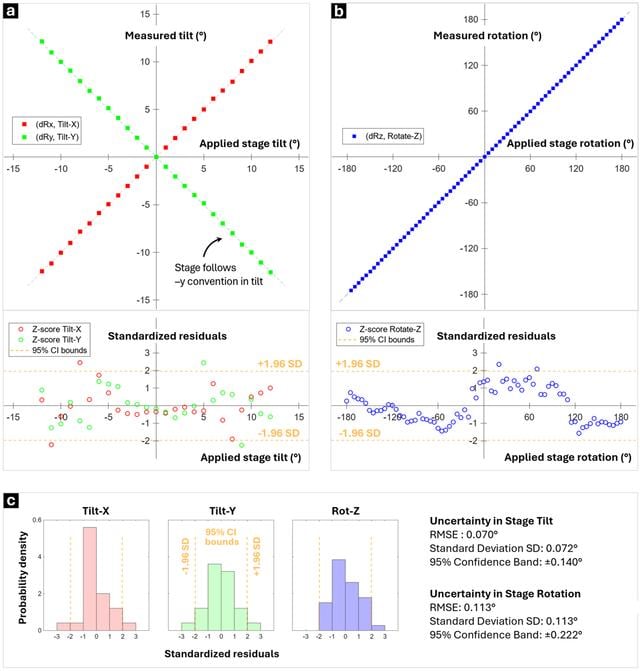

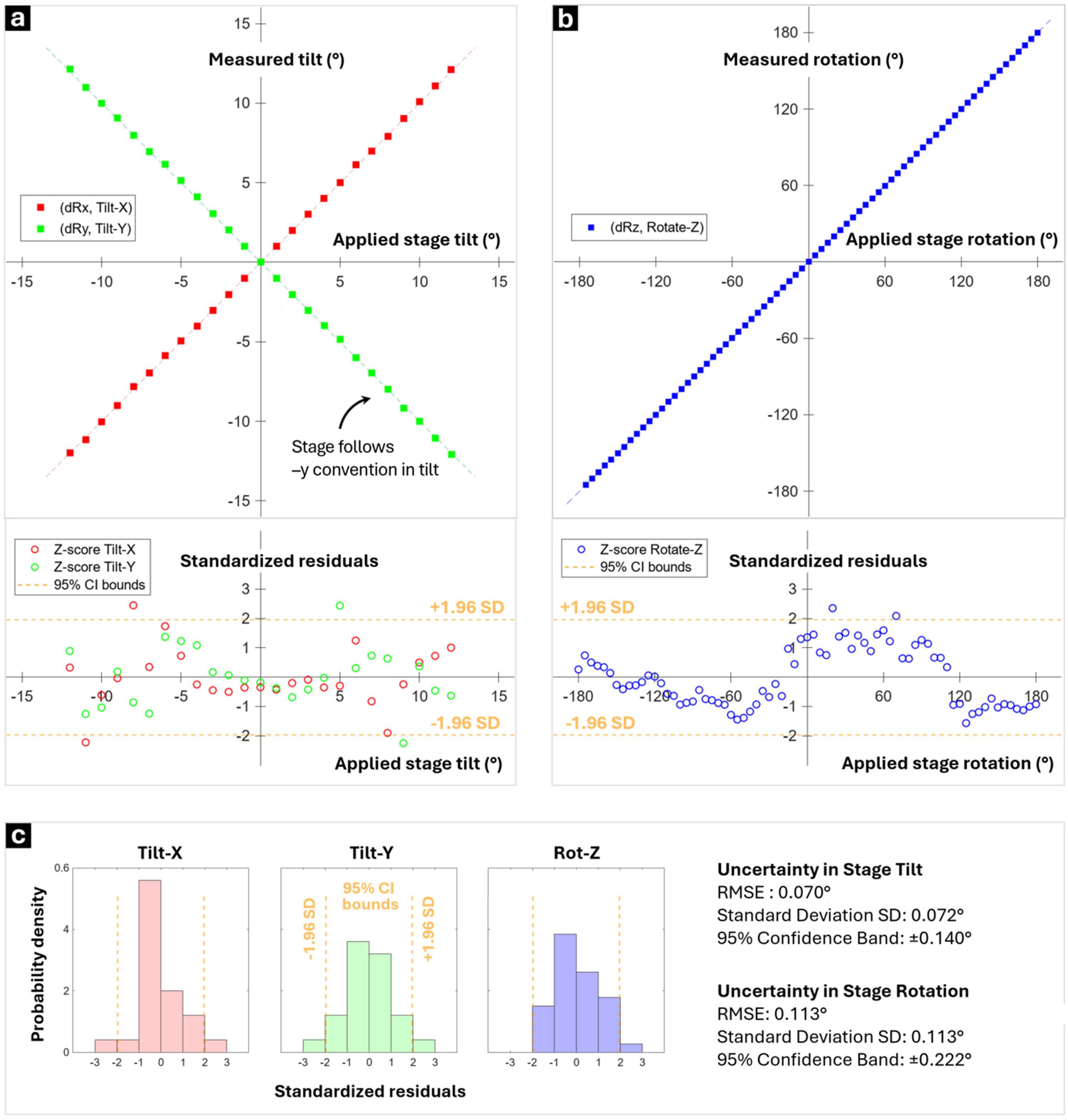

SEM stage calibration through the SA-ECP indexing method by measuring the indexed stage position versus the applied position for (a) tilt about the X and Y axes, and (b) rotation about the Z axis. Note that our stage follows an opposite convention in the Y direction i.e. TiltY = −dRy. (c) The stage uncertainty was quantified by an RMSE of 0.07° and 0.1° in tilt and rotation, respectively, with standardized residuals and 95% confidence bounds (±1.96 SD) confirming consistent alignment without significant outliers.
