Figure 6

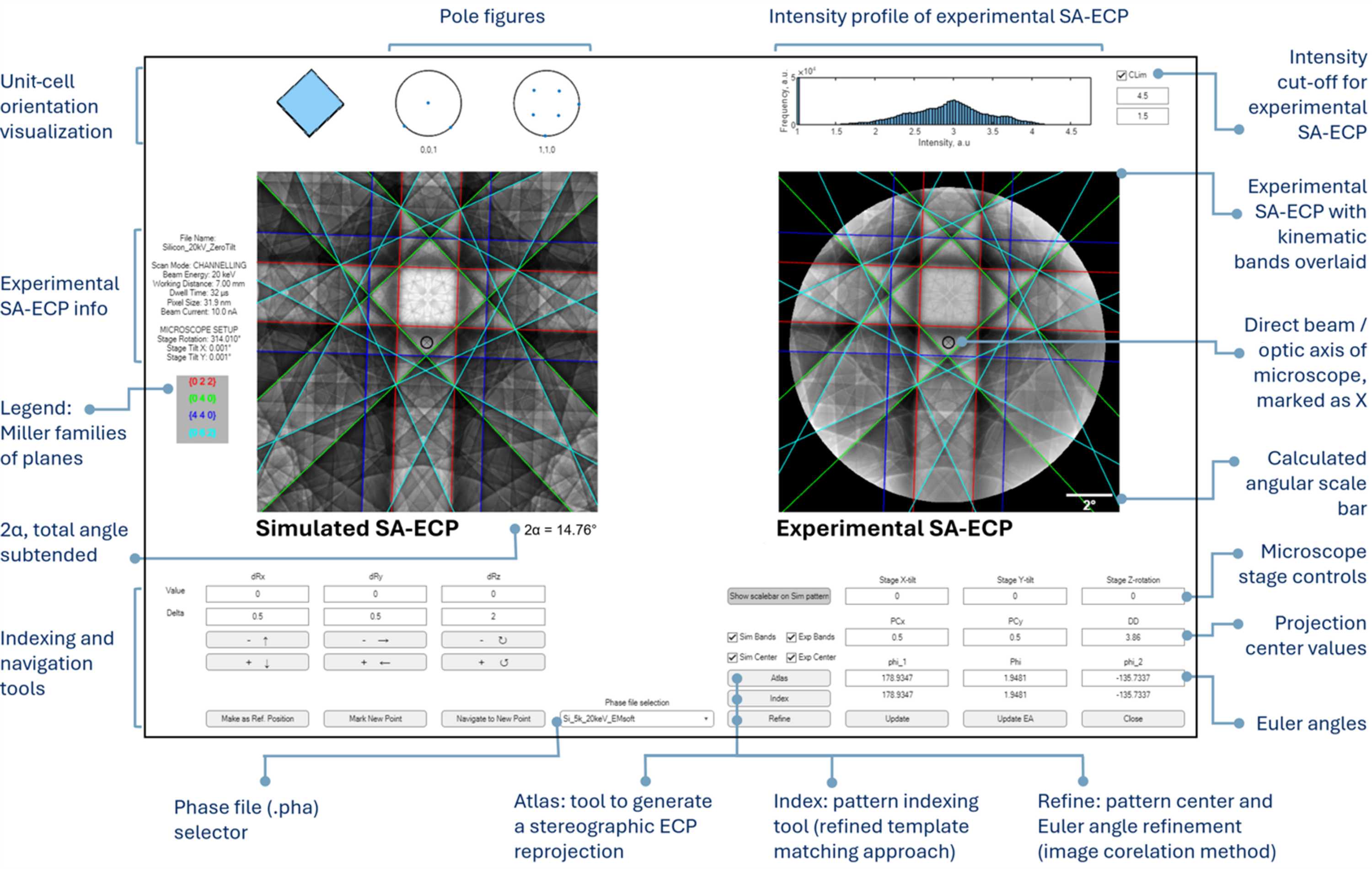

A screenshot of AstroECP, the new MATLAB-based GUI for indexing and navigating through ECPs. The experimental pattern is loaded as a .tif file and a corresponding phase file (.pha) is selected from a drop-down menu. The simulated pattern is then navigated through `dRx'/`dRy'/`dRz' buttons to match it with the experimental pattern after setting the projection (i.e. projection geometry and crystal orientation). Kinematic predictions of the band edges (shown as colored lines) help in indexing and navigating the experimental pattern. The `Index', `Refine' and `Atlas' buttons are used to help match and navigate the experimental ECP.
