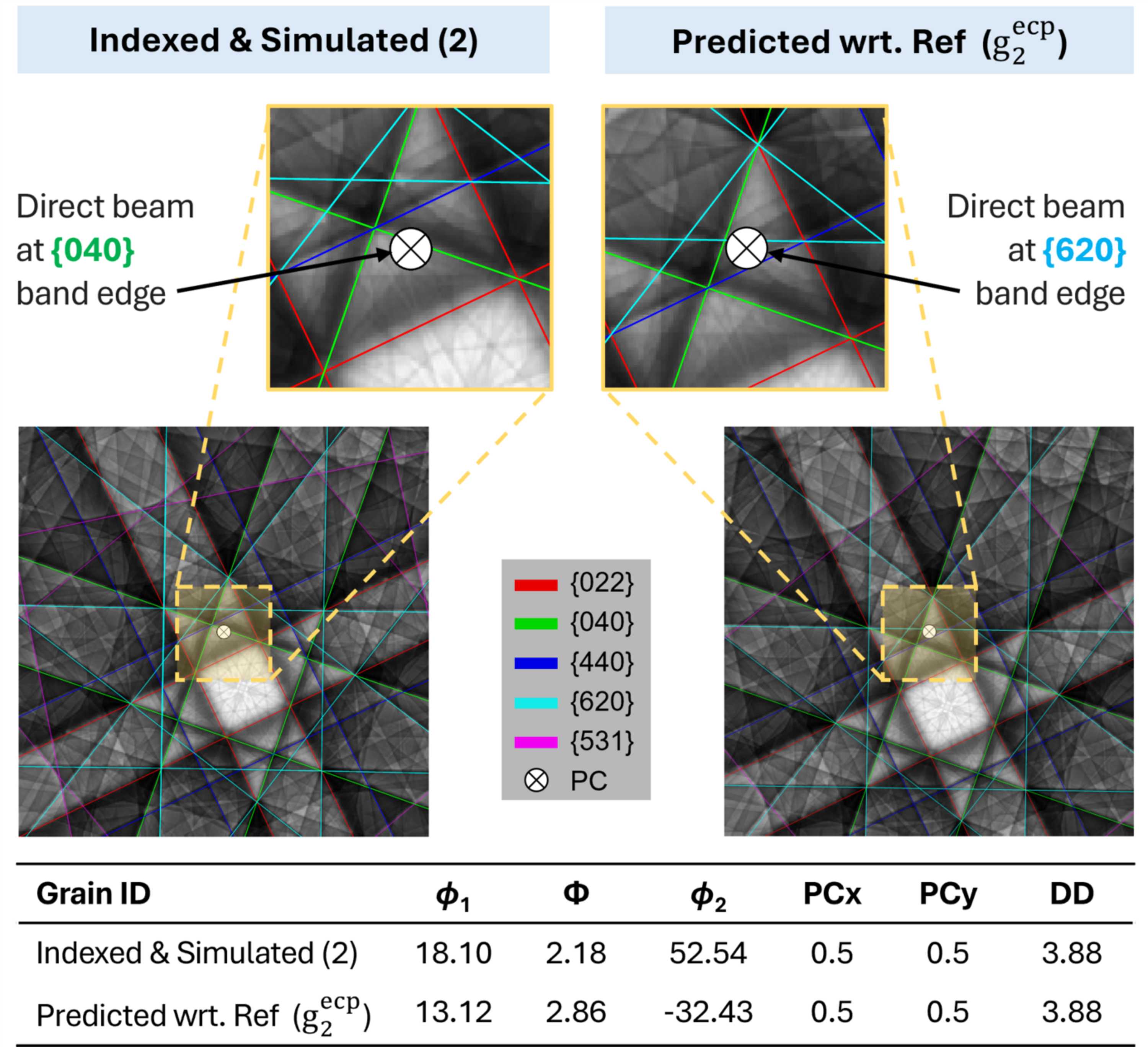

Figure 8
Comparison of simulated and predicted channeling patterns for crystal 2 as in Fig. 7[link]. Insets give a closer look at the position of the direct beam in both cases. As the crystal orientation has been shifted due to uncertainties associated with using the EBSD-informed ECCI method, the direct beam lies on a different band in the predicted SA-ECP than in the actual. The orientation information, including pattern center and Euler angles, is also tabulated for comparison.
