![[Figure 5]](yr5164fig5mag.jpg)
|
|
Figure 5

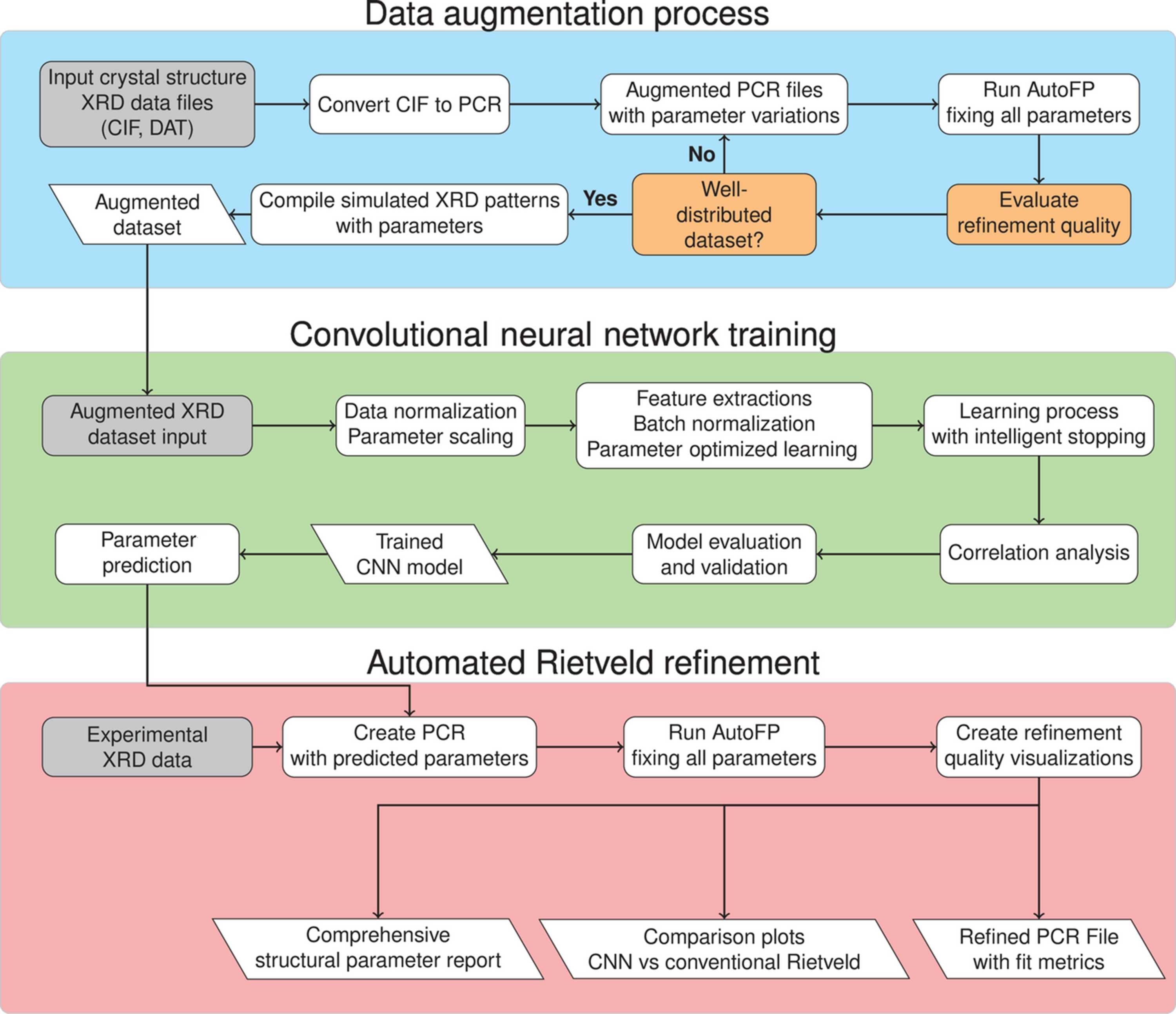

XRD analysis pipeline with three major sections. The data-augmentation process transforms crystal structure files and XRD data into a refinement format with systematic parameter variations. These undergo structural refinement and quality evaluation through an adaptive feedback loop to produce a comprehensive training dataset. The CNN training section applies feature extraction, batch normalization and parameter-optimized learning paths to this dataset. The resulting model includes correlation analysis of parameter relationships. The automated Rietveld refinement section applies this model to real-world diffraction patterns. It creates refinement files with predicted parameters, conducts automated structure refinement and produces visualizations that compare the CNN results with those from traditional methods. |
![[Figure 5]](yr5164fig5.jpg)
