Figure 7

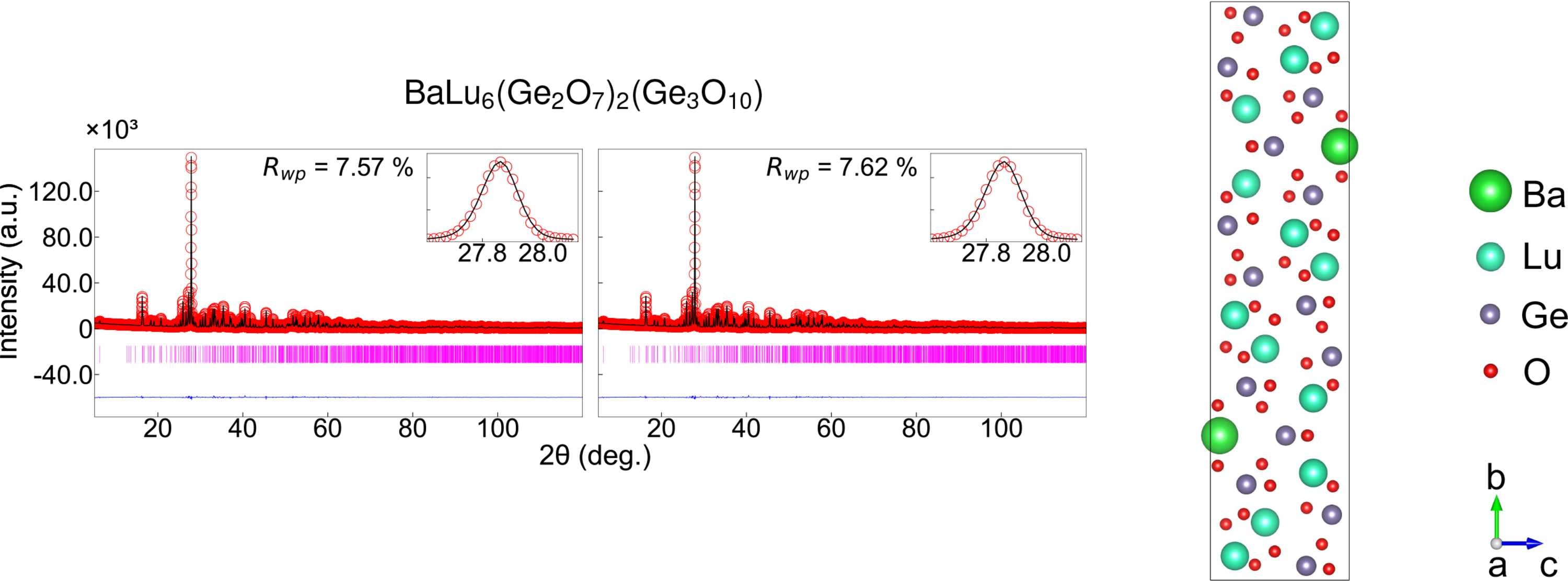

Rietveld refinement results for BaLu6(Ge2O7)2(Ge3O10) with a monoclinic structure P21/m. The left panel displays conventional Rietveld refinement results (Rwp = 7.57%); the middle panel shows CNN-predicted refinement (Rwp = 7.62%). Each plot shows observed data as red circles, calculated patterns as black lines, difference curves (lower blue traces) and Bragg positions as magenta markers. Insets provide zoomed views of the strongest peak. The crystal structure with coordinate axes (a, b, c) is shown on the right.
