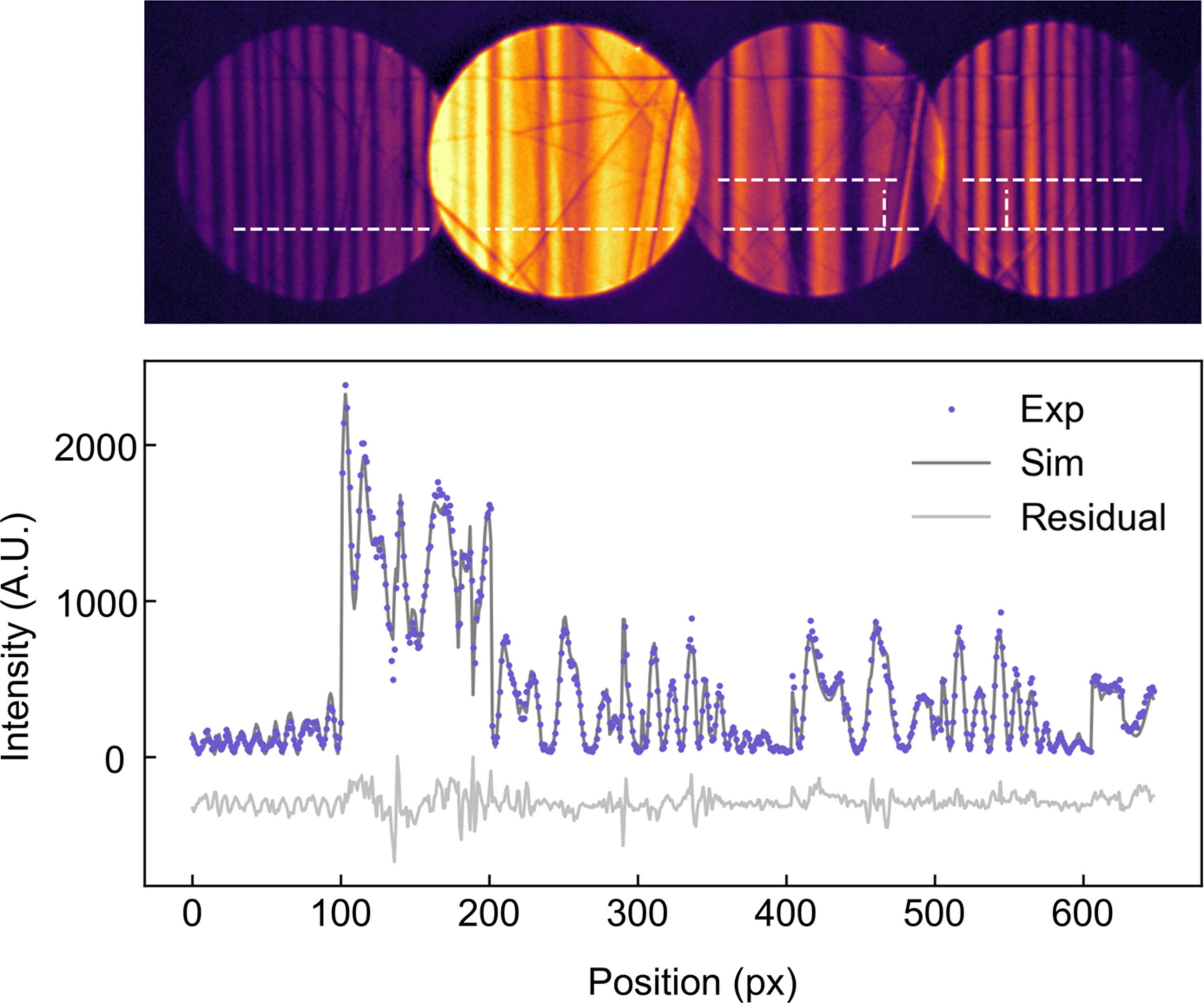

Figure 4
(a) Si 111 systematic CBED pattern. The pattern is energy-filtered and deconvoluted with detector MTF. The intensity is square rooted to show the details in dark-field discs. (b) Comparison of experimental intensities along the white lines shown in (a) with simulated intensities calculated with refined structure factor, and the residual difference.
