Elliptical neutron-focusing supermirrors with Ni–P-plated Al–Si alloy substrates for multi-incident-angle neutron reflectometry

Wei, Y.; Hosobata, T.; Yamada, N.L.; Hino, M.; Yamada, M.; Yamagata, Y.; Morita, S.

doi:10.1107/S1600576726009088

Figure 5

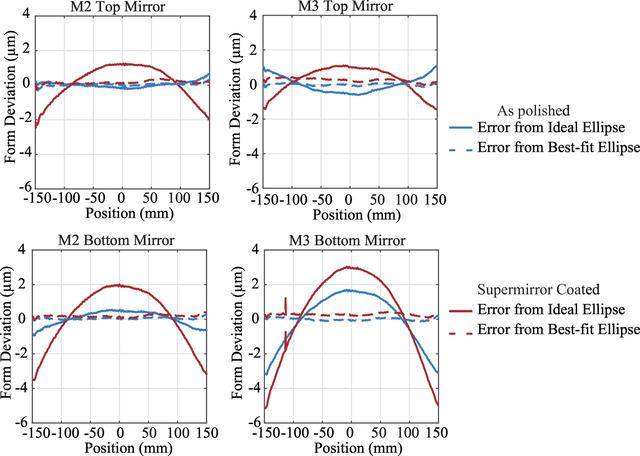

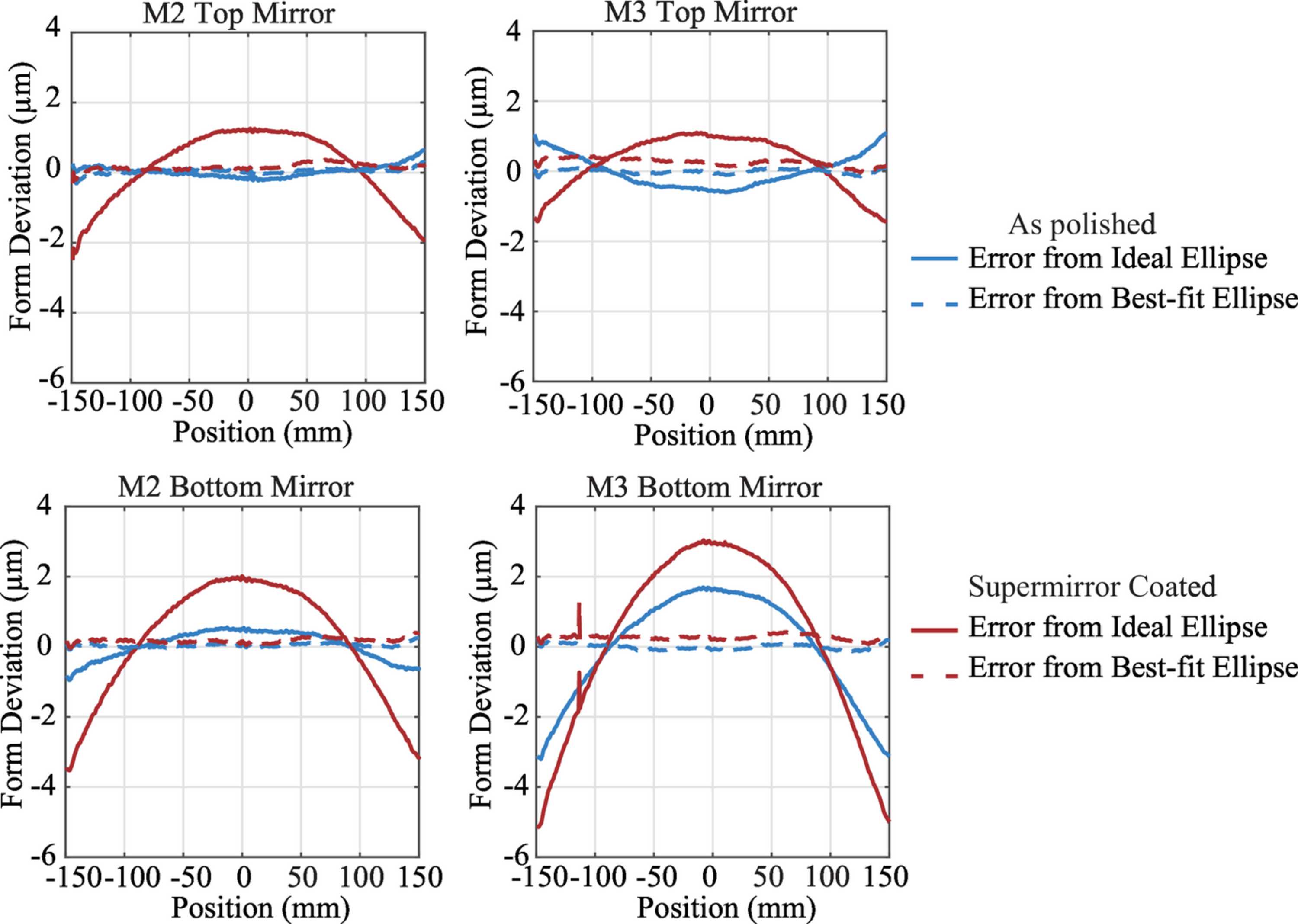

Form deviations of neutron-focusing mirrors in the as-polished and supermirror-coated states relative to the designed and best-fit ellipses. Measurements were performed using a 3D coordinate measuring machine (LEGEX, Mitutoyo Corporation) equipped with a laser auto-focus probe (PFU-3, Mitaka Kohki Corporation).
