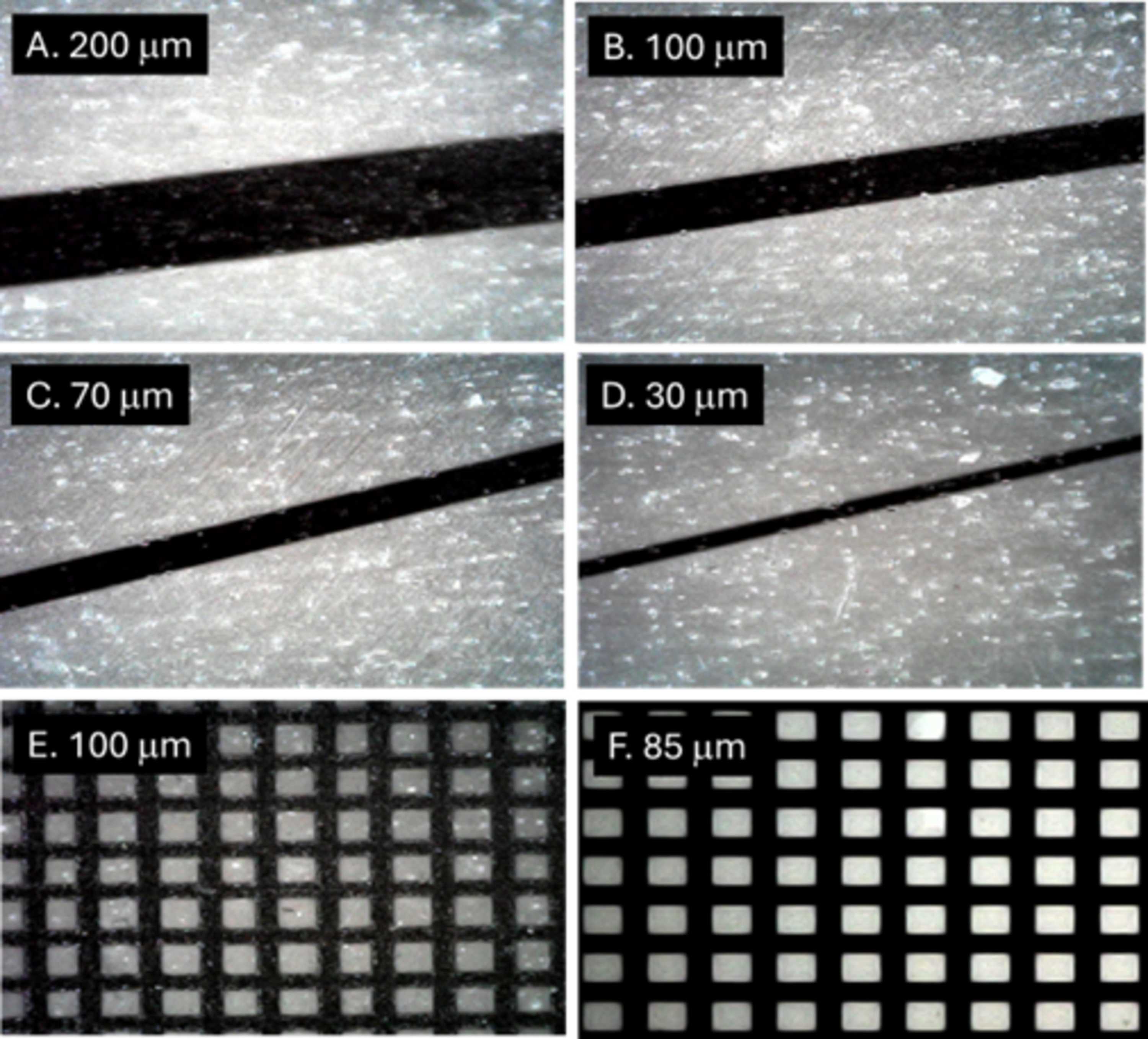

Figure 3
Calibrating the wired DMD. (A–D) Plastic calibration ruler with black lines of defined thickness ranging from 30 to 200 µm. (E) Plastic calibration ruler with 100 µm × 100 µm grid. (F) Electron microscope 300-mesh grid with a pitch of 85 µm (31 µm bar width, 54 µm hole width).
