Figure 3

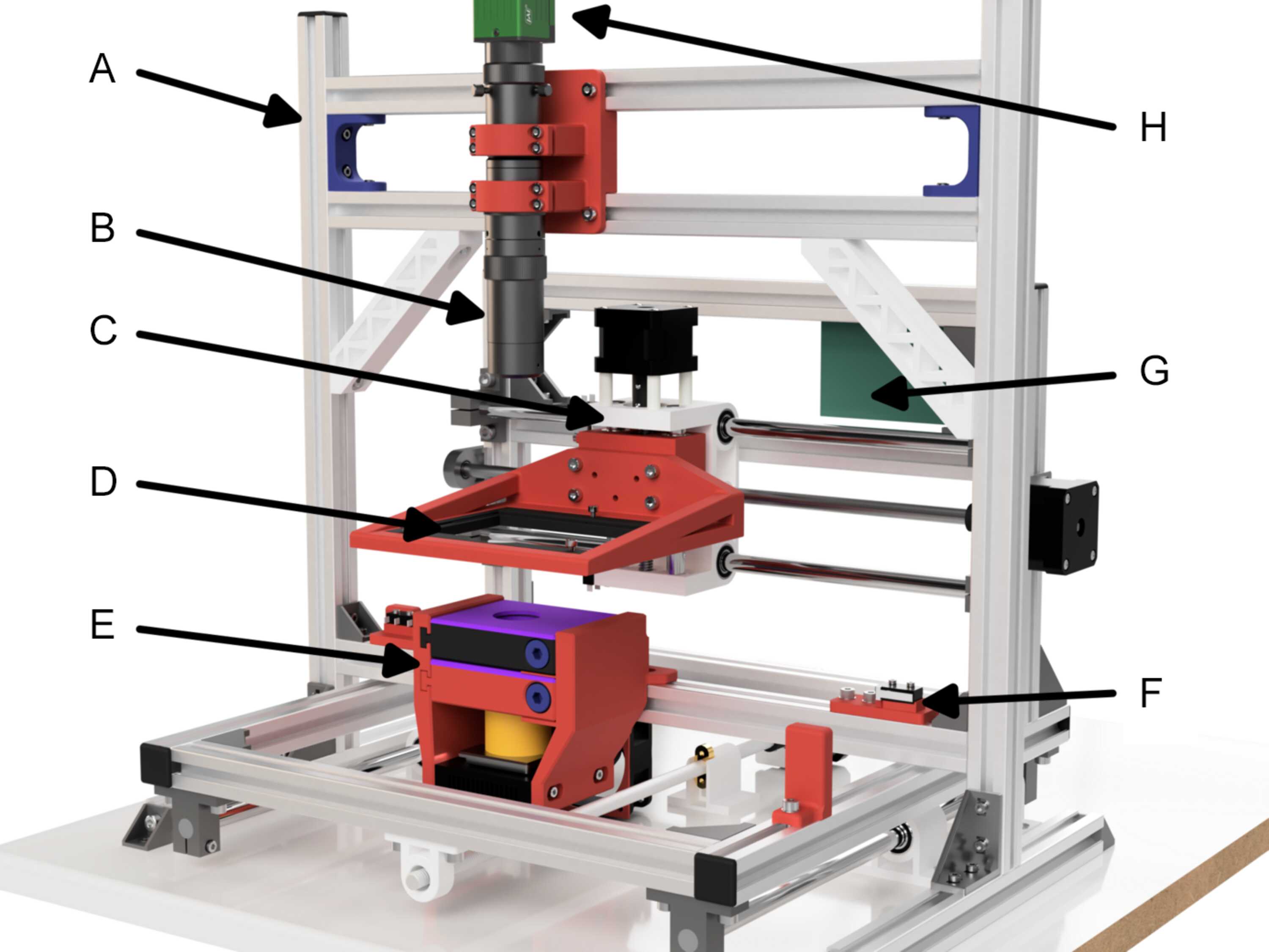

Annotated computer-aided design render of the Atomicity XtalEyes plate reader. Components are labelled as follows: A = module gantry, B = lens, C = x-axis carriage, D = plate holder, E = light source with filter cassettes, F = limit switches, G = ATMEL-based control board, H = Jai Go-5100 MP.

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 59| Part 5| October 2026| Pages 1557-1569
https://doi.org/10.1107/S1600576726007727
