Figure 3

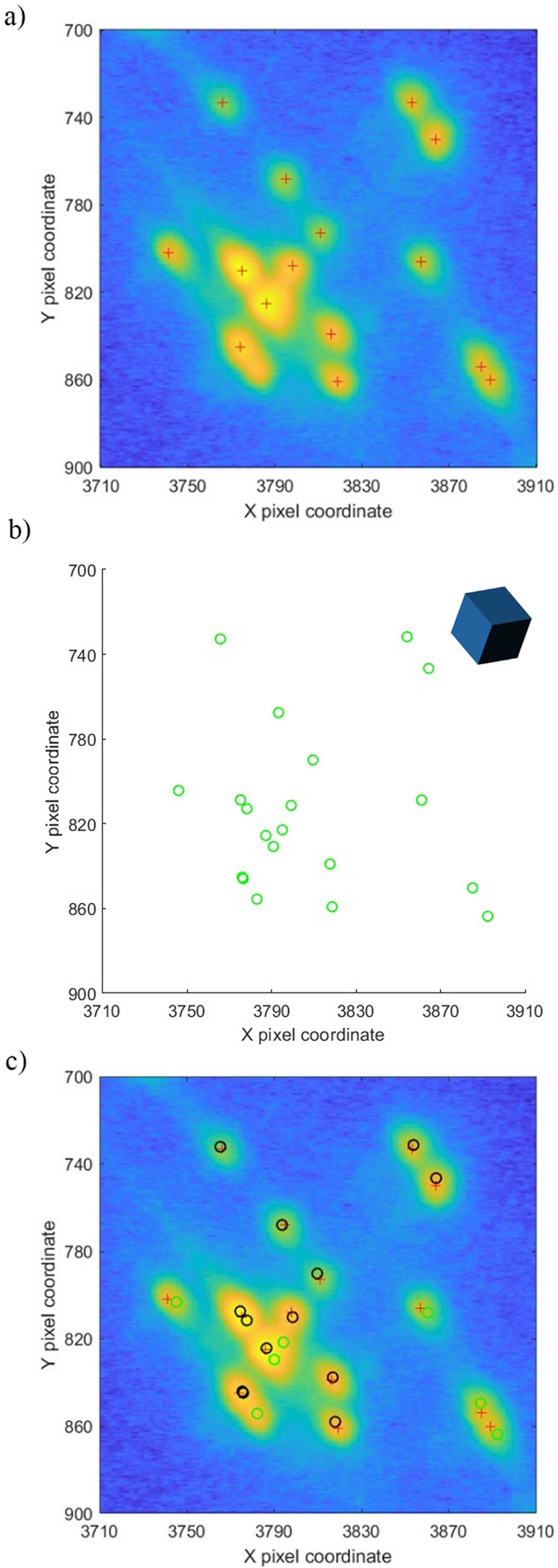

(a) Part of an image plate showing identified centres of individual peaks used for structure orientation determination. (b) Reciprocal-space map simulation for different orientations of the parent β grain. (c) Final reciprocal-space map simulation, with black circles indicating simulation–experiment pair matches and green circles denoting predictions lacking the pair within a certain distance. |
