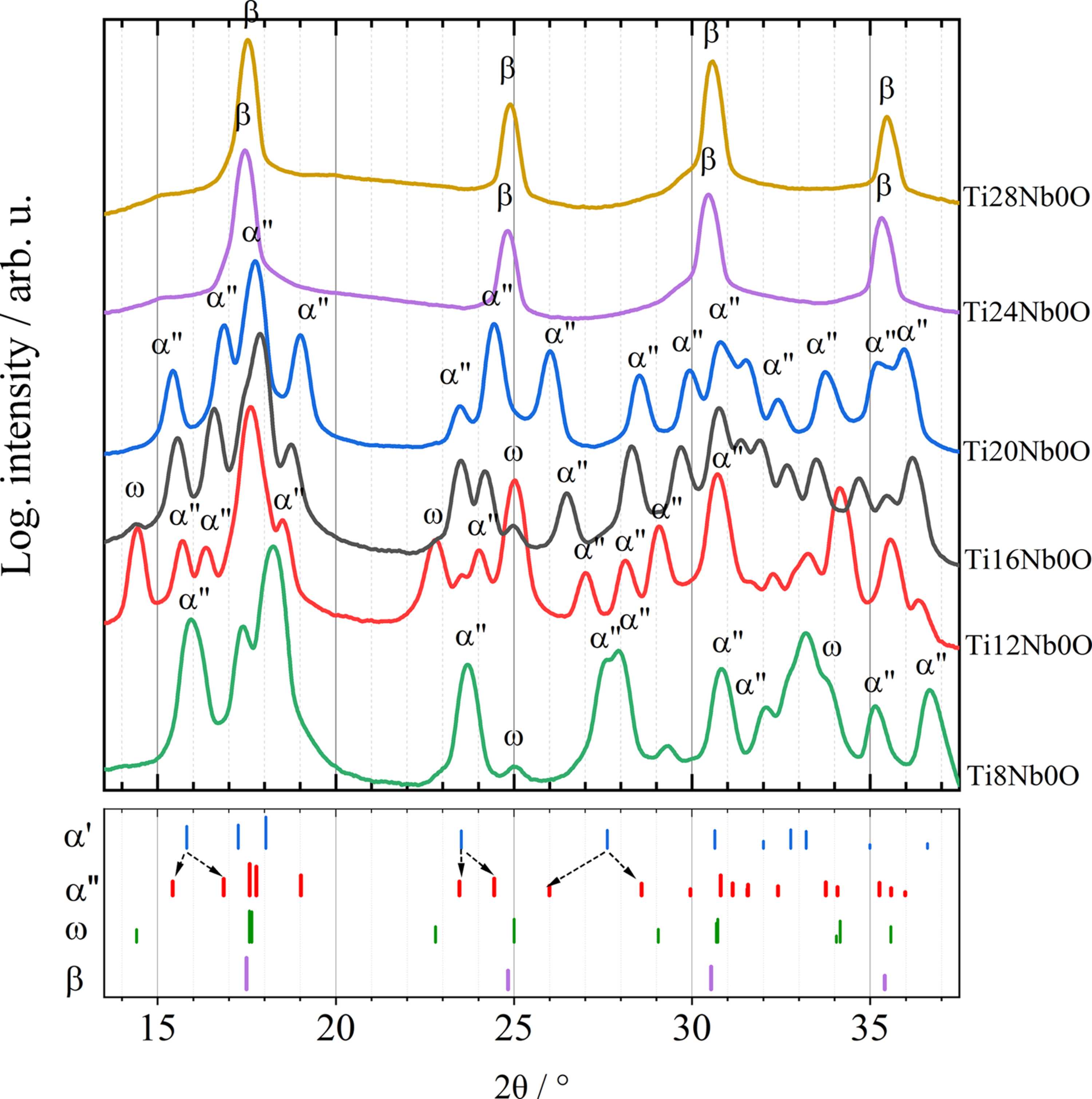

Figure 5
XRD integrated profile over constant 2θ angle of Ti–xNb alloys after quenching from 1200°C. The legend on the right-hand side indicates which curve belongs to which sample. Black arrows show the splitting of several peaks due to the lower symmetry of an orthorhombic structure (α″) over h.c.p. (α′).
