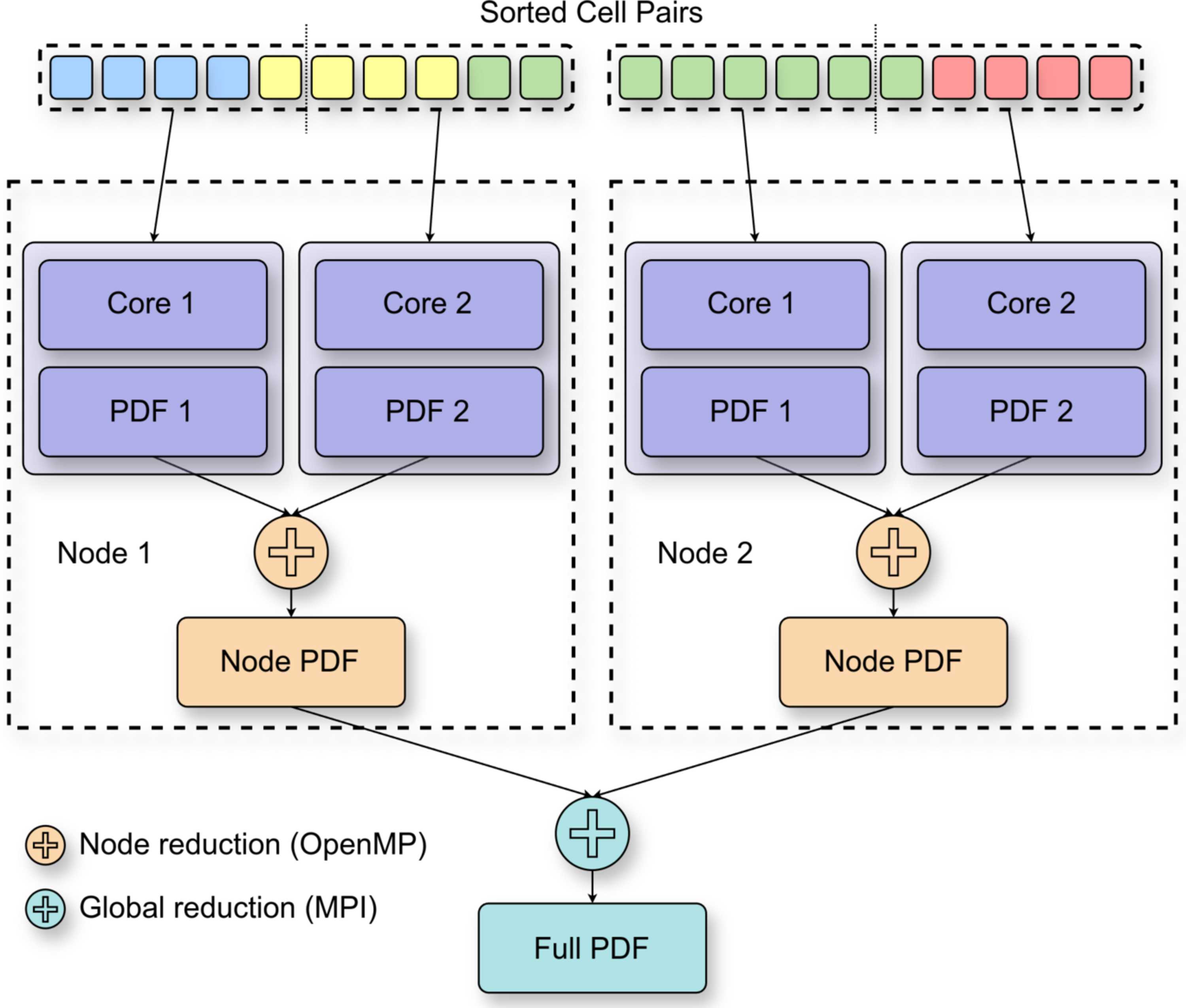

Figure 2
CPU parallelization scheme using a hybrid MPI + OpenMP model. Each node runs a single MPI process that spawns multiple OpenMP threads (one per core in this example). This schematic shows two MPI processes, each with two OpenMP threads.
