Figure 7

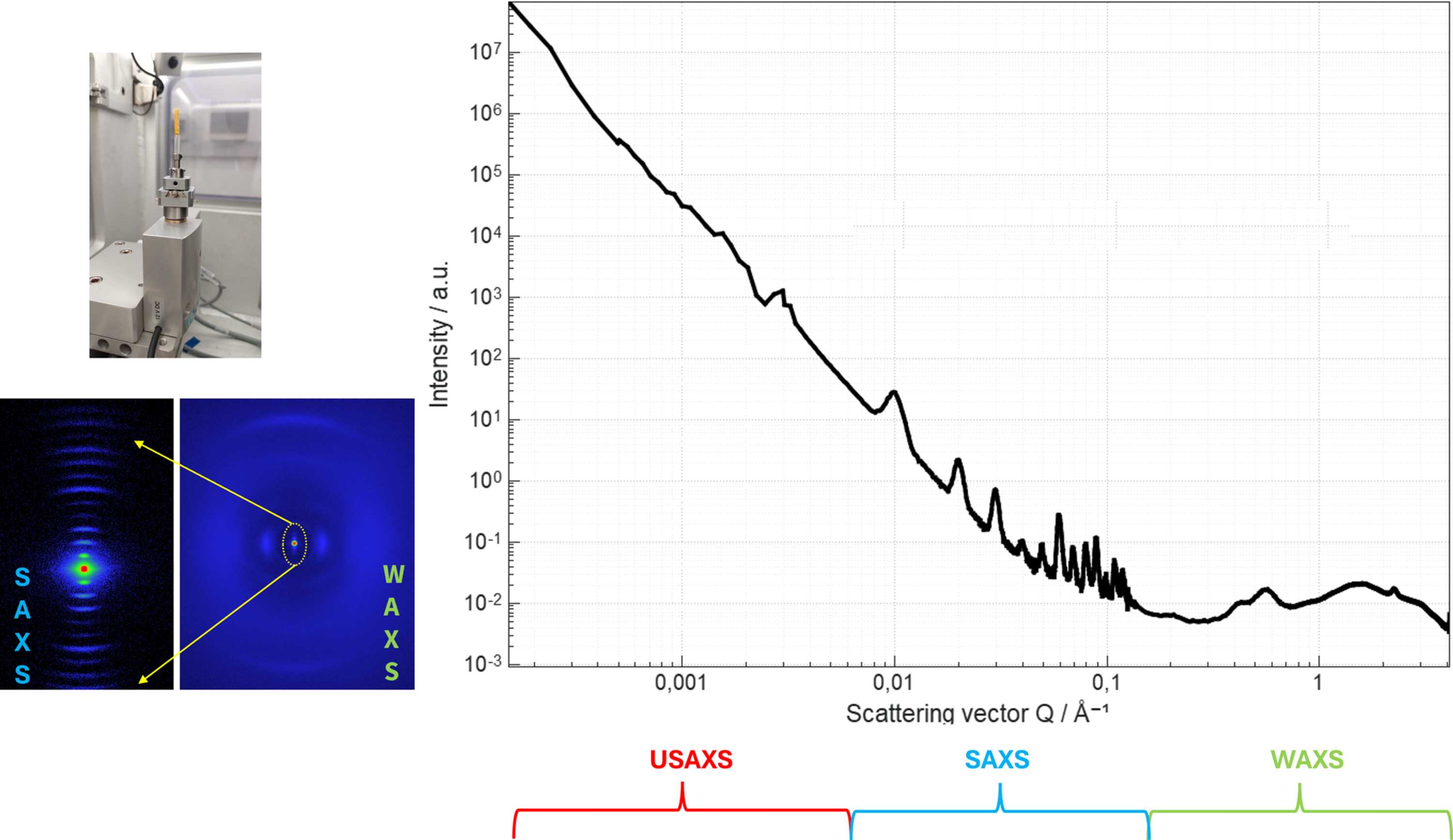

Structural characterization via USAXS/SAXS/WAXS was performed on core biopsies harvested from the deep digital flexor tendon of a 4 year-old male Equus caballus (EQ). The specimens were encapsulated within 3 mm-diameter Kapton capillaries and positioned on a motorized rotary stage for analysis (refer to the top-left inset).
