Stroboscopic neutron scattering measurements using Raspberry Pi-based sample environment event mode

Nelson, A.R.J.; Gilbert, E.P.; King, J.P.

doi:10.1107/S1600576726008332

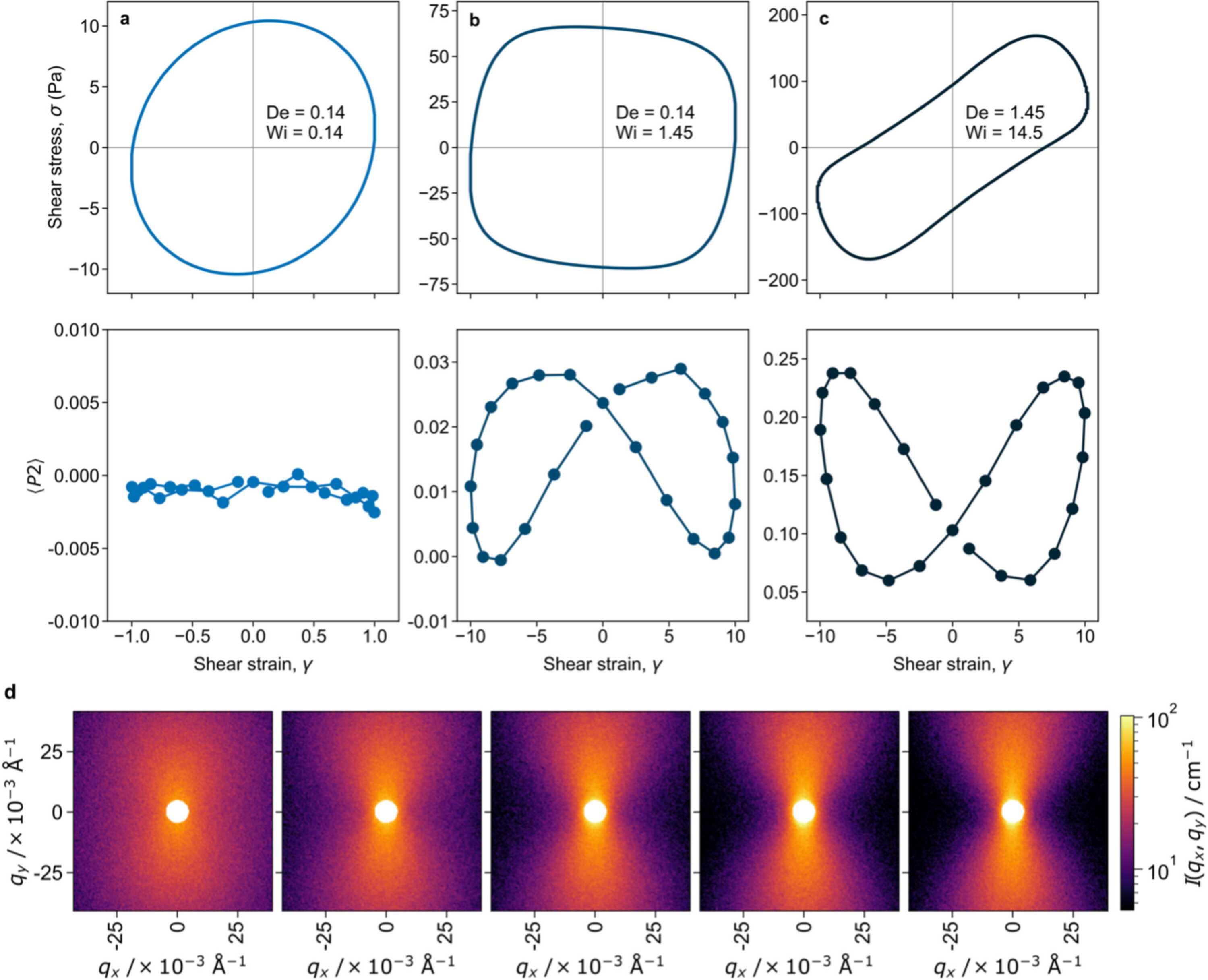

Figure 3
Time-resolved LAOS-SANS on a classical WLM material. (a–c) (Top) Elastic Lissajous–Bodwitch curves and (bottom) Hermans' orientation parameter, 〈P2〉, for various oscillatory shear conditions as indicated by the Deborah (De) and Weissenberg (Wi) numbers. (d) Representative scattering patterns for the results shown in (c). See Table 3

for the shear strain and angular frequencies corresponding to the dimensionless De and Wi numbers.
