Figure 1

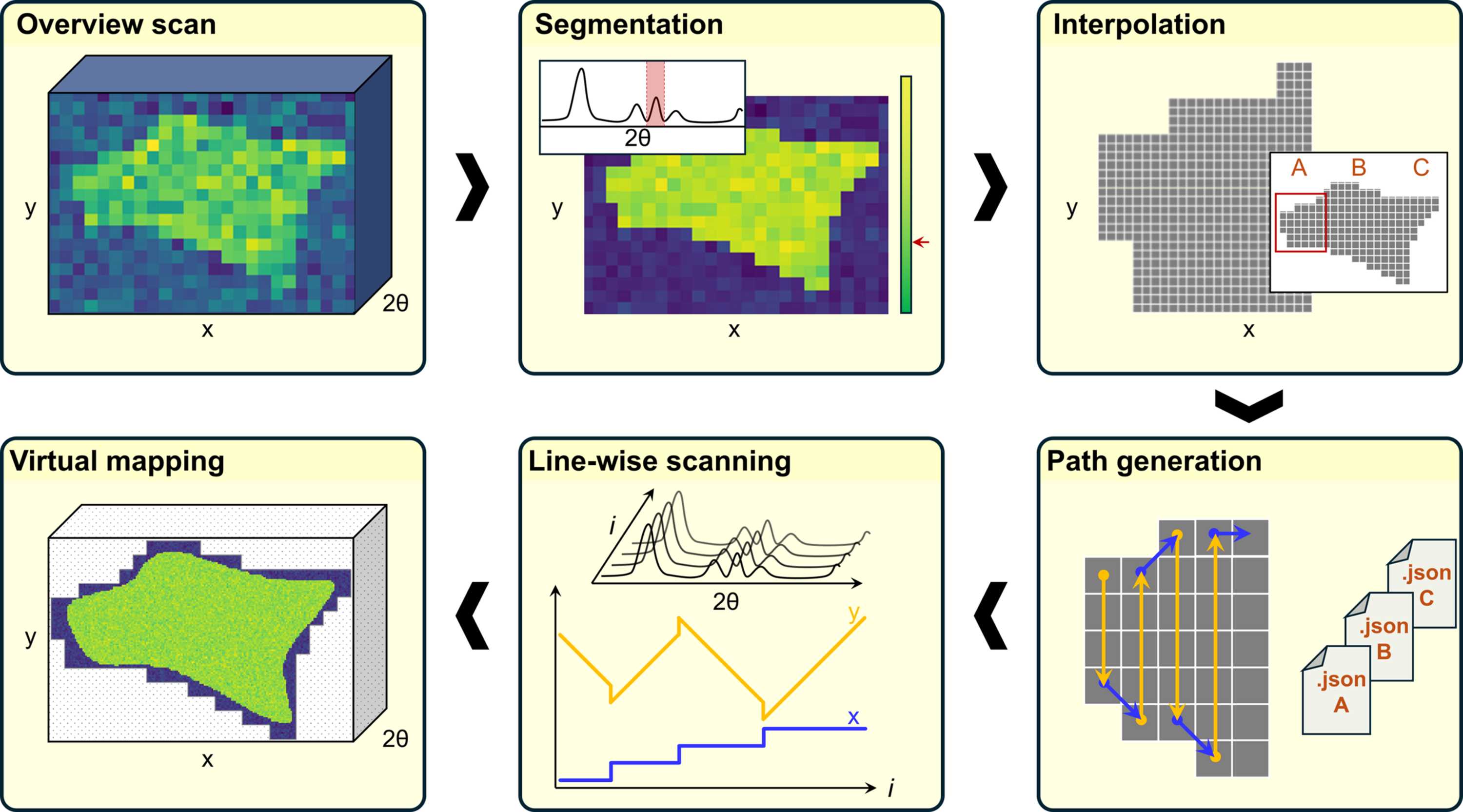

Flowchart of the line-wise scanning procedure for a scanning powder diffraction microscopy image. The following steps are involved: A low-spatial-resolution overview raster scan is measured. Data are reduced to a 2D image which is then subjected to threshold segmentation. This is followed by high-spatial-resolution interpolation and determination of start and end points for each line, and optional splitting into smaller subregions. Scan parameters for each subregion are saved to .json files. High-resolution measurements are conducted as a continuous-motion line-wise scan with synchronized detector and encoder readouts for each point. Finally, data are remapped to virtual HDF5 datasets for visualization.
