Development of a neutron texture analysis reduction pipeline in Mantid

Bridger, A.; Kockelmann, W.; Kelleher, J.; Morgano, M.; Waite, R.; Foxley, S.; Malamud, F.

doi:10.1107/S1600576726007661

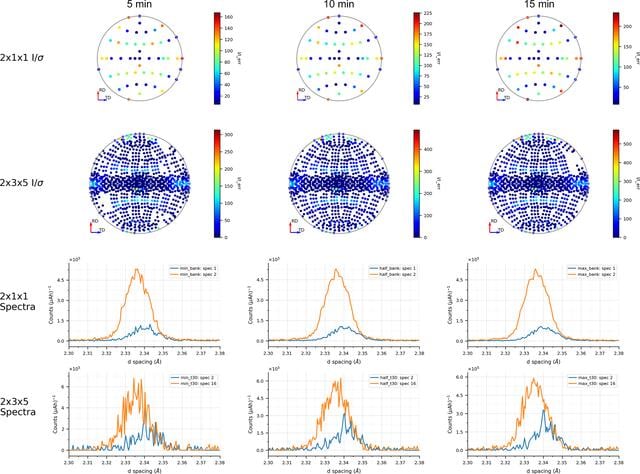

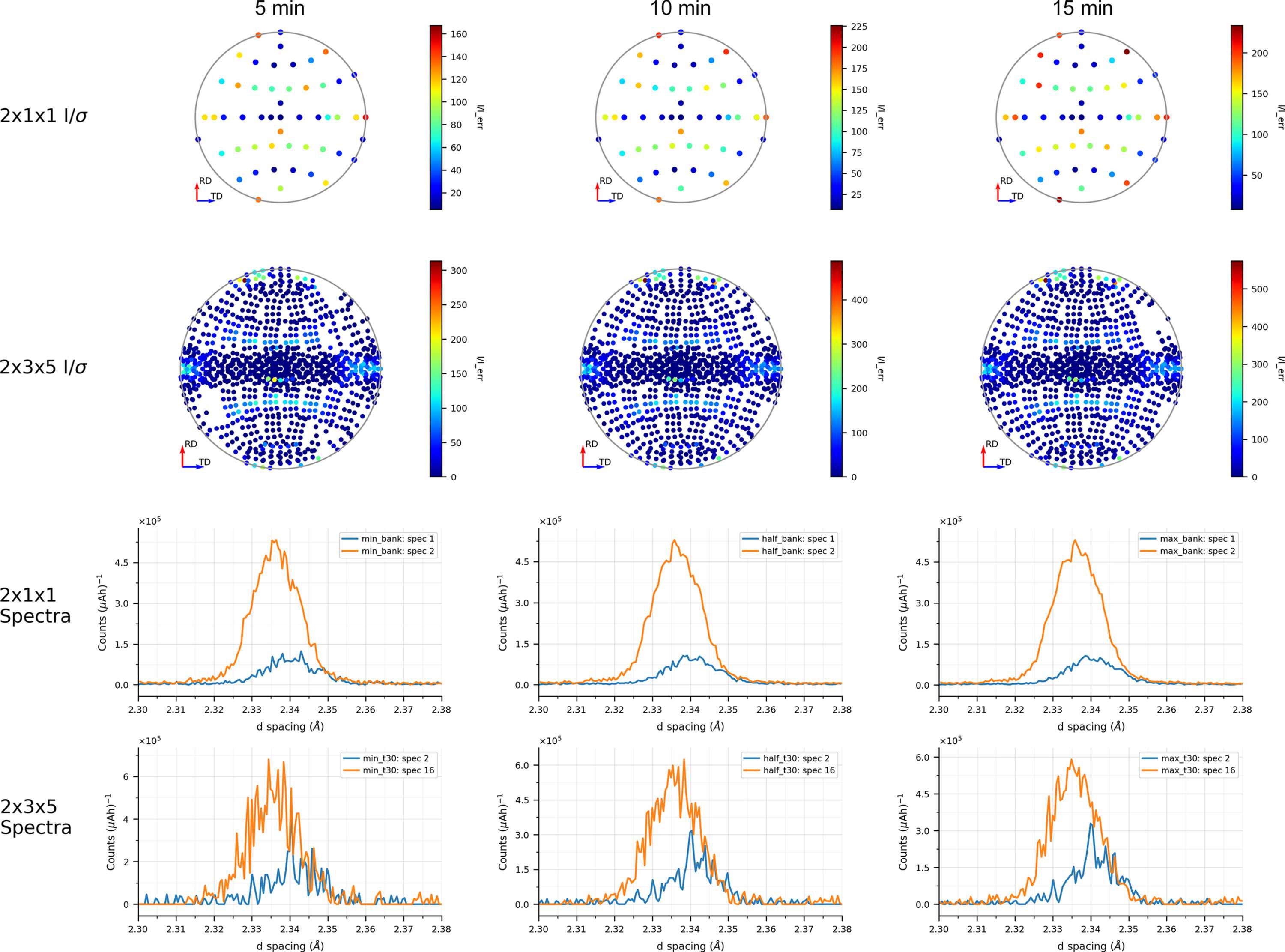

Figure 11
Effect of increasing acquisition time upon the quality of the resulting data. (Top) Fitted intensity divided by intensity error for the 2 × 1 × 1 and the 2 × 3 × 5 virtual detector griddings. (Bottom) Example spectra cropped around the (111) Bragg peak. For the 2 × 1 × 1 spectra both patterns are shown, while for the 2 × 3 × 5 spectra the second and sixteenth patterns are shown, as these detectors are on the fringe of the peak in the ODF, so show appreciable improvement from the increased acquisition time.

JOURNAL OF
APPLIED
CRYSTALLOGRAPHY

ISSN: 1600-5767

Volume 59| Part 5| October 2026| Pages 1595-1613

https://doi.org/10.1107/S1600576726007661

Open

access
