Development of a neutron texture analysis reduction pipeline in Mantid

Bridger, A.; Kockelmann, W.; Kelleher, J.; Morgano, M.; Waite, R.; Foxley, S.; Malamud, F.

doi:10.1107/S1600576726007661

Figure 6

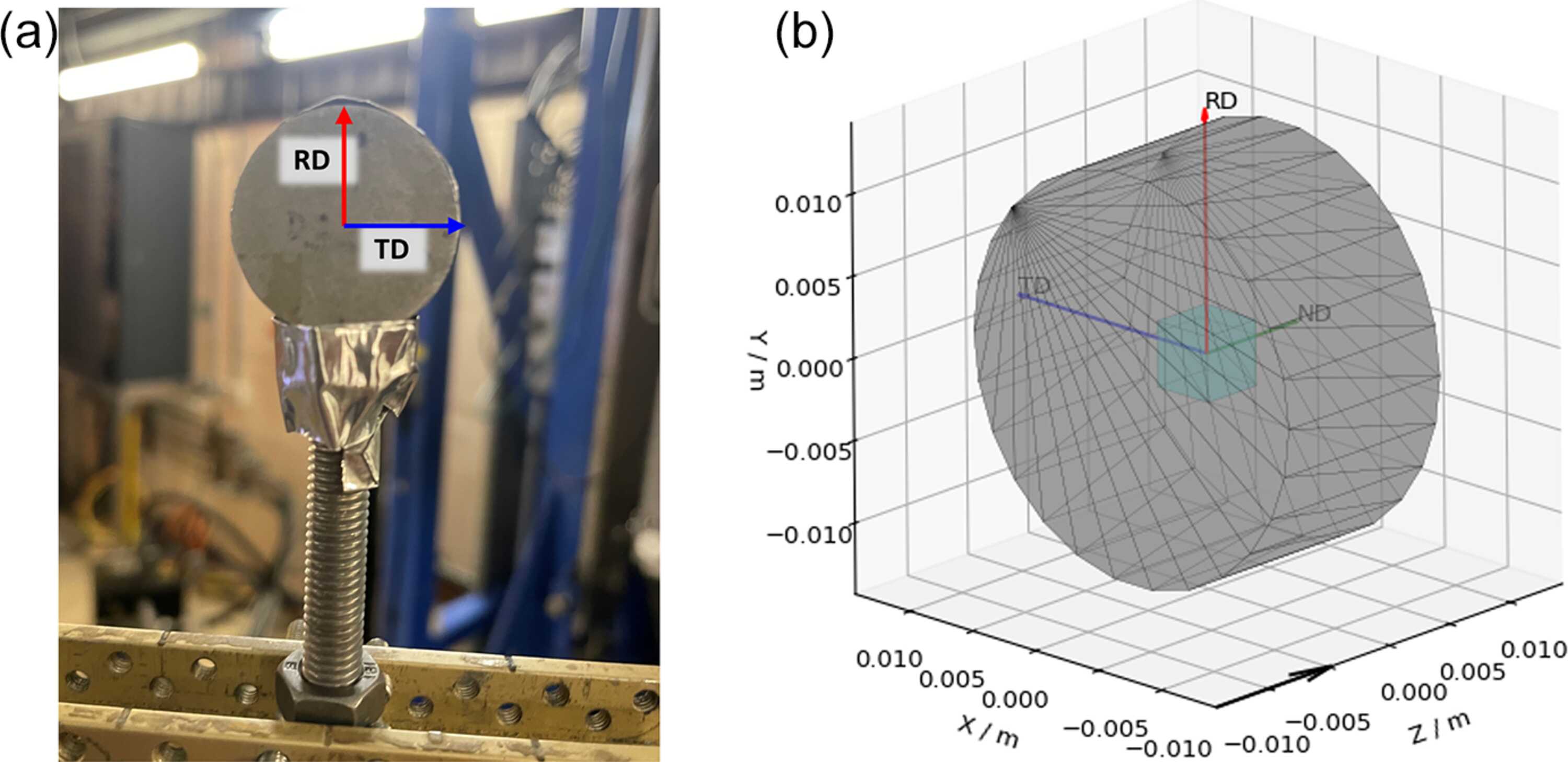

(a) A photograph of the sample mounted on the beamline. (b) A screenshot of the sample geometry, intrinsic directions and gauge volume defined within Mantid. The labels are RD (rolling direction) in red, ND (normal direction) in green and TD (transverse direction) in blue. These are standard sample directions for a rolled-sheet sample. The experimental gauge volume is shown in the Mantid screenshot as a light-blue cube, while the beam comes along the +z direction from a source at −z (shown by the black arrow on the z axis).
