Depth-resolved X-ray residual stress analysis on samples with cylindrically shaped surface topography

Klaus, M.; Apel, D.; Boin, M.; Wimpory, R.; Genzel, C.

doi:10.1107/S1600576726007302

Figure 18

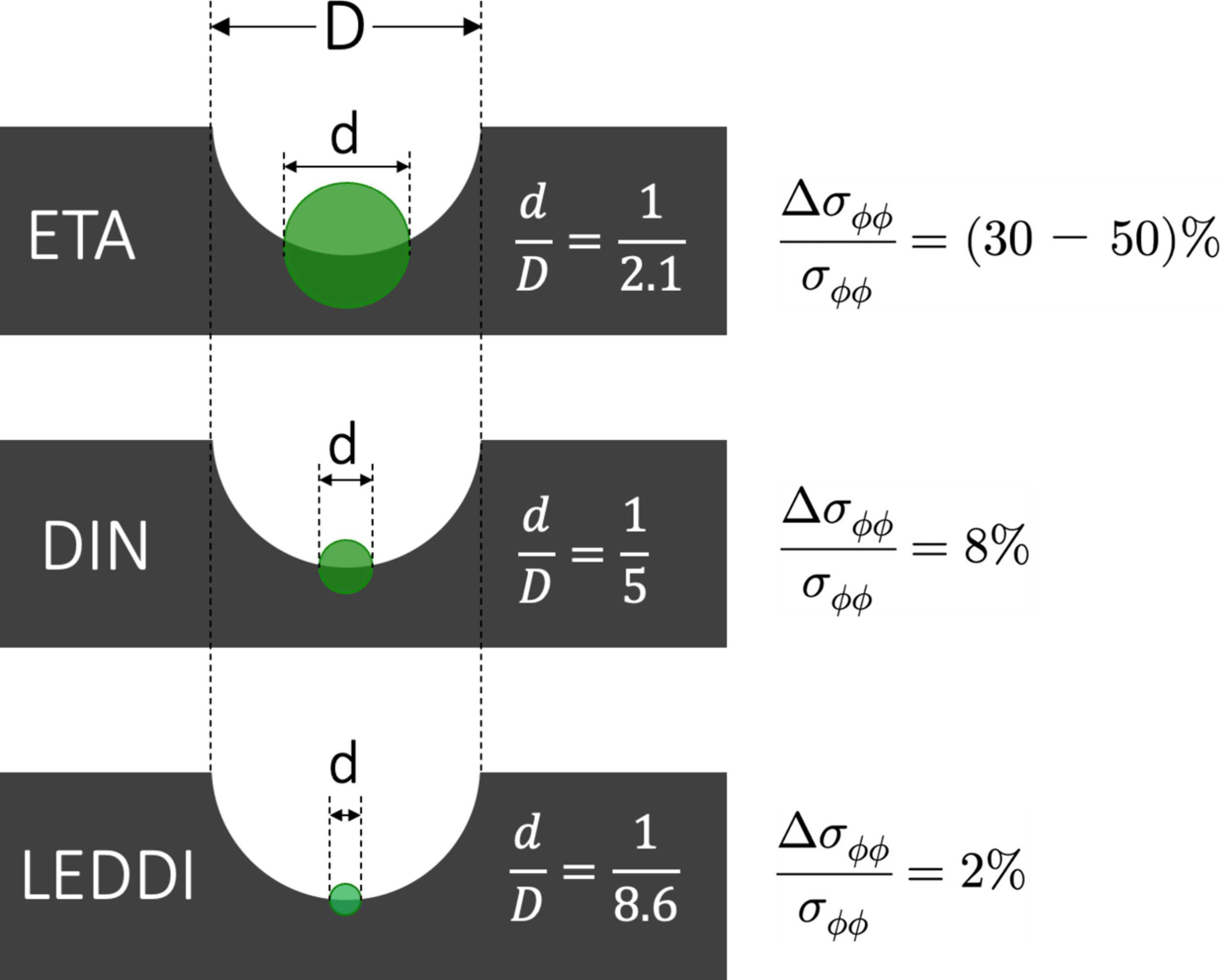

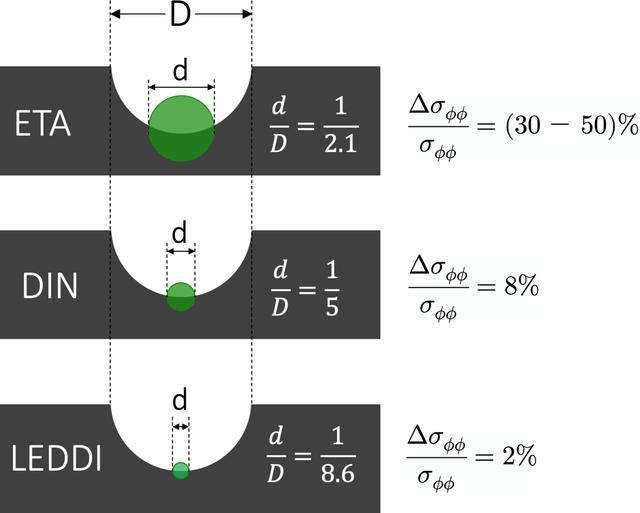

Relative errors of the hoop stress component according to equation (8) for different ratios d/D. The range specified for the AD measurements on the ETA diffractometer refers to the various central angles α_max = 90°–140° of the grooves D, C and B. DIN denotes the recommendation of the standard (DIN EN 15305:2008

/AC:2009

; https://dx.doi.org/10.31030/1425472). For further details see the main text.
