Depth-resolved X-ray residual stress analysis on samples with cylindrically shaped surface topography

Klaus, M.; Apel, D.; Boin, M.; Wimpory, R.; Genzel, C.

doi:10.1107/S1600576726007302

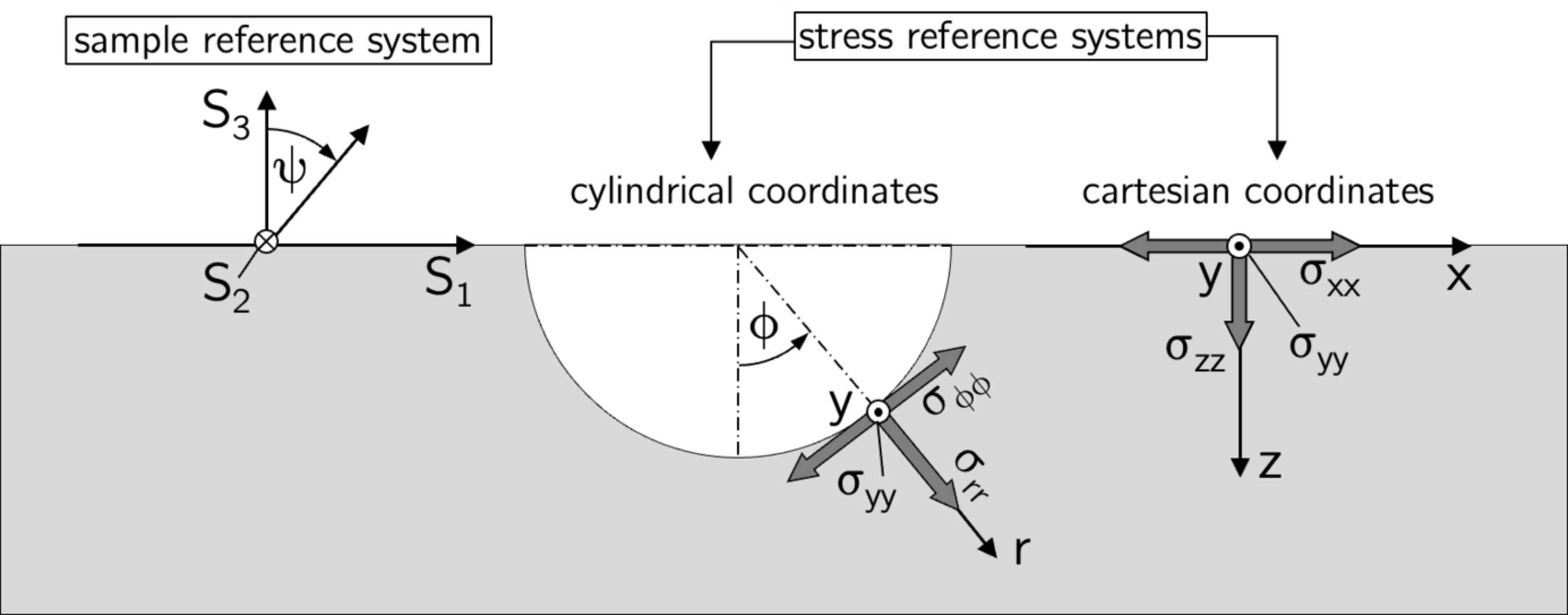

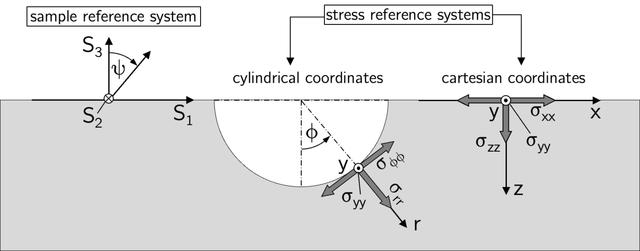

Figure 2
Reference systems for XSA on flat and curved surfaces. All coordinate systems are right handed. In the reference systems of the sample (stresses), the y axis points into (out of) the drawing plane. For the sake of clarity, only the normal components are shown in the stress reference systems.
