Figure 3

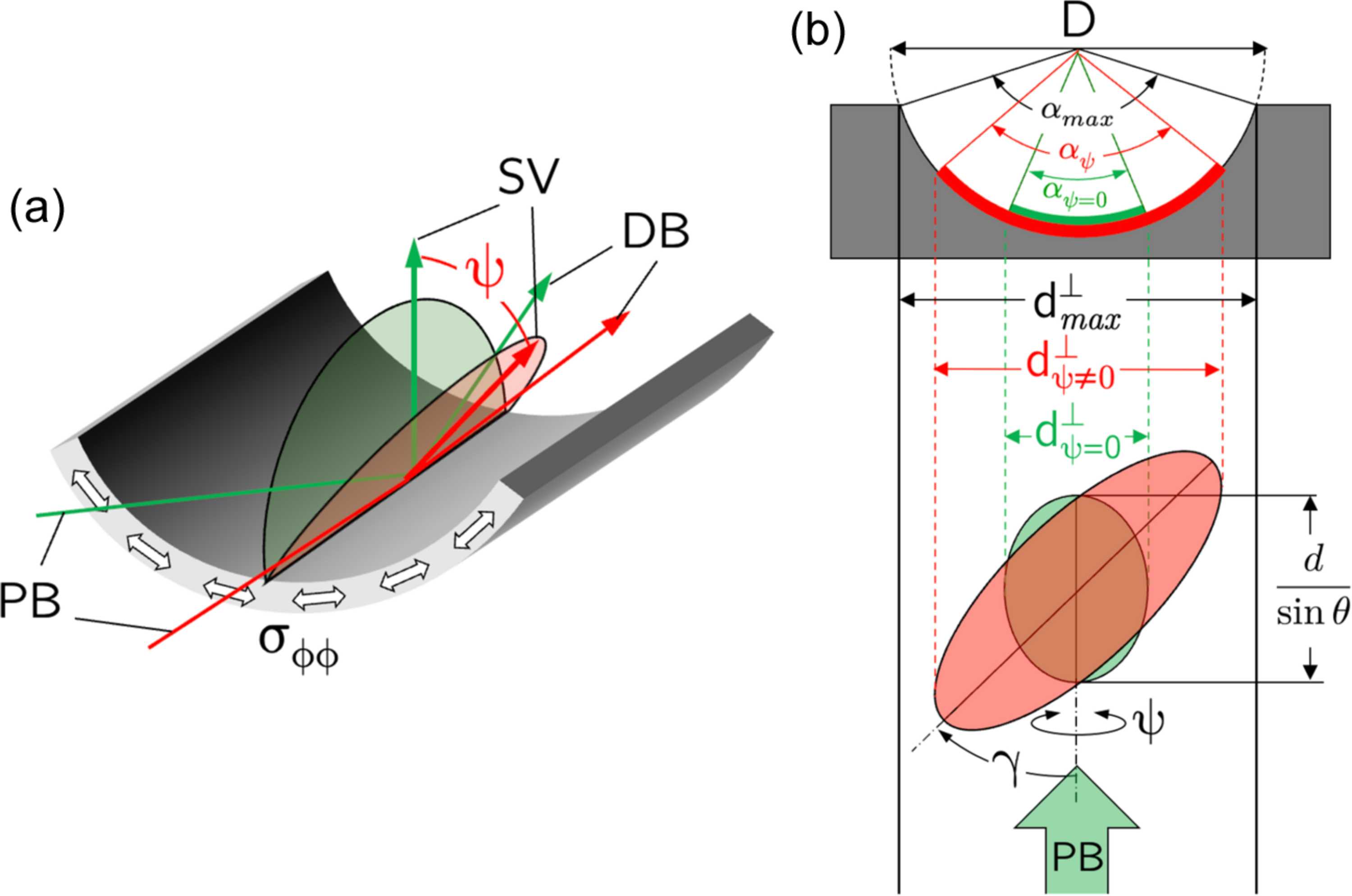

Evolution of the irradiated surface area during hoop stress analysis. (a) Orientation of the diffraction plane within the groove for the initial (green) and tilted (red) sample positions. (b) The corresponding illuminated surface areas. PB, DB and SV denote the primary beam, the diffracted beam and the scattering vector, respectively.
