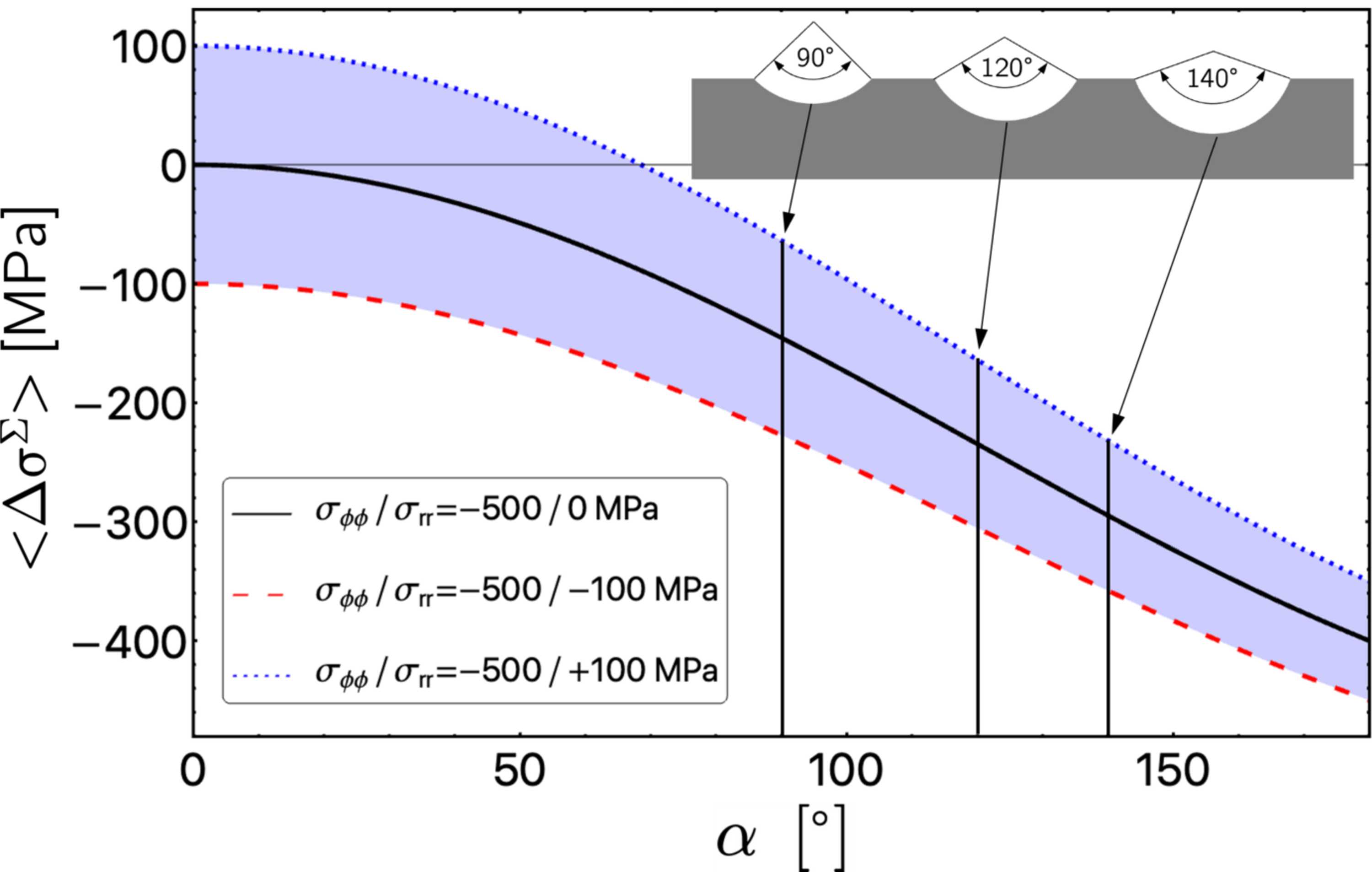

Figure 6
Impact of the stress components σϕϕ and σrr on XSA of the longitudinal stress component σyy according to equations (10) and (11) (simulation). The black solid line represents the case of negligible radial stress σrr in the accessible information depth. The dashed red line and the dotted blue line indicate the influence of certain amounts of σrr featuring opposite signs.

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 59| Part 5| October 2026|
https://doi.org/10.1107/S1600576726007302
