DISCO: a general software tool for dislocation contrast factor calculations in diffraction analysis

Malagutti, M.A.; D'Incau, M.; Scardi, P.

doi:10.1107/S1600576726007053

Figure 6

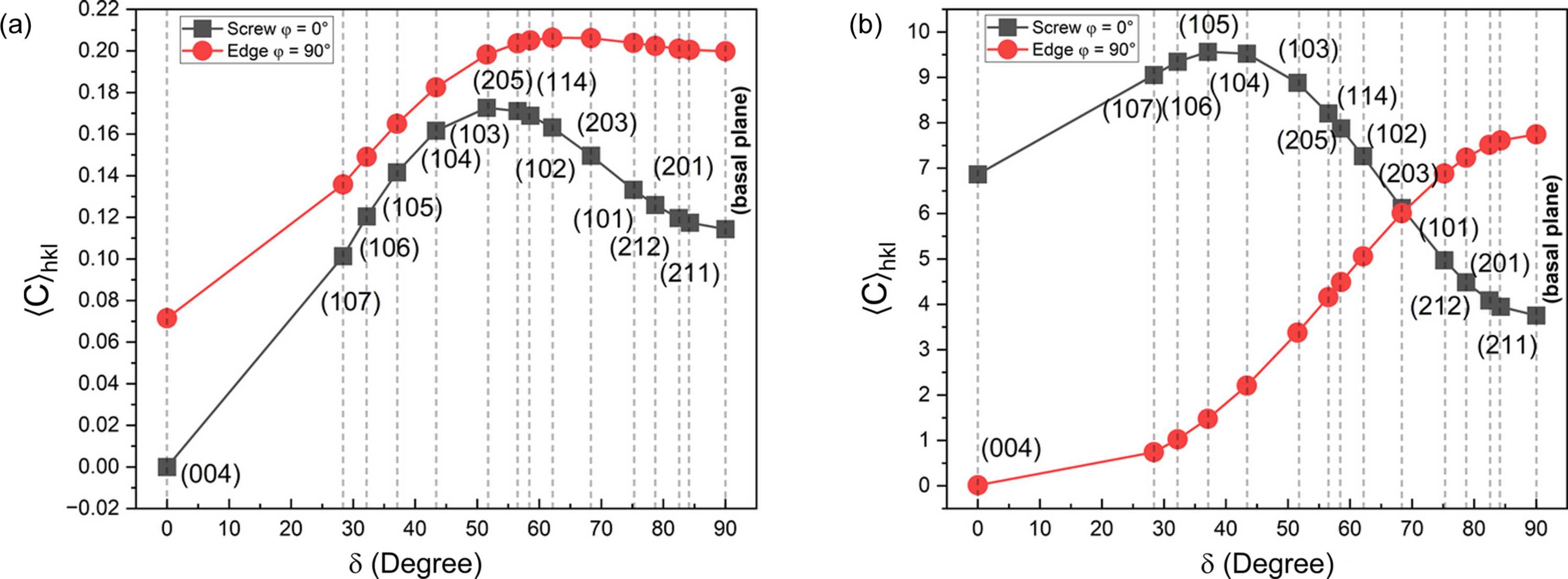

〈C〉_hkl versus δ, defined as the angle between the c axis and d^*, for screw (φ = 0°) and edge (φ = 90°) dislocations in hexagonal 4H-SiC. (a) The $[\langle 1 1 {\overline 2} 0 \rangle \{ 0 0 0 1 \}]$ basal slip system. (b) The $[\langle 1 1 {\overline 2} 0 \rangle \{ 1 0 {\overline 1} 0 \}]$ prismatic slip system. Individual reflections are marked by dashed vertical lines.
