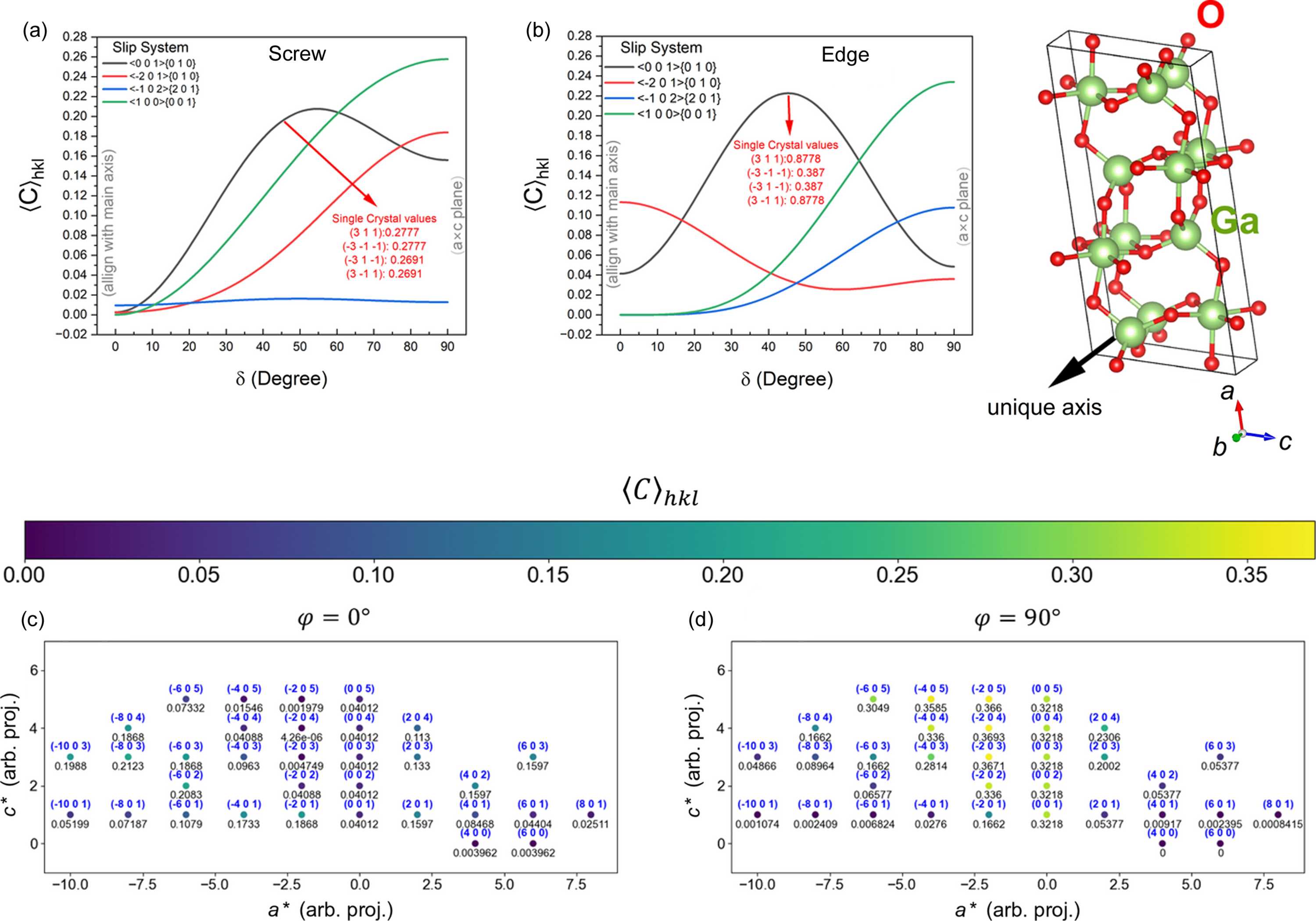

Figure 7
(a) Orientation dependence of the average contrast factor for screw dislocations in β-Ga2O3, shown as a function of the angle δ for several crystallographically distinct slip systems. (b) The same representation for edge dislocations, highlighting the strong anisotropy of 〈C〉hkl and the corresponding single-crystal values. The crystal structure is shown on the right, indicating the monoclinic unit cell and the unique b axis. (c) and (d) Reciprocal-space maps of 〈C〉hkl for φ = 0° (screw) and φ = 90° (edge), respectively, restricted to reflections with δ = 90°, i.e. scattering vectors lying in the a*c* plane. Only reflections associated with the 〈001〉{010} slip system are shown, with the colour scale representing the magnitude of the average contrast factor 〈C〉hkl.
