Deterministic segmentation of grains in dense Laue microdiffraction datasets

Bongiorno, S.; Micha, J.-S.; Tardif, S.; Eymery, J.

doi:10.1107/S1600576726007995

Figure 8

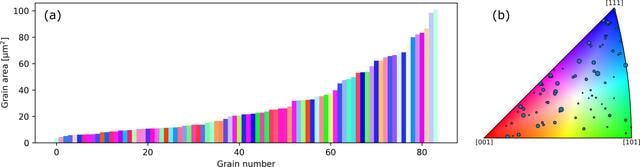

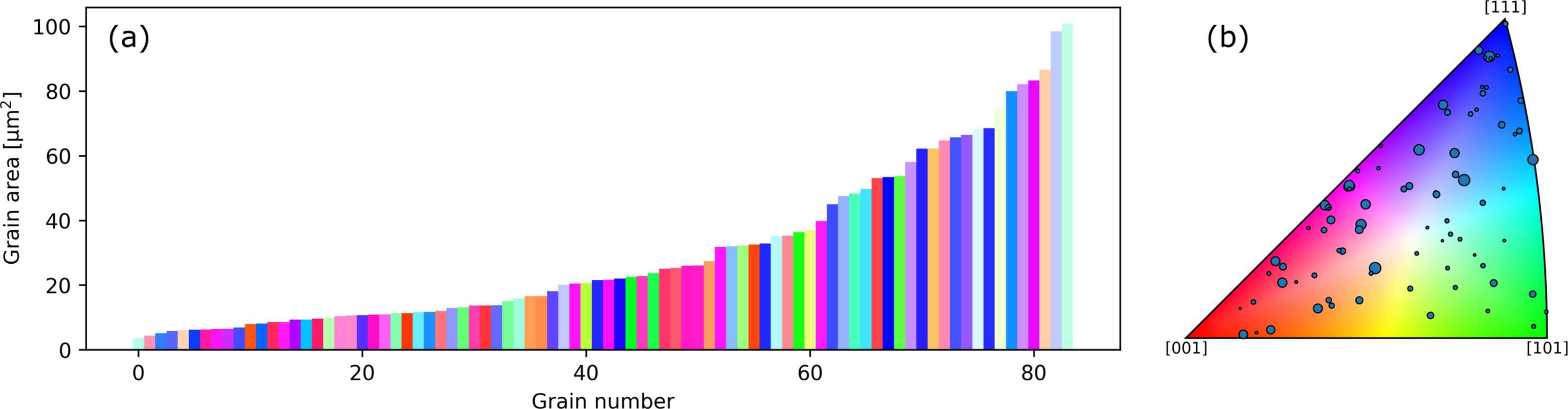

Statistical analysis of the grains. (a) Bar plot of the grain sizes for the 84 segmented grains. (b) IPF map of the grain orientations with respect to the direction normal to the sample surface. Colors in the bar plot (a) reproduce the IPF key in (b) and marker sizes reflect relative grain sizes.
