Figure 5

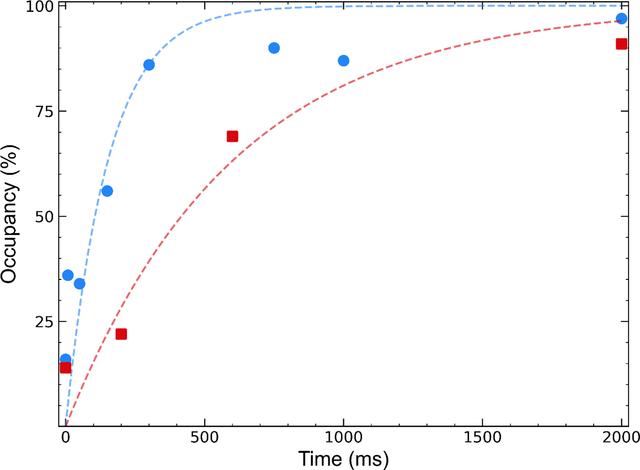

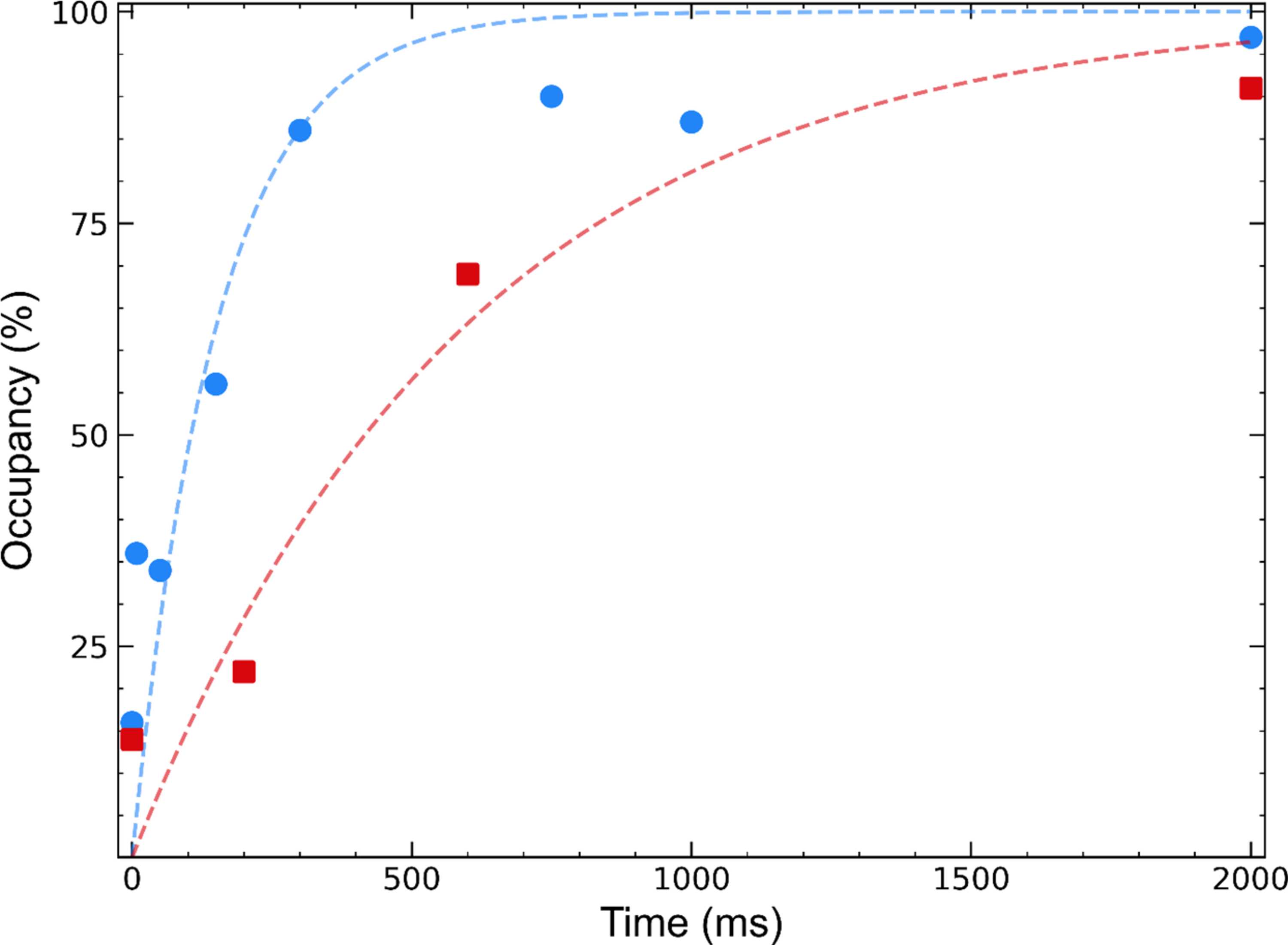

Comparison of refined occupancies of NAG1 in tetragonal lysozyme crystals obtained in the present mix-and-quench TR-X experiment (blue circles; Fig. 4[link]) with those obtained in a previous drop-on-drop room-temperature serial crystallography experiment (Butryn et al., 2021BB8; red squares). Dotted lines represent simple exponential fits constrained to pass through 0% occupancy at t = 0 and 100% occupancy as t → ∞. The time constants are 152 ms (blue) and 602 ms (red). Nonzero occupancy at t = 0 is likely due to overlap of unmodelled atoms with the ligand position.
