Figure 5

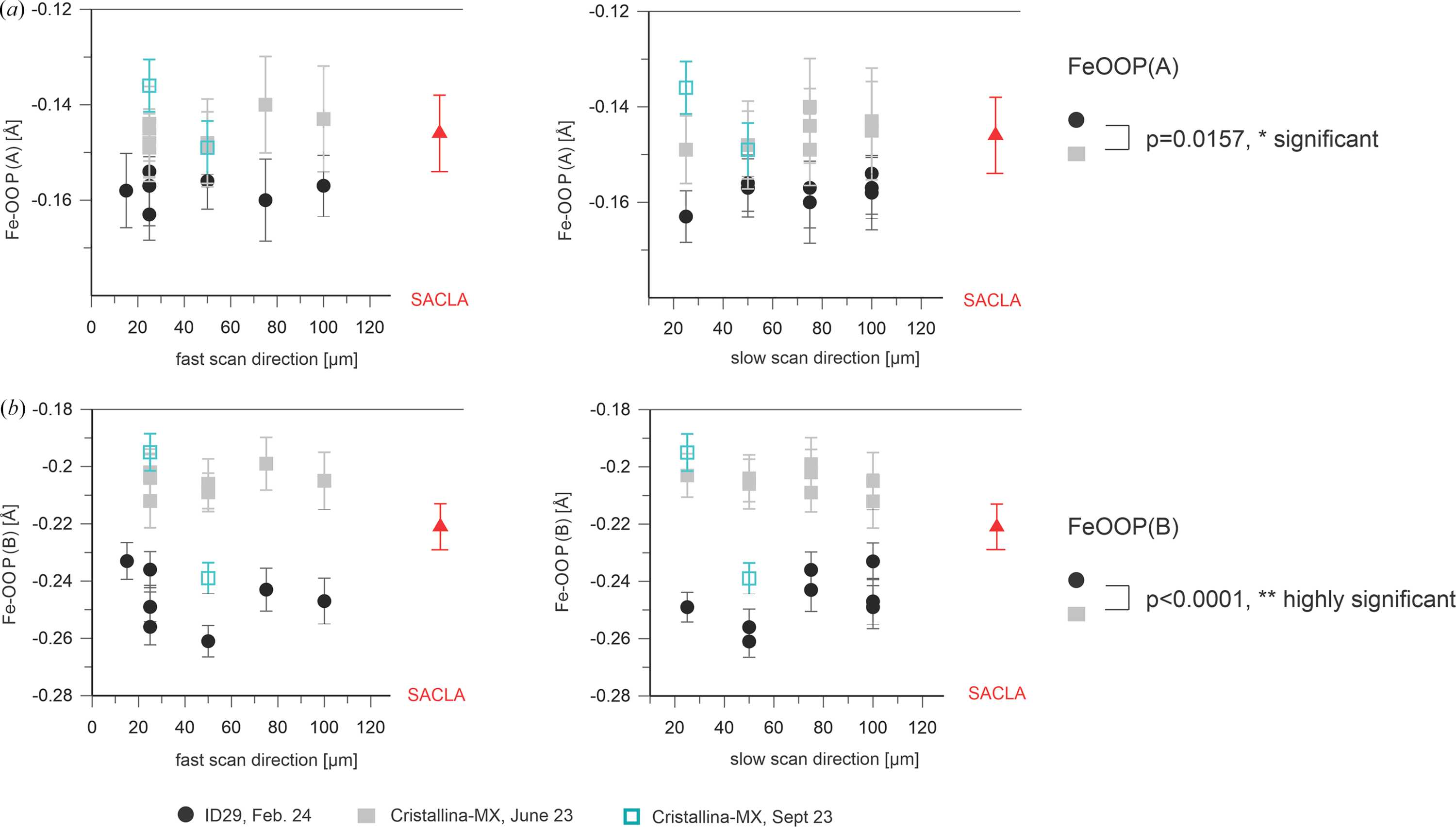

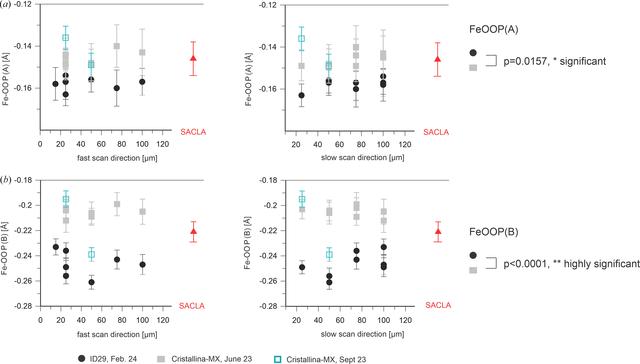

Iron-out-of-plane distance [A and B molecules are shown in (a) and (b), respectively] as a function of the step size within a scan line (left) and between scan lines (right). ID29 data are shown in black (February 2024); Cristallina-MX data are depicted in gray (June 2023) and blue (September 2023). The SACLA data (red) show the results of the data collected by Ebrahim et al. (2019View full citation) after being reprocessed in this study. Error bars were derived by bootstrapping. The plotted values are listed in Supplementary Table S3. The FeOOP distance is larger for the ID29-derived structures (black filled circles) than for those obtained from the Cristallina-MX data (gray filled squares, blue squares). The effect is larger for the B molecule.
