Figure 4

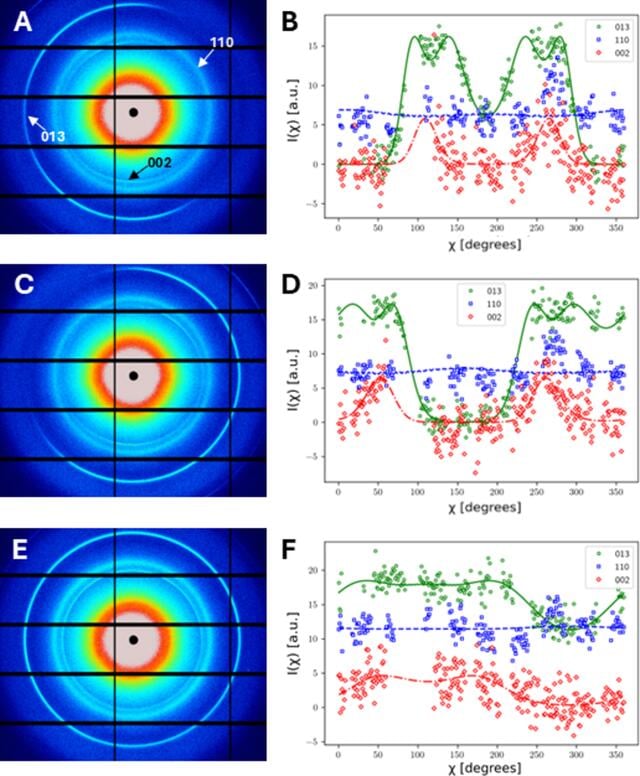

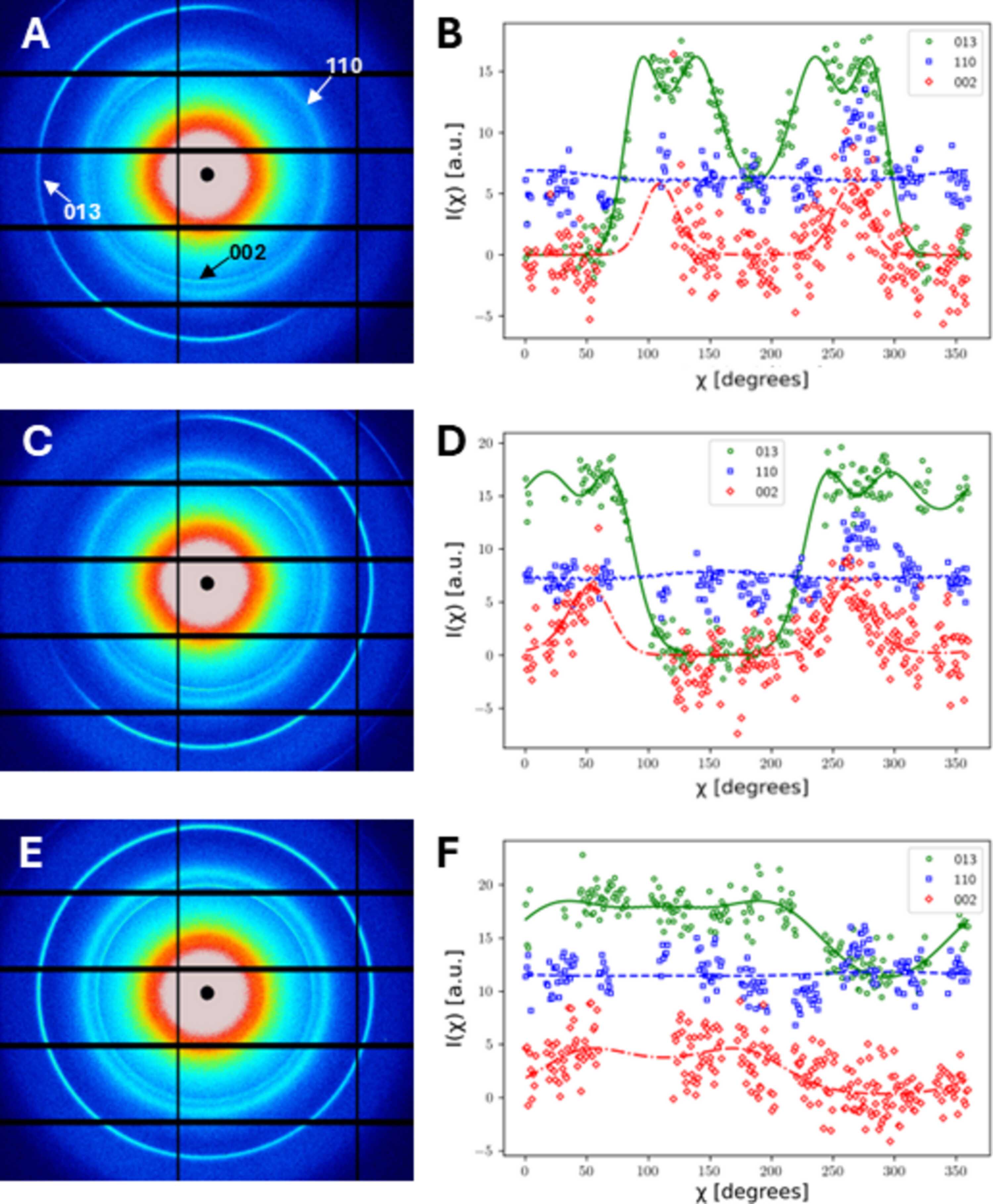

Experimental data and model fits from cuticle samples in the L1 geometry. (Left) Experimentally recorded X-ray patterns from three samples. The (002), (110) and (013) reflections from chitin fibres are indicated by arrows in panel (a). (Right) Azimuthal intensity profiles I(χ) of the three reflections. Panels (a) and (b) show data for sample S01, panels (c) and (d) for sample S02 and panels (e) and (f) for sample S03. The colour coding is as follows: axial reflection 002, red; equatorial reflection 110, blue; 013, example of the general case, green. Open circles, squares and diamonds are experimental data and solid lines are the model fits.
