Figure 3

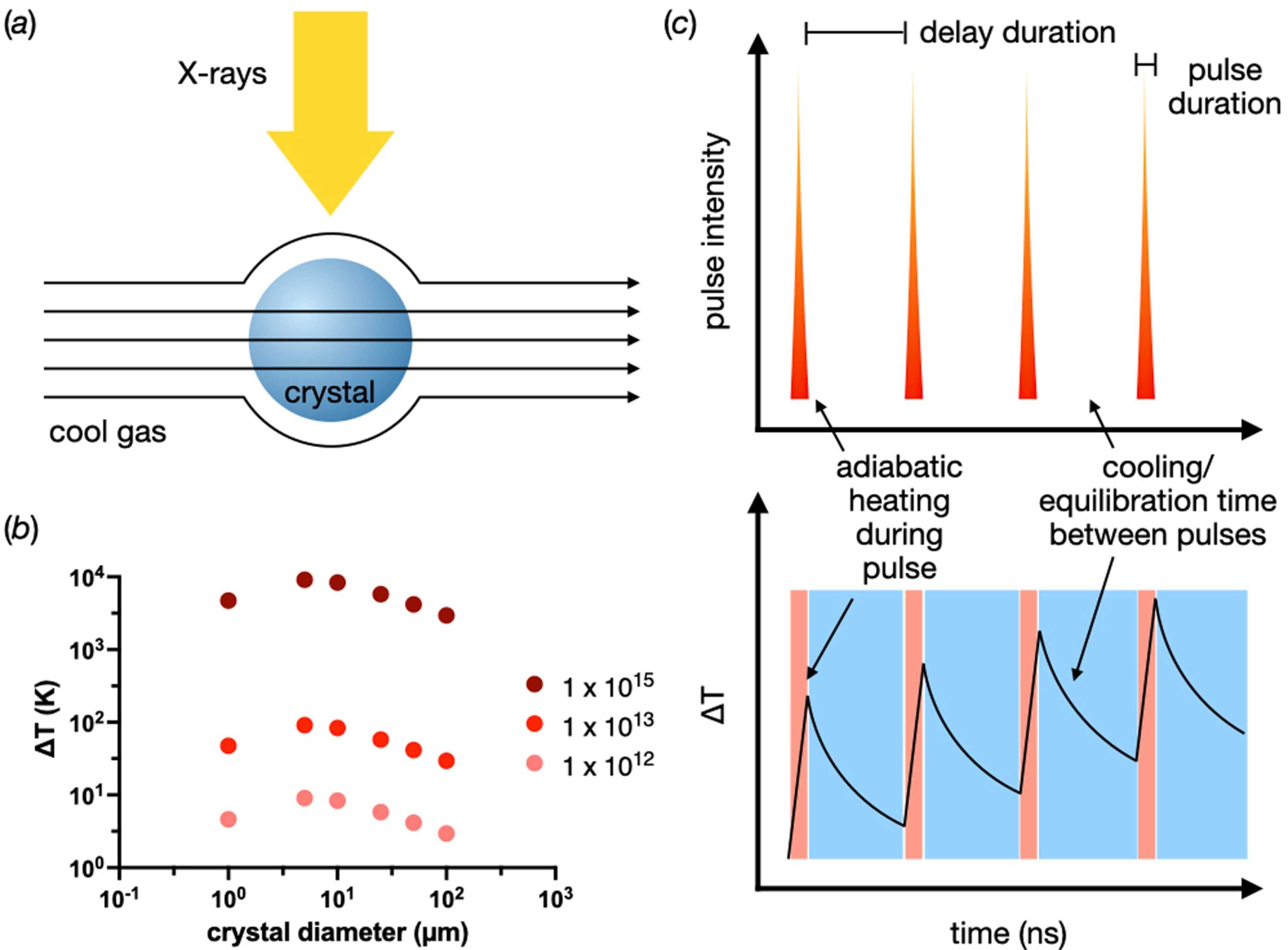

KKT equilibrium and pulsed adiabatic decay (PAD) models. (a) Assumption of KKT and PAD models. The crystal is a sphere freely floating in gas flowing around the crystals. (b) Thermal equilibria estimated using the KKT model as a function of crystal diameter and flux. (c) Idea behind the PAD model. Pure adiabatic heating during the X-ray pulses with cooling, or relaxation time, between pulses.
