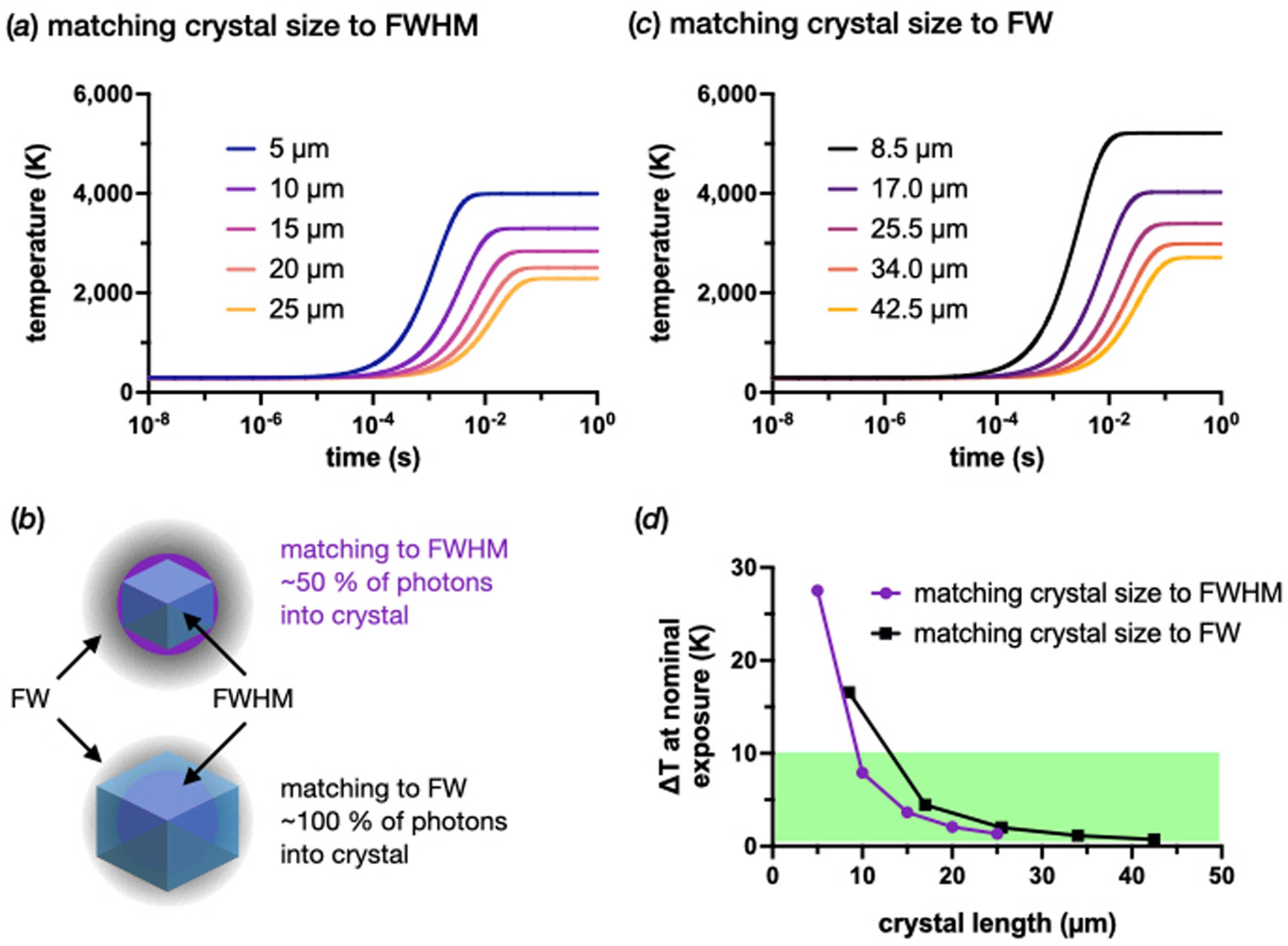

PAD modelling of cuboid haemoglobin crystals on MicroMAX. (a) Thermal equilibria at different crystal sizes where the crystal size has been matched to the beam FWHM. (b) A to-scale schematic showing the difference between matching the crystal size to the FW or the FWHM. (c) Thermal equilibria at different crystal sizes where the crystal size has been matched to the beam FW. (d) Comparison of the ΔT of the crystal after a 10 µs exposure where either the beam FW or the FWHM matches the crystal size.
