Figure 3

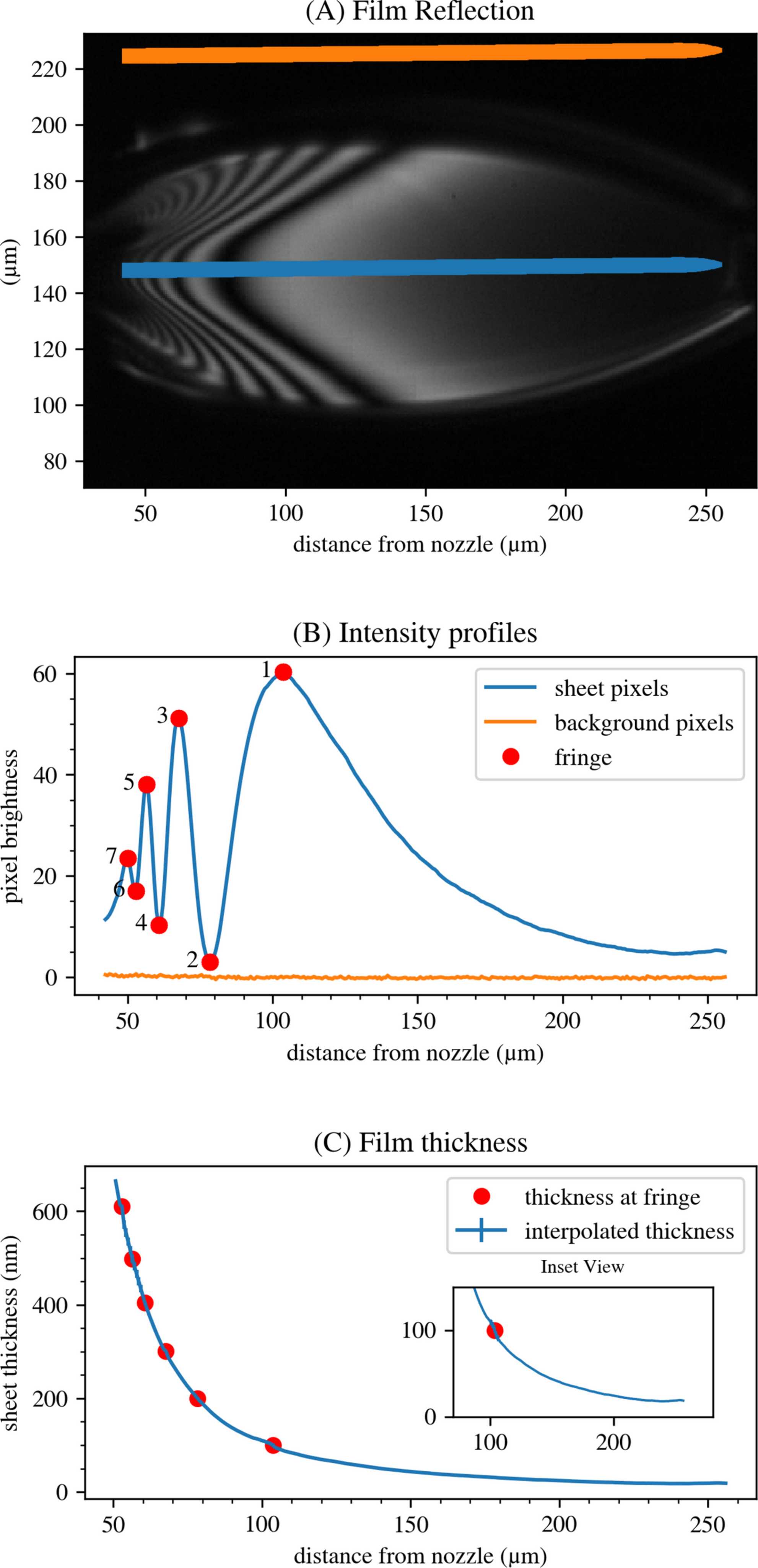

Measurement of the sheet thickness from the thin-film interference fringe pattern. (A) Image of a sheet reflecting diffused monochromatic light with the areas used to define the centerline and background marked in blue and orange, respectively. (B) Pixel brightness and background as a function of the distance to the nozzle. Local extrema representing light and dark fringes are marked in red. (C) Thickness derived from the brightness measurement.
